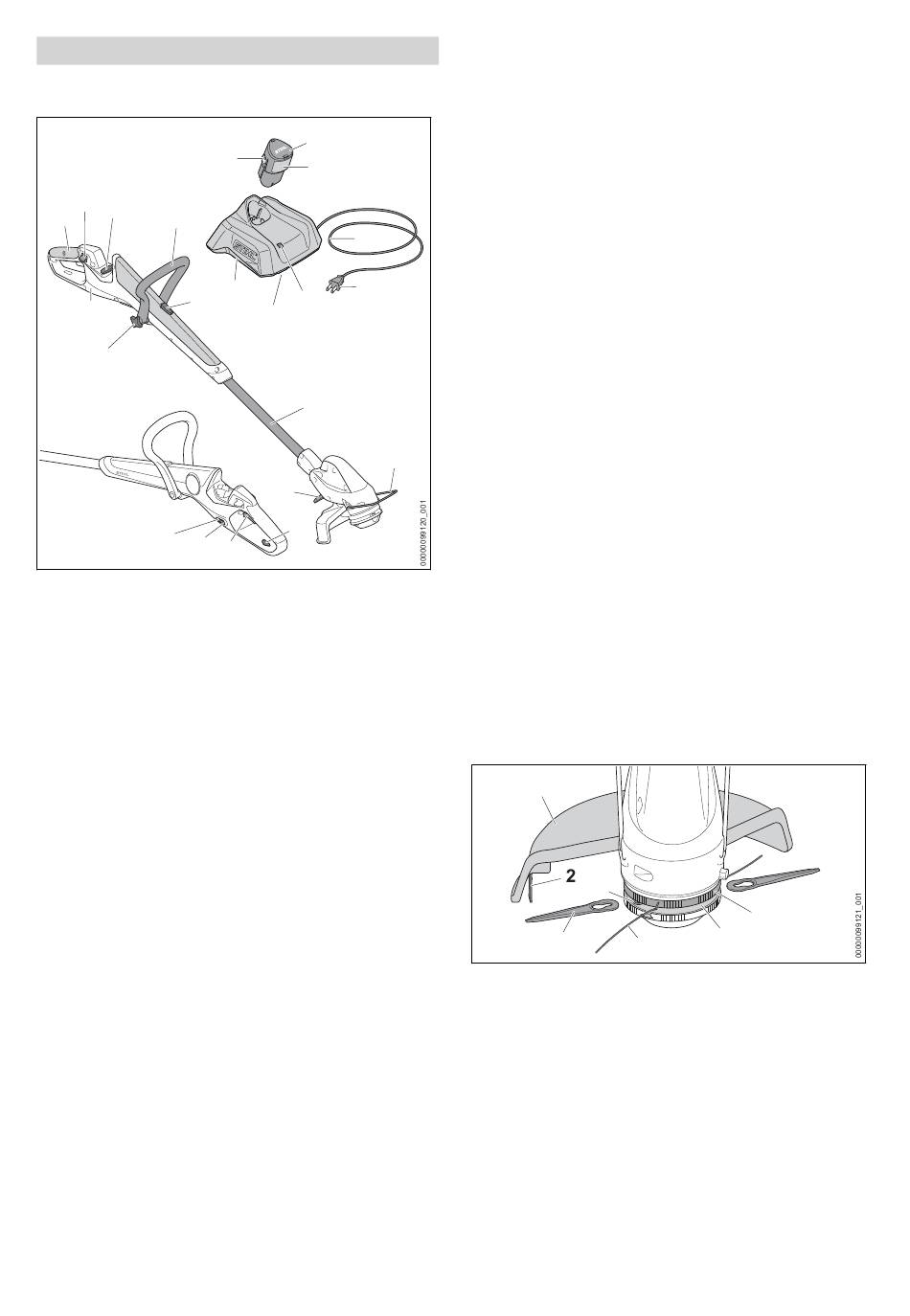

3 Main Parts
3
Main Parts
3.1
Trimmer, Battery and Charger
2 3
1
4
5
#
9
10
11
1 Control Handle
Handle for the operator's rear hand.
2 Trigger Switch Lockout
Prevents activation of the trigger switch until
depressed.
3 Battery Compartment
Holds the battery.
4 Loop Handle
Handle for the operator's front hand.
5 Drive Tube Release Button
Unlocks the drive tube to allow length adjust‐
ment and conversion for edging.
6 Drive Tube
Trimmer shaft.
7 Bump Guard
Limits the cutting range of the mowing line
and helps regulate cutting depth during edg‐
ing.
8 Trimmer Head Adjustment Latch
Allows the angle of the trimmer head to be
adjusted for edging.
9 Star Knob
Tightens the loop handle in position.
10 Trimmer LEDs
Indicate the battery's state of charge and dis‐
play error messages regarding potential mal‐
functions in the power tool or battery.
0458-039-8201-A
18
19
#
15
14
17
16
#
6
8
13
12
11 Push Button
Activates the trimmer's LEDs.
12 Trigger Switch
Activates the cutting attachment when
depressed.
13 Hanging Slot
The built-in hanging slot allows for easy stor‐
age when not in use.
14 Plug
Connects the power supply cord to an electri‐
cal outlet.
15 Power Supply Cord
Supplies the charger with electricity when
plugged into an electrical outlet.
16 Charger LED
Indicates the operating status of the charger.
17 Charger
7
Charges the battery.
18 Battery
Supplies electrical power to the motor.
19 Locking Lever
Secures the battery in the battery compart‐
ment.
# Rating Plate
Contains electrical information and the pro‐
duct's serial number.
3.2
Mowing Head, Cutting Attach‐
ments and Deflector
1
3
1 Deflector
Designed to reduce the risk of injury from
thrown objects and contact with the cutting
attachment.
2 Line Limiting Blade
Metal blade on the deflector that trims the
nylon mowing line to the proper length.
3 Polymer Blade
Rigid cutting attachment for trimming grass
and similar material.
4
7
6
5
English
3
