S+S Regeltechnik HYGRASGARD VFTF-Modbus-T3 Notice D'instruction page 8

G U
HYGRASGARD

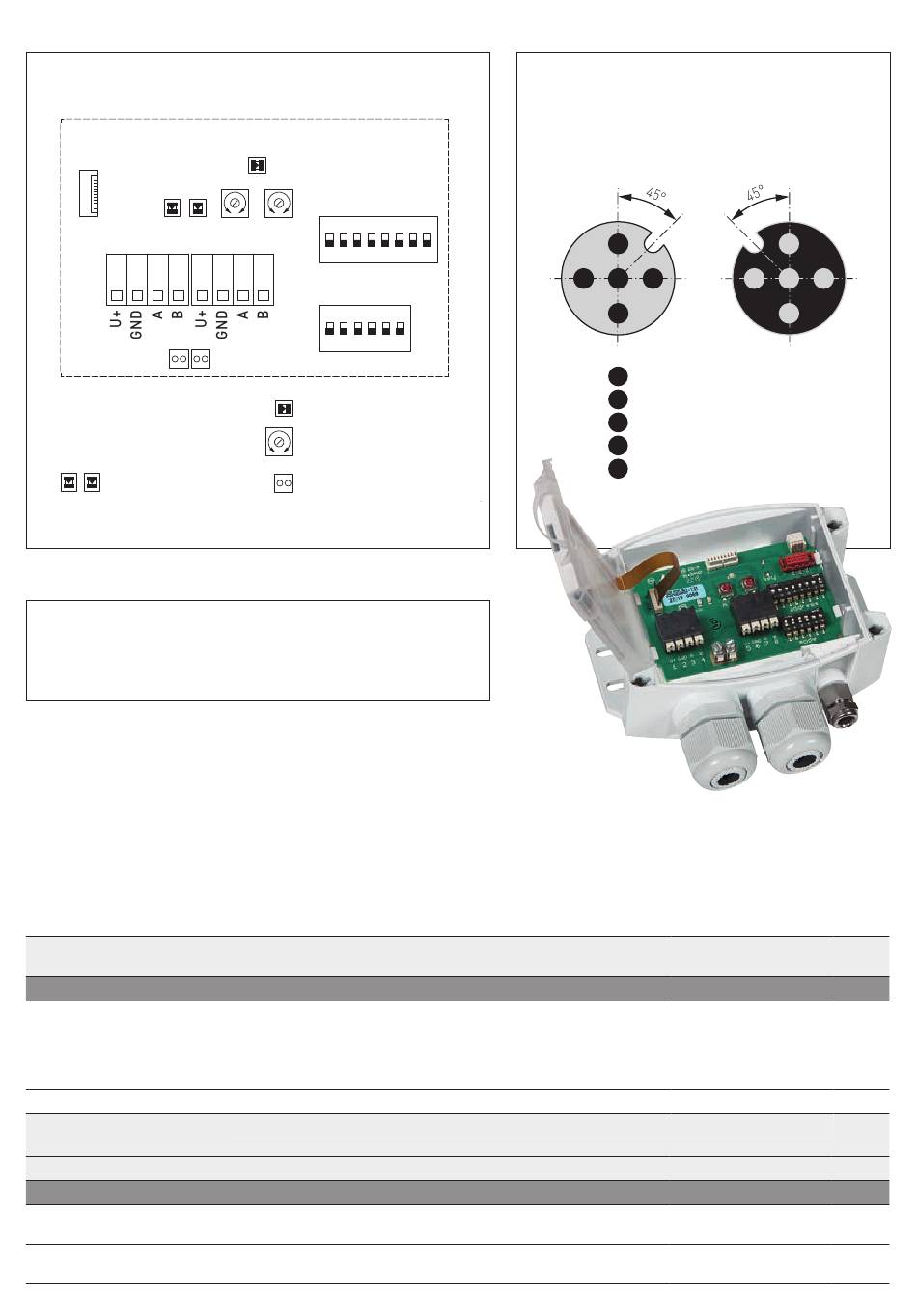

Schematic diagram
Plug for
display
1 2 3 4 5 6 7 8
SHD
DIP A: Bus address
DIP B: Bus parameters
(Baud rate, parity...)
Telegram indicator
Reception (LED green)
Error (LED red)
Manual offset adjustment
The sensors are pre-set and calibrated at the factory.
For subsequent adjustment of the measured value,
there are two offset potentiometers (A and B) available.
Range of adjustment approx. ± 5 °C ⁄ ± 9 °F (A) or ± 10 % RH (B).
Type ⁄ WG01
VFTF - Modbus - T3
V F T F - M o d b u s -T 3
V F T F - M o d b u s -T 3 LCD
Extra charge:
Note:
ACCESSORIES
KA2 -Modbus
LA -Modbus
®
VFTF - Modbus-T3
HYGRASGARD
ON
A offset B
1 2 3 4 5 6 7 8
address
ON
DIP B
1 2 3 4 5 6
mode
SHD
LED (internal status)
Offset correction
Shielding
Measuring Range ⁄ Readout
Humidity (switchable)
0...100 % RH (default)
0...80 g ⁄ kg (MV)
3
0...80 g ⁄ m (AH)
0...85 kJ ⁄ kg (ENT.)
0...+50 °C (DP)
(5 x as above)
cable length (KL = approx. 2 m / 6.6 ft ), other lengths optional
Cable connection with M12 connector according to DIN EN 61076-2-101
System of units SI (default) or imperial (can be changed via Modbus).
Communication adapter (with USB and RS485 interface)
for system connection (incl. quick-start software)
Line termination device (with terminating resistor)
as an active bus termination of RS485 networks
® Pin assignment
xx - Modbus - T3
(M12)
DIP A
Output
Temperature
–35...+80 °C / Modbus
–31...+176 °F
(1 x as above) Modbus
8
MALE
2
3 5 1
4
1
+UB
2
Modbus A
3
–UB GND
4
Modbus B
5
Shield
Item no.
Display
1201- 6256- 1000- 000
■ 1201-6256- 1400- 000
190 6-1200- 0000- 100
190 6-1300- 0000- 100
Rev. Data - V40
®
HYGRASGARD
xx - Modbus - T3
FEMALE
2
1 5 3
4
on request
on request
