V1.0

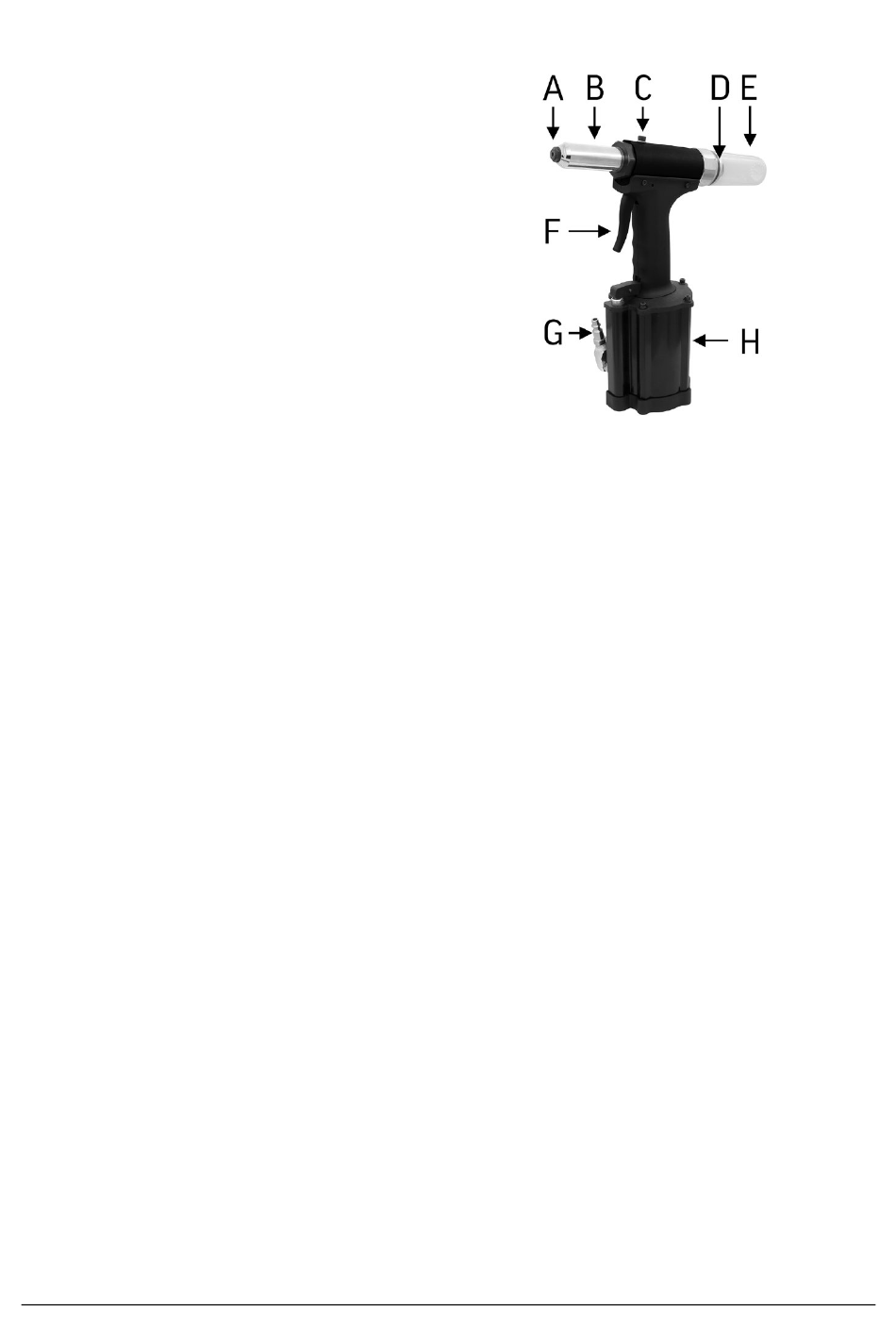

IDENTIFICATION KEY
A Nosepiece
B Outer Sleeve
C Oil Screw
D Suction Knob
E Safety Cap
F Trigger
G Air Inlet
H Air Cylinder
ASSEMBLY & INSTALLATION
Numbered references in parenthesis (#1) refer to the included Parts List.
Letter references in parenthesis (A) refer to the included Identification
Key. Dashed numbers in parenthesis (Fig. 1-1) refer to a specific point
in an illustration or image.
INSTALL AIR CONNECTOR
1. The riveter's air inlet has a factory installed male coupler. Connect
the air hose to the coupler.
2. Run the compressor at a low volume and check the connection for
air leaks. Do not use the tool until all air leaks are repaired or the
faulty component is replaced.
IMPORTANT! Vibration may cause failure if a quick coupler is
connected directly to the air tool. To overcome this, connect a
leader hose to the tool. A quick coupler may then be used to
connect the leader hose to the air line hose.
FILL THE HYDRAULIC OIL CYLINDER
Check and fill the riveter's oil cylinder (#46) with hydraulic oil before
each use.
1. Disconnect the air hose from the riveter.
2. Remove the screw (C) and gasket (#47) on top of the oil cylinder.
3. Fill the syringe (Fig. 2-1) with hydraulic oil.
4. Screw the brass fitting of the syringe into the hole on top of the oil
cylinder (Fig. 2-2).
Visit www.princessauto.com for more information
1/4 in. Air Riveter 8843740
Fig. 1
7
