EN

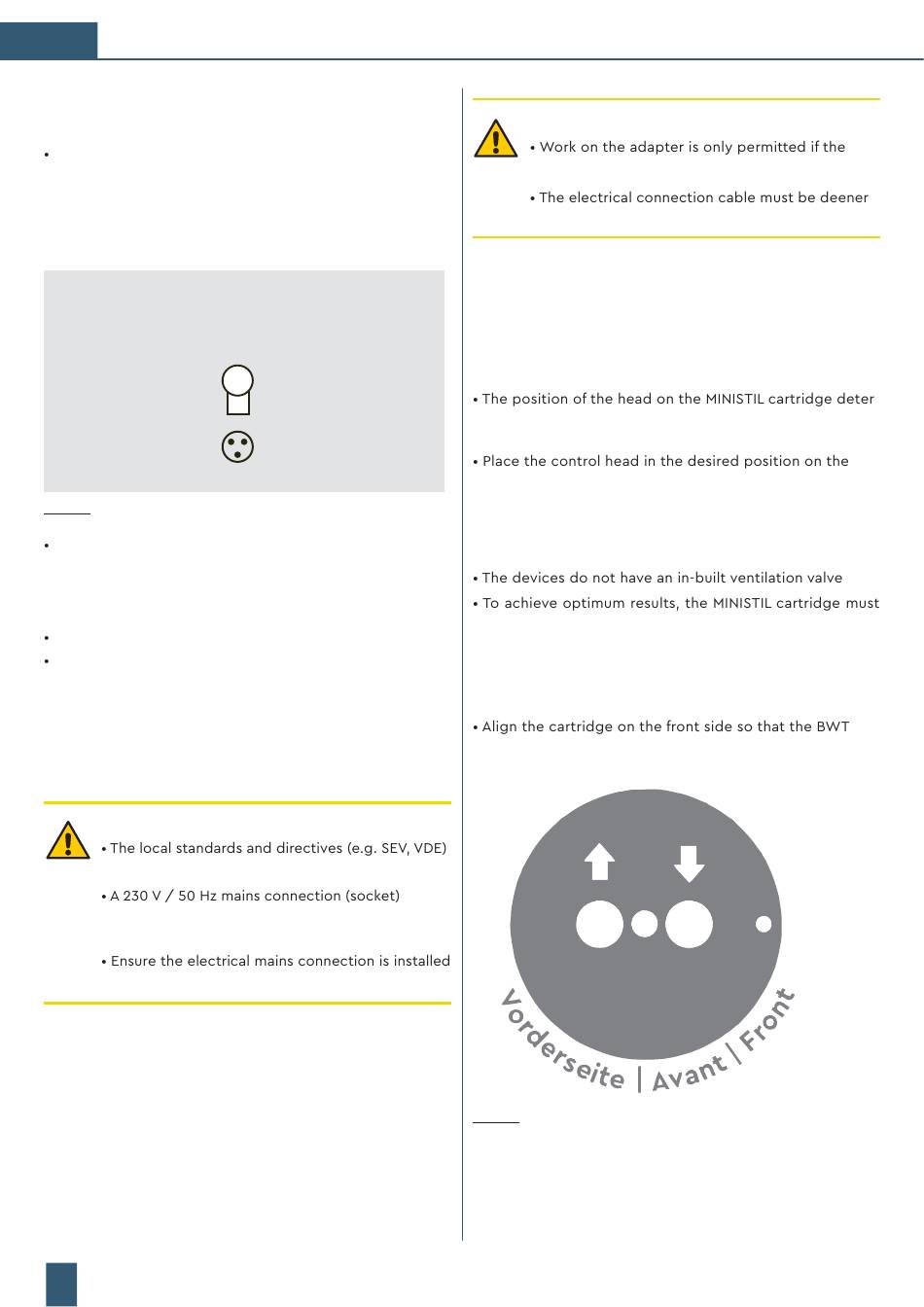

6.6 Installation of the external conductivity
measuring system
Mount the digital conductance measuring device on the
wall or any other suitable site.
6.6.1 Connector for conductivity value
type EOS
Connector for conductivity value
Fig. 16: Cable for conductivity measurement
Connect the cable for the conductance measuring
device.
6.6.2 Connector for conductivity value type EOSP
Connect the cable for the conductance measuring device.
Connect the cable for the potential-free contact to the
corresponding device.
7. Electrical connection
7.1 Electrical installation
CAUTION:
and the technical specifications must be observed.
should be available nearby. The cable length of the
adapter is 1.5 m.
by a licensed electrician.
You must only establish the electrical connection when
the installation conditions listed in Part 3.4 have been
met.
76
CAUTION:
plug has been removed from the socketfirst.
gised (free from tension) during installation.
8. Venting and commissioning
The device has the correct hydraulic and electrical connec-
tion (see Part 6.3 "Mounting the head onto a plastic cart-
ridge"). Adhere to the safety instructions.
mines the venting or operating mode.
cartridge, lock the cartridge fixing and make sure that it is
closed (lock symbol).
8.1 Venting position A of the cartridge
be vented before operation
Designations:
1: Inlet (drinking water / raw water)
2: Outlet (completely desalinated water / purified water)
type plate points towards you
Patrone
Cartouche
Cartridge
Fig. 18: Direction of assembly control head on cartridge
-
-
