EnGLIsh
for the battery pack to reach full capacity. Stage 2 charging is
indicated by the right indicator light blinking red.
4. The completion of charge for Stage 1 or Stage 2 is indicated
by that stage's red indicator light remining ON continuously.
The battery pack is fully charged when both Stage 1 and Stage
2 indicator lights remain ON continuously while red.
nOTE: For the DCBPS0554 554 Wh battery pack, 100% charge
will be completed in under one hour.
5. To remove the battery pack, press the battery pack release
button
2
and pull the battery from the charger.
The charger will not charge a faulty battery pack. The charger
refusing to light could indicate a problem with the charger
or a faulty battery pack. Discontinue use and take both to an
authorised service centre.

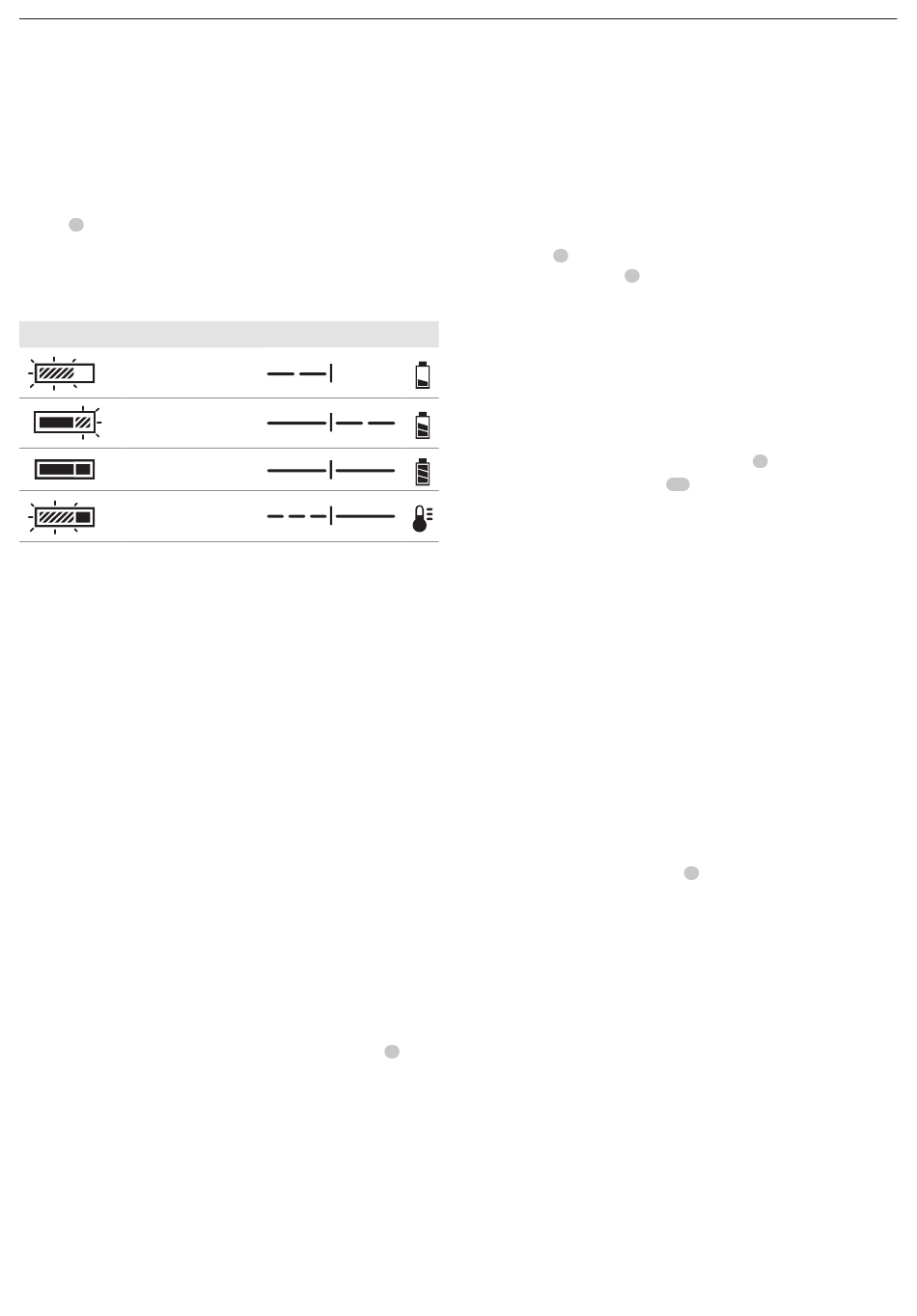

Indicators
Stage 1 Charging
Stage 2 Charging
Fully Charged
Hot/Cold Pack Delay
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too
cold, it automatically starts a Hot/Cold Pack Delay, suspending
charging until the battery pack has reached an appropriate
temperature. The charger then automatically switches to the
pack charging mode. This feature ensures maximum battery
pack life.
A cold battery pack may charge at a slower rate than a warm
battery pack.
The hot/cold pack delay will be indicated by the left indicator
light continuously blinking red and the right indicator light
continuously ON while yellow. Once the battery pack has
reached an appropriate temperature, the yellow light will turn
OFF and the charger will resume the charging procedure while
displaying the appropriate red blinking indicator lights.
Mounting (Fig. B)
This D
WALT POWERSHIFT® charger is designed to be wall
e
mountable or to sit upright on a table or work surface. If wall
mounting, locate the charger within reach of an electrical
outlet, and away from a corner or other obstructions which
may impede air flow. Mount the charger securely using at least
size #10 (5 mm) exterior wood screws (purchased separately),
at least 50.8 mm long, with a screw head diameter of 7–9 mm,
screwed into the material through the mounting holes
IMPORTanT: Do not mount charger to a wall upside down
(with handle facing the ground).
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from power source
before making any adjustments or removing/installing
attachments or accessories.
12
Attaching the Charger to the D
2.0 (Fig. C, D)
WARNING: To reduce the risk of serious personal
injury, always mount the charger to the top of the D
ToughSystem® 2.0. Never mount anything on top of the charger.
To Attach the Charger to the ToughSystem® 2.0
(Fig. C)
1. Disconnect the charger from the outlet.
2. Place the side of the charger labeled "CENTER" first into the
centre latch
7
rails to the side latches
as shown.
nOTE: The charger must be the top‑most item. The charger is
not compatible with ToughSystem® 1.0 products.
Rotating the Bottom Plate to Attach Multiple
Chargers to the ToughSystem® 2.0 (Fig. D)
The bottom plate rotates to fit on either side of the
ToughSystem® 2.0.
1. Remove the eight bottom plate screws
2. Remove the bottom plate
only the provided screws and be sure that the bottom plate is
securely reattached.
Transporting the ToughSystem® 2.0
Always transport a stacked load with a ToughSystem® 2.0 cart
or, if necessary, carry using the handles of the bottom most box.
WARNING: Never pick up a ToughSystem® 2.0 stack by the
handles on the charger.
WARNING: Always disconnect the charger from the outlet
and store cord using the cord wraps before mounting to or
dismounting from the ToughSystem® 2.0, and before transporting
the ToughSystem® 2.0.
Proper Hand Position (Fig. E)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal injury,
ALWAYS hold securely in anticipation of a sudden reaction.
Carry the charger by the handle
MAINTENANCE
Your battery charger has been designed to operate over a long
period of time with a minimum of maintenance. Continuous
satisfactory operation depends upon proper tool care and
regular cleaning.
WARNING: To reduce the risk of serious personal injury,
disconnect the charger from mains and disconnect battery pack
.
6
before performing maintenance.
The charger and battery pack are not serviceable.
Charger Cleaning Instructions
WARNING: Blow dirt and dust out of the main housing with
dry air as often as dirt is seen collecting in and around the air
vents. Wear approved eye protection and approved dust mask
when performing this procedure.
WARNING: Never use solvents or other harsh chemicals for
cleaning the non-metallic parts of the charger. These chemicals
may weaken the materials used in these parts. Use a cloth
WALT ToughSystem®
e
of the ToughSystem® 2.0 box, aligning the side
8
. Secure using the side latch anchors
10
, rotate, and reinstall it. Use
5
as shown in Fig. E.
WALT
e
.
9
