REDUCED SOUND OUTPUT: If too small a wire gauge is
used, unacceptable signal voltage drop in the signal line
will cause reduced sound output from the remote signal
device. Only use a cable having wire gauge greater than
22 AWG.
Federal does not recommend that new or existing
telephone lines be used as signal lines in an Audio
Router system for the following reasons:
• Interference from other services or systems, or
interference from the system to other services.
• Cross-talk, interference, or hum induced by other
telephone lines.
• Extended downtime because of the second party
involvement required to service the lines.
• The additional cost of installation, interfacing
devices, and monthly charges as opposed to a one-
time cost of performing the installation.
Signaling Connections
CROSS-TALK: Cross-talk can occur between signal lines
and power lines, causing confusing messages, which
interfere with the capability of this equipment.
Do not install signal lines in the same conduit with power
lines. Avoid routing signal lines on cable trays with high
voltage power lines.
To connect the signal lines of the system to the
AR2000-M, connect a color-coded shielded twisted pair
CAUTION: TO REDUCE
THE RISK OF FIRE,
REPLACE ONLY WITH
BUSS 250V, 4A GMT FUSE
ALARM
INDICATOR - +
(CLASS 2)24VDC
120 VAC, 50/60 HZ, 2A
BACKUP POWER
240 VAC, 50/60 HZ, 1A
SIGNAL LINES
SHIELDED
TWISTED PAIR
HI (+) WHT
LOW (-) WHT
4
WARNING:
(CLASS 2) POWER
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
OUT TO AR2000-P
QUALIFIED PERSONNEL. TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK,
DO NOT REMOVE COVER OR EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
DRY CONTACT IN (N.O.)
GND +24V
POWER OUT
TO PRESET
ABOVE
PRESET 5 PRESET 6
PRESET 1 PRESET 2 PRESET 3 PRESET 4
AUDIO OUT
(CLASS 2)
POWER OUT
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5
TO AR2000-Z
GND +24V - + - + - + - + -
300GC 300GC 300GC
AM25CK AM25CK AM25CK
120VAC 120VAC
of audio cables having conductors no smaller than 18
AWG to + and - of each zone output being utilized to
the appropriate remote device(s). See Figure 1. Every
remote signaling device in the system will be connected
in parallel to these lines. When connecting the remote
devices in parallel to the signal lines, observe the correct
polarity and install wire nuts over the connections.
NOTE: If using the supplied amplifier or an external
amplifier, the output audio must be connected using
appropriate wire from AUDIO OUT to AUDIO IN FROM
EXTERNAL AMP. If using the on-board amplifier, directly
connect the AUDIO IN FROM EXTERNAL AMP to the
AUDIO OUT terminals on the back of the AR2000-M. See
the Signal Lines section for recommended wire sizes.
Connection to Remote Devices
Physically install the remote device(s); follow the
installation instructions packed with the device.
A. 300GC, 300GCX, 300X, 302GC, 302GCX, 302X, 50GC,
and 50GCB
To connect these models to a 25 V
a Model AM25CK or AM70CK connector card must be
used. See Figure 1 and the instructions in the Signaling
Connections section. for the appropriate signal line
voltage.
B. 70 V
rms
The AR2000-M has a provision for connecting 70 V
operated speakers to its output. Connect the 70 V
at the terminals of Zone 1 – Zone 8 terminal block(s).
Connect the speakers in parallel to this line using 70 V
line tap. This output is selected by setting the switch on
the back of the AR2000-M to the 70 V

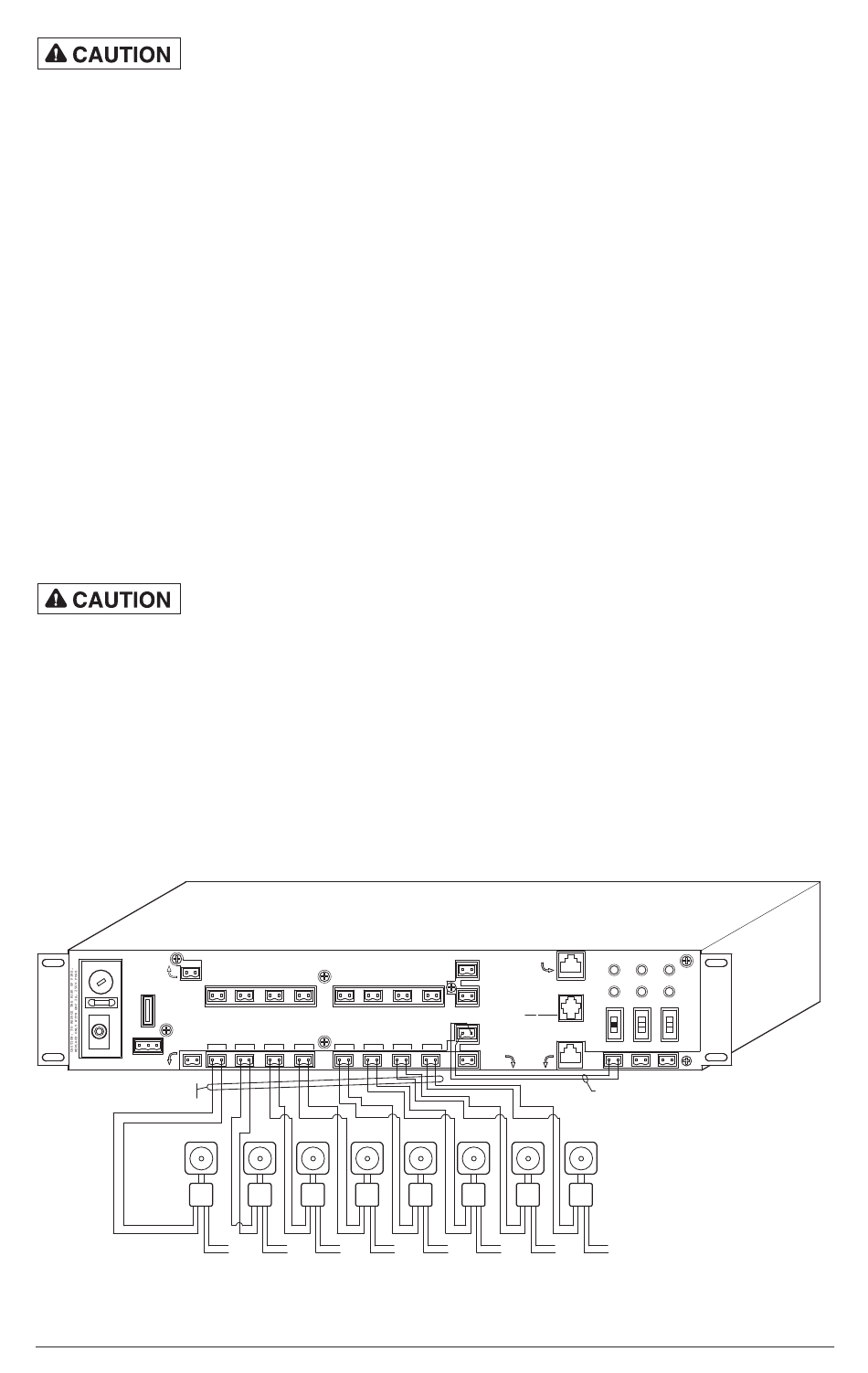

Figure 1 Connections
OPTO
COMMON +24V
DRY CONTACT IN (N.O.)
ALL CALL
PRESET 7 PRESET 8
AUDIO IN FROM EXTERNAL AMP
OR FROM AUDIO OUT 15W
- +
AUDIO OUT
ZONE 6 ZONE 7 ZONE 8
+ - + - + - + - +
AUDIO OUT
TO BELOW
300GC 300GC 300GC
AM25CK AM25CK AM25CK
120VAC 120VAC 120VAC 120VAC
rms
Signal Line Application
MONITOR
CONTROL IN
PHONE MICROPHONE SPEAKER
FROM PRESET
VOLUME VOLUME VOLUME
AUDIO OUT CH B CH A
VOLUME VOLUME
VOLUME
AUDIO OUT CH B INPUT CH A INPUT
PHONE LINE
SELECT SELECT SELECT
NUMBER
( ) 1Vrms 1V 1V
rms rms
25Vrms 25V 25V
rms rms
70Vrms 70V 70V
rms rms
AUDIO OUT(15W) CH B INPUT CH A INPUT
CONTROL OUT
- + - + - +
TO ZONE
SIGNAL LINES
SHIELDED
TWISTED PAIR
300GC 300GC
MODEL AR2000-M WITH MODEL 300GC
CONNECTIONS USING INTERNAL AMPLIFIER
AM25CK AM25CK
120VAC 120VAC
