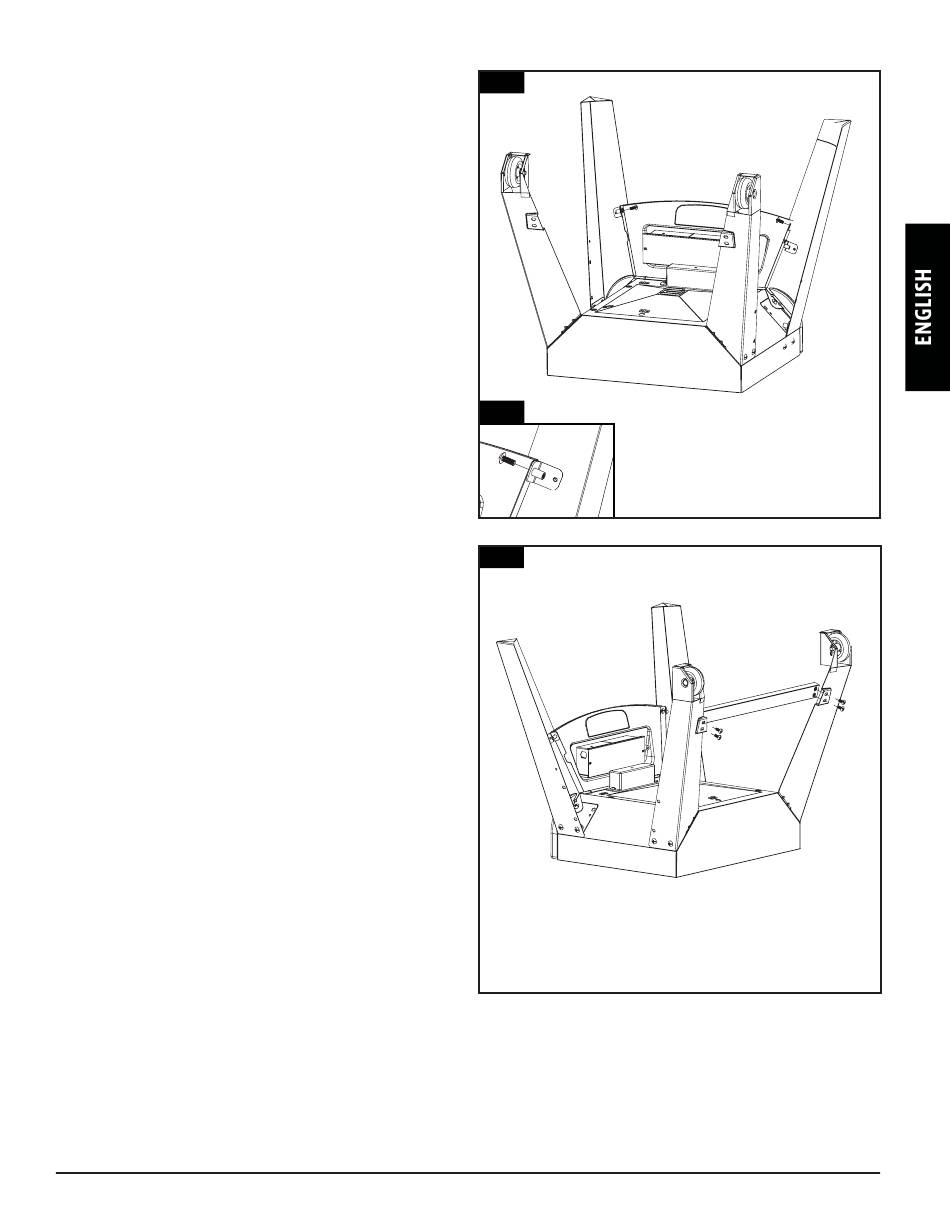

2. MOUNTING BOTH FRONT LEGS TO LOWER CABINET WITH
CONTROL PANEL ASSEMBLY
Parts Required:
1 x Lower Smoker Cabinet with Control Panel
Assembly (#14)
1 x Right Front Leg (#22)
1 x Left Front Leg (#19)
2 x #10-24*1/2"Screw (#C)
Installation:
• Loosen 2~3 turns on 2 screws which were
pre-assembled on the Control Panel to Cabinet
before, mount Right Front Leg (#22) and Left
Front Leg (#19) to the Control Panel Assembly
(#14) using 2 x#10-24*1/2"Screws (#C) and
re-tighten 2 screws on the Control Panel to the
bottom of Cabinet as Fig.2 & Fig.2.1 shown.
3. MOUNTING BACK SUPPORT TUBE TO RIGHT REAR LEG
WITH WHEEL ASSEMBLY AND LEFT REAR LEG WITH WHEEL
ASSEMBLY
Parts Required:
1 x Back Support Tube (#21)
1 x Right Rear Leg with Wheel Assembly (#17)
1 x Left Rear Leg with Wheel Assembly (#18)
4 x #10-24*1/2"Screw (#C)
Installation:
• Mount Back Support Tube (#21) to the Right
Rear Leg with Wheel Assembly (#17) and Left
Rear Leg with Wheel Assembly (#18) using 4
x#10-24*1/2"Screws (#C) as Fig.3 shown.
Fig.2
19
Fig.2.1
Fig.3
22
21
10
