Operation
Connection
Connect the machine to an electrical outlet with a voltage as per the machine's rating plate specifications.

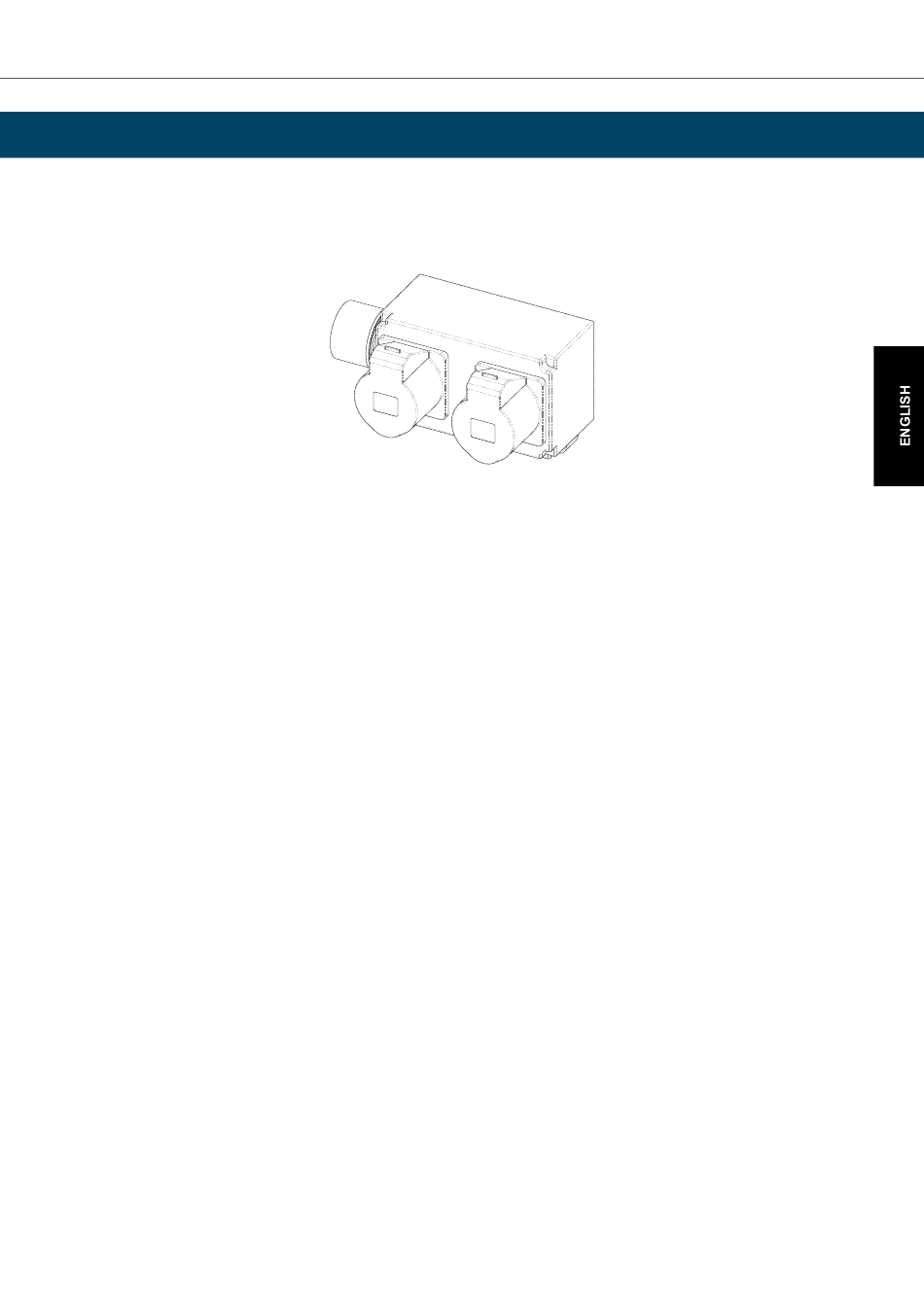

Automatic Starter (ALV10)
According to current safety regulations when working with woodworking machines, hazardous dust must be effec-
tively sucked up by a chip extractor.
This starter with time delay automatically starts the chip extractor after 2-3 seconds and therefore protects against
an overload on the fuse.
After the machine has been stopped, the chip vacuum continues for another 3-4 seconds and thus sucks up the
remaining dust from the hoses.
Filter cleaning
The machine has a filter indicator light that lights up when the filter needs to be cleaned or replaced.
Instructions for filter cleaning
1. Leave the machine on, reset the filter cleaning button and close the damper on the cyclone inlet.
2. Wait 5-10 pulses.
3. Switch off the machine.
4. Reset the filter cleaning button and open the damper on the cyclone inlet.
5. Start the machine. Check that the filter indicator light is off. If not - repeat the procedure. If the lamp lights up
even after the repetition, the fine filter needs to be replaced.
