DC Chip Extractor
Functional description
The dust collector works with negative pressure (suction) which drives the air through the suction hood / nozzle,
hose system and pre- and dust separator. Coarse separation takes place in the unit's cyclone, which is a very
efficient separation of increasingly coarser dust. The fine dust is separated in the unit's filter. Filter cleaning with air
pulse gives the filters extra long life. The machine is equipped with HEPA filters.
DC Tromb 400 is used for spot extraction (with maximum throttling Ø 15 mm) in many contexts e.g. when grinding,
welding, personal clean-up and cleaning. The DC Tromb 400 is powered by two 1-phase, 2-stage fans.
The dust collector has the following discharge option:

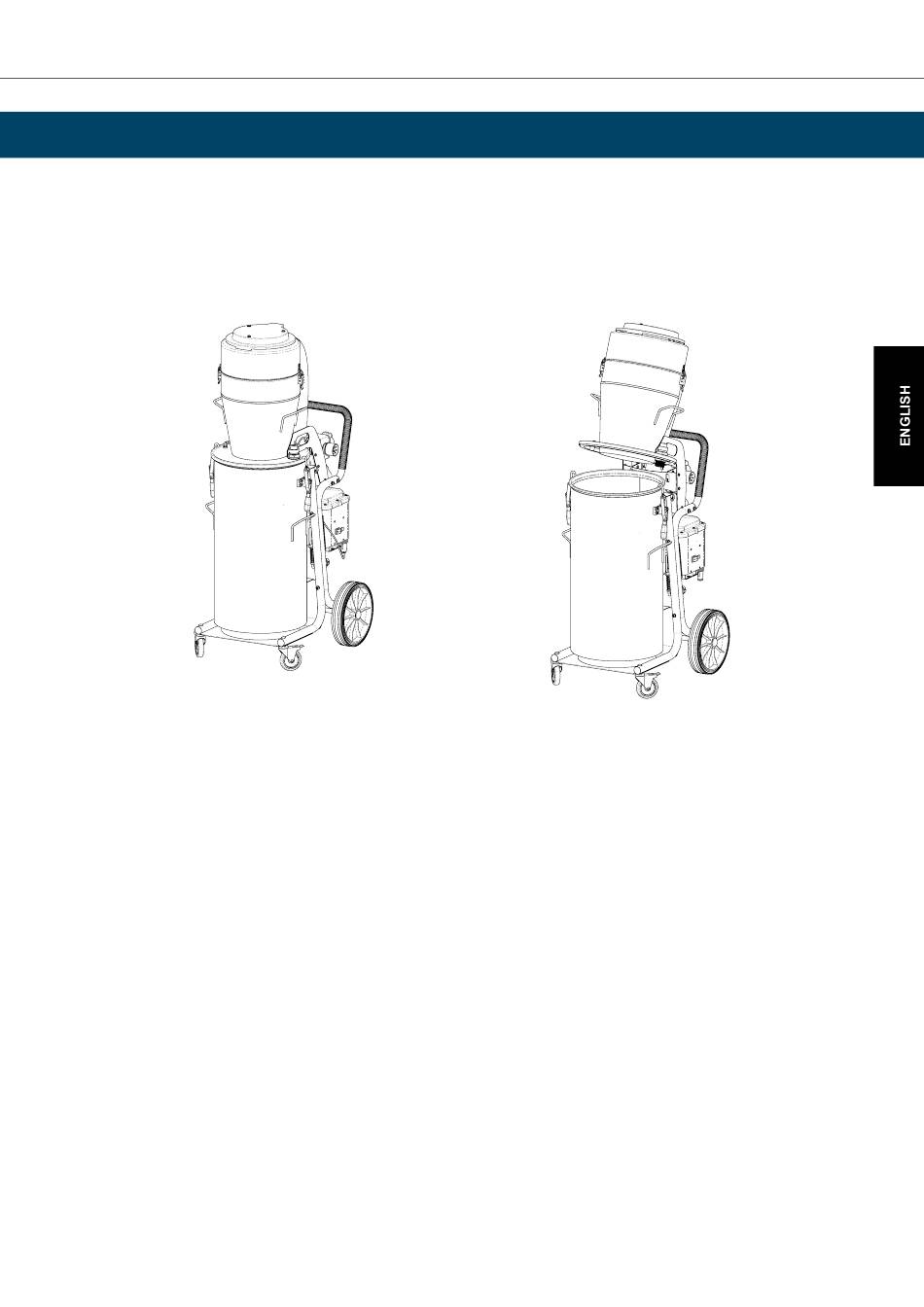

a - Container: A cylindrical container for collection of separated material.
