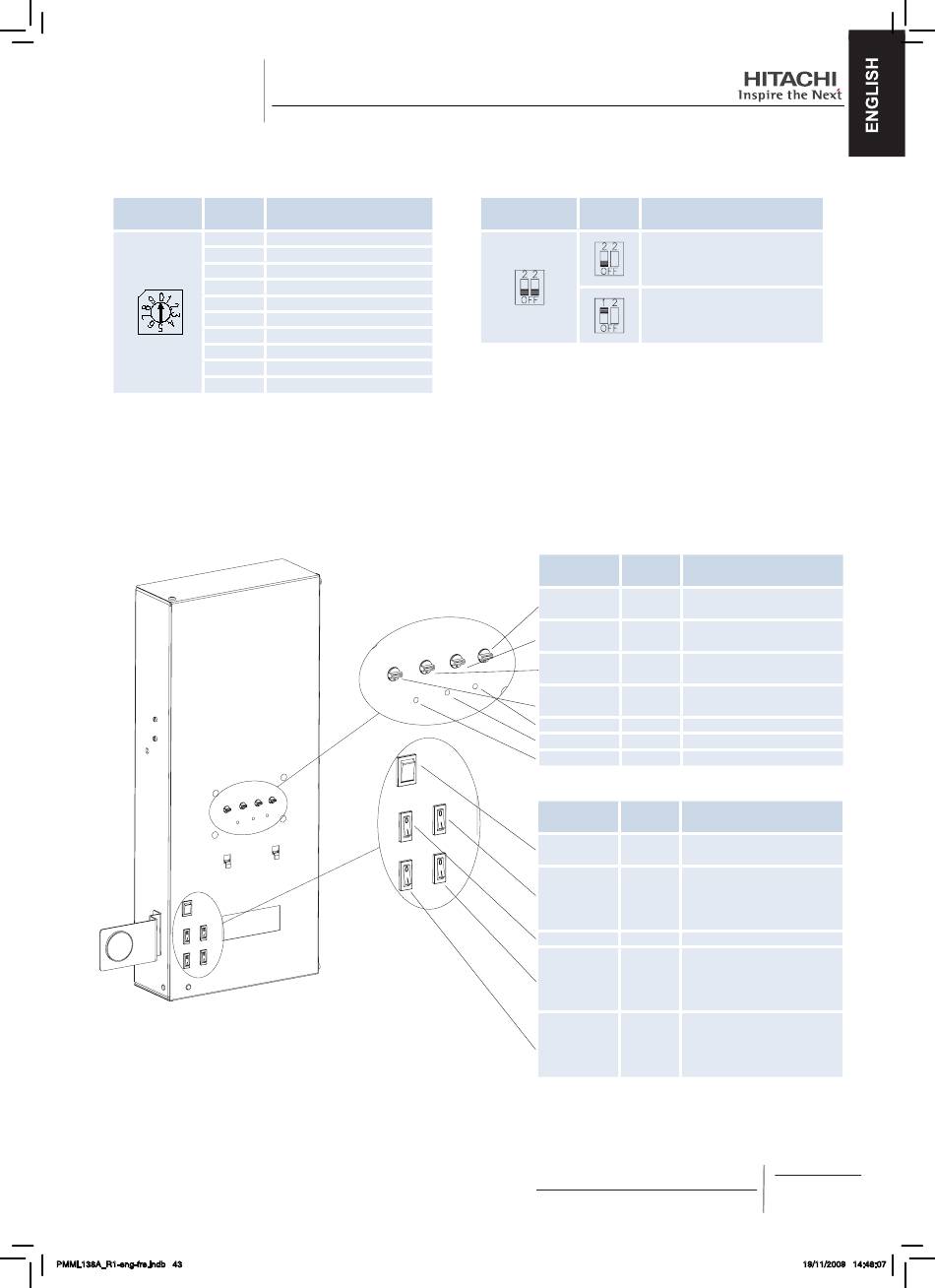

ELECTRICAL WIRING
SW7 (Rotary switch 10 positions):
Swimming pool target temperature setting
SW7
SW7
(Default)
NOTE:
Condition to be activate:
SWIMMING pool control enabled (by SWP switch
ON( SW12 ), and SW Pool contact ON (Terminals 5/6)
and no demand in DHWT.
¡
External SWITCHES
PMML138A_R1-eng-fre.indb 43
Target temperature (ºC)
0
24
1
25
2
26
3
27
4
28
5
29
6
30
7
31
8
32
9
33
SW8 (Dip switch 2 positions):
DHWT Modes Options
SW8
SW8.1
(Default)
Name
Type
Rotary
SW2
switch
Rotary
SW3
switch
Rotary
SW6
switch
Rotary
SW7
switch
L1
LED
L2
LED
L3
LED
Name
Type
SW9
Switch
SW11
Switch
SW10
Switch
SW12
Switch
SW13
Switch
PMML0138A-rev.1 - 11/2009
Description
Economic mode
Confortable mode
Description
Electrical heater outdoor
temperature setting
Water rule target setting
Domestic Hot Water Tank
target temperature
Swimming Pool target
temperature
Electric Heater working
Indoor unit default
Outdoor unit on
Description
ON/ OFF Switch
0: OFF I: ON
ON/OFF Electrical Heater
Operation
0: HEATER OFF
I : HEATER ON
Operation mode switch
ON/OFF Swimming Pool
Operation:
0: SWPOOL OFF
I : SWPOOL ON
ON/OFF Domestic Hot Water
Tank Operation:
0: DHWT OFF
I : DHWT ON
43
