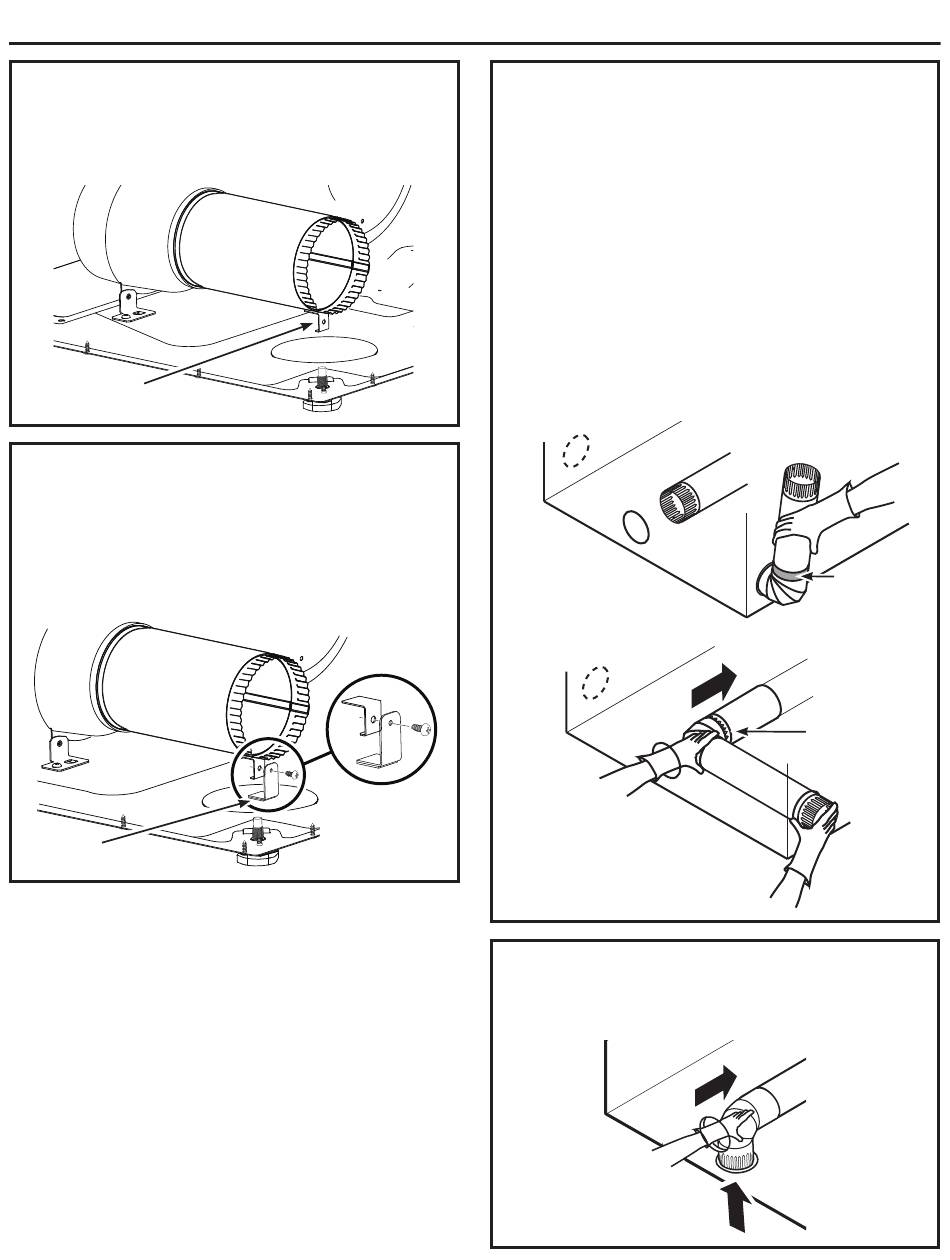

REINSTALL CUT DUCT TO DRYER
• Reconnect the cut portion (A) of the dryer duct to
the blower housing. Make sure that the tab on the
duct is pointed towards the base of the dryer.
Tab
down
SECURE DUCT TO DRYER BASE
• Install the adhesive backed bracket from the kit by
removing its paper strip, aligning it directly in front of
the duct tab and and pressing it firmly onto the dryer
base. Secure the bracket to the duct tab by driving
the screw removed earlier through the bracket and
into the tab.
Adhere
to base
Installation Instructions
Attach bracket
to tab with
screw
SIDE VENTING OPTION
• Right Side Venting: Preassemble the 4" adjustable
elbow to the 9-1/2" long duct from the kit. Wrap UL
listed aluminum foil tape around the joint.
• Left Side Venting: Preassemble the 4" adjustable
elbow to the 15-1/2" long duct from the kit. Wrap UL
listed aluminum foil tape around the joint. NOTE:
Make sure the duct is routed above the electrical
wiring harness going from the motor to the rear side
of the dryer in the left venting area.
• Insert the duct assembly, elbow first, through the
chosen side opening and connect the adjustable
elbow to the dryer internal duct (portion "A").
Duct can be connected through either the right
or left side knockout as previously chosen
Right
Right
BOTTOM VENTING OPTION
• Bottom Venting: Connect the 4" adjustable elbow
directly to the dryer internal duct (portion "A").
3
UL listed
aluminum
foil tape
Left
Connect
Left
