GE WE16X36797 Instructions D'installation

Installation
Instructions
If you have any questions, call GE Appliances at 800.GE.CARES
(800.432.2737)
In Canada, call 800.561.3344
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
•
local inspector's use.
IMPORTANT
•
codes and ordinances.
Note to Installer
• – Be sure to leave these
instructions with the Consumer.
Note to Consumer
•
future reference.
• This dryer must be exhausted to the outdoors.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• Remove and discard existing plastic or metal foil
duct.
TOOLS AND MATERIALS YOU WILL
NEED TO INSTALL EXHAUST DUCT
Phillips screwdriver
Vent hood

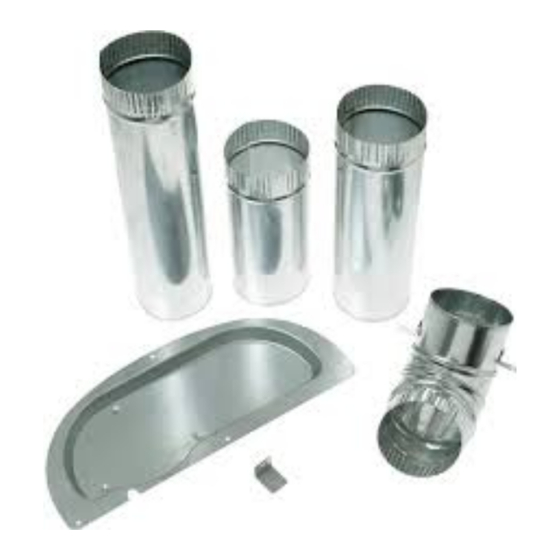

CONTENTS
Exhaust duct
(15-1/2" Long)
Exhaust duct
(9-1/2" Long)
or visit our Website at:
– Save these instructions for
– Observe all governing
– Keep these instructions for
UL listed aluminum
foil tape or duct
clamp
Adjustable
elbow duct
4" Exhaust
Cover Plate
Bracket with
adhesive
Dryer Venting Kit
WE16X36797 / GFA24DSVV
GEAppliances.com
www.GEAppliances.ca
or visit
WARNING
- Risk of Fire
• Clothes dryer installation must be performed by a
qualified installer.
• Install the clothes dryer according to these
instructions and local codes.
• DO NOT install a clothes dryer with flexible plastic
venting materials. If flexible metal (semi-rigid or foil-type)
duct is installed, it must be UL-listed and installed in
accordance with the instructions found in "Connecting
the Dryer to House Vent" later in this manual. Flexible
venting materials are known to collapse, be easily
crushed and trap lint. These conditions will obstruct
dryer airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow
all installation instructions.
• Save these instructions. (Installers: Be sure to
leave these instructions with the customer.)
WARNING
This dryer MUST be vented to the outdoors.
Use only 4" rigid metal ducting for the home exhaust duct.
DO NOT use any plastic to vent the dryer, this
includes the home exhaust duct, dryer transition
duct, or within the dryer.
DO NOT use flexible metal or metal foil ducting for a
home exhaust duct or within the dryer.
DO NOT exhaust into a chimney, kitchen exhaust,
gas vent, wall, ceiling, attic, crawl space, or
concealed space of a building.
DO NOT install a screen in or over the exhaust duct.
DO NOT install a booster fan in the exhaust duct.
NOTE: The booster fan warning does not
apply to clothes dryers intended to be installed
in a multiple clothes dryer system, with an
engineered exhaust duct system that is installed
per the clothes dryer manufacturer's guidelines.
Failure to follow these instructions can result in death
or fire.
31-3000365
- Fire Hazard
Rev 1
04-24
