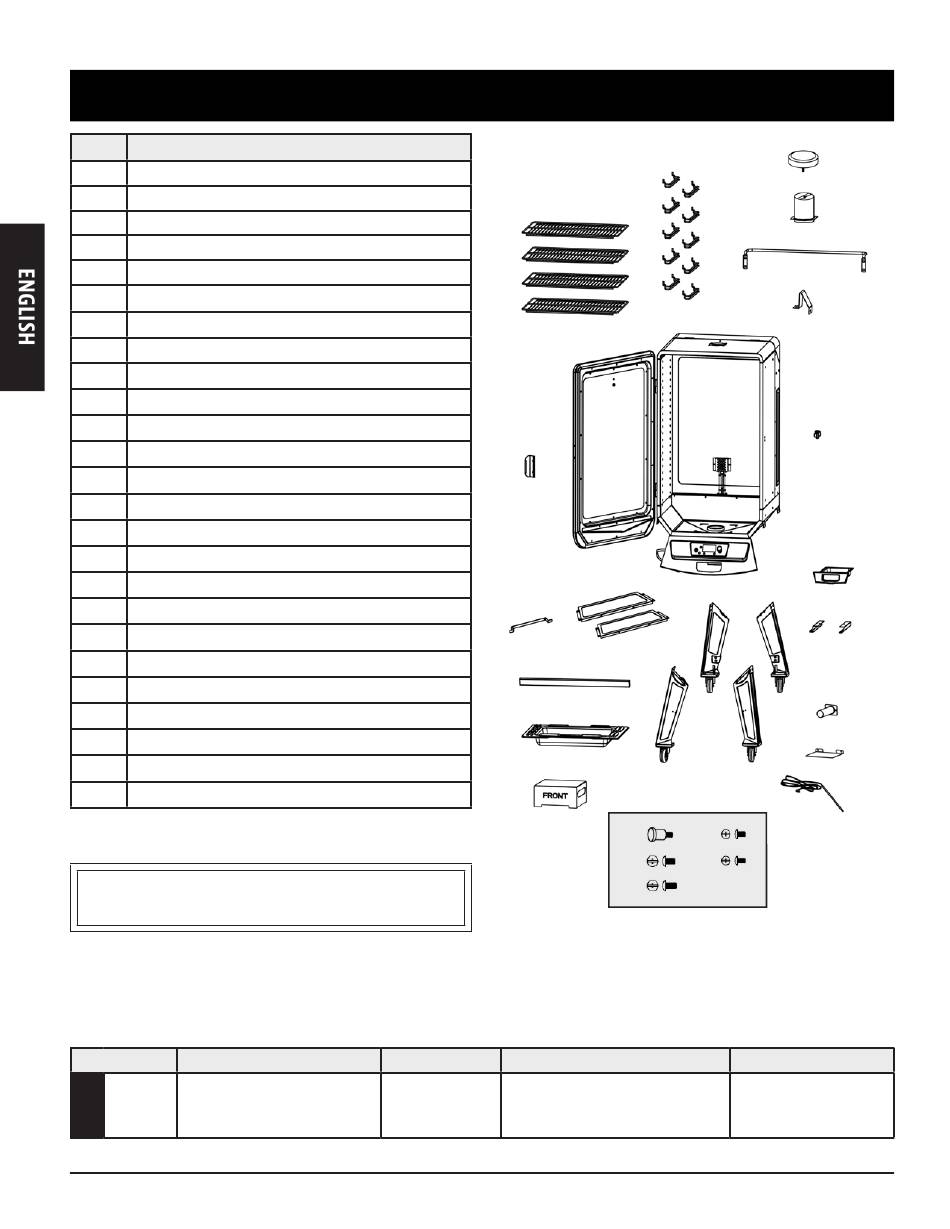

Part#
Description
1
Cooking Grids (x4)
2
Cooking Grid Support Brackets (x10)
3
Chimney Cap (x1)
4
Chimney Stack (x1)
5
Back Handle (x1)
6
Lid Stopper (x1)
7
Main Cabinet (x1)
8
Cabinet Door Handle (x1)
9
Cabinet Door Latch (x1)
10
Power Cord Bracket (x1)
11
Support Panel (x2)
12
Support Bar (x1)
13
Water Pan (x1)
14
Flame Tamer (x1)
15
Support Leg With Wheel (x4)
16
Grease Tray (x1)
17
Grease Tray Brackets (x2)
18
Grease Exhaust Tube (x1)
19
Heat Shield (x1)
20
Meat Probe (x1)
A
Door Knob (x1)
B
¼–20x½" Screw (x12)
C
¼–20x⅝" Screw (x4)
D
#10–24x½" Screw (x32)
E
#10–24x⅓" Screw (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Service if parts are missing when assembling the unit.
PB – ELECTRIC REQUIREMENTS
110-120V, 60HZ, 250W, 3-PRONG GROUNDED PLUG
MODEL
UNIT ASSEMBLED (WxHxD)
555 X 1,339 X 640 MM
PB
PBV3PM1
/ 21 ¾ X 52 ¾ X 25 IN
6
PARTS & SPECS
1
8
10
12
13
14
UNIT WEIGHT
COOKING AREA
45.0 KG
CUBIC COOKING: 0.08 M
/ 99.0 LB
TOTAL - 4,650 CM² / 721 IN²
2
5
7
11
15
15-2
15-1
15-3
A
D
B
E
C
TEMPERATURE RANGE
/ 2.8 FT
65-215°C
3
3
/ 150-420°F
3
4
6
9
16
17
17-1
17-2
18
15-4
19
20
