For use in North America and/or Canada: Use an isolated power source that
meets one of the following requirements:
• Power circuit with limited energy in accordance with UL/CSA 61010-1/ UL/
CSA 61010-2-201.
• Limited power source (LPS) in accordance with UL/CSA 60950-1.
• Class 2 power source that complies with the National Electrical Code (NEC),
NFPA 70, clause 725.121 and the Canadian Electric Code (CEC), Part I, c22.1.
Example: Class 2 transformer or class 2 power source in accordance with UL
5085-3/ CSA-C22.2 no. 66.3 or UL 1310/CSA-c22.2 no. 223)
Ambient conditions
• Protect the product from direct sunlight and UV radiation.
6.1.2 Required accessories, materials and tools
Select material and tools that are suitable for your product configuration. De-
pending on the configuration, you will need further accessories.
Mounting material
For mounting, you can use your own mounting material or AVENTICS mounting
material. Respect dimensions and tightening torques.
Tools
• 1x Torx 10 screwdriver
6.2 Preparation
6.2.1 Unpacking and checking the product
1. Check the material number to see if the product matches your order.
2. Check the product for transport and storage damage.
Do not install a damaged product. Return damaged products together with
the delivery documents. See
3. Prepare required accessories, materials and tools.
6.2.2 Implementing safety measures
Procedure
1. Do not carry out any work on the system during preparation.
2. Close off dangerous areas.
3. Make sure the system or system part is not under pressure or voltage.
4. Protect the system against being restarted.
5. Allow product and adjacent system parts to cool down.
6. Wear PPE.
6.2.3 Software installation
1. Call up the product page in the Emerson Store: http://www.emerson.com/
xv03c | http://www.emerson.com/xv05c
There is a QR code on the product that also leads to the software and user docu-
mentation.
2. Download zip archive with device description files.
Convention for naming the installation file with the date of issue: GSDML-VX.XX-
AVENTICS-02B5-XVESBC-YYYYMMDD.xml
3. Install files.
6.3 Installation
The product is preassembled. See
6.4 Connecting the electrical system
Notes
• Observe the pin assignment. See
• Observe technical data on the cable cross-section. See
• Use shielded cables to protect against interference and electrostatic effects.
• Ensure that X7E1 and X7E2 are not connected to the same switch or hub.
• Ensure that no ring topology is manufactured without a ring master.
AVENTICS™ PROFINET-IO | 570088-BAL-AA | English
g 4.3 Returning the product.
g 10. Disassembly and exchange.
g 11.3 Pin assignment.
g 14 Technical
Procedure
1

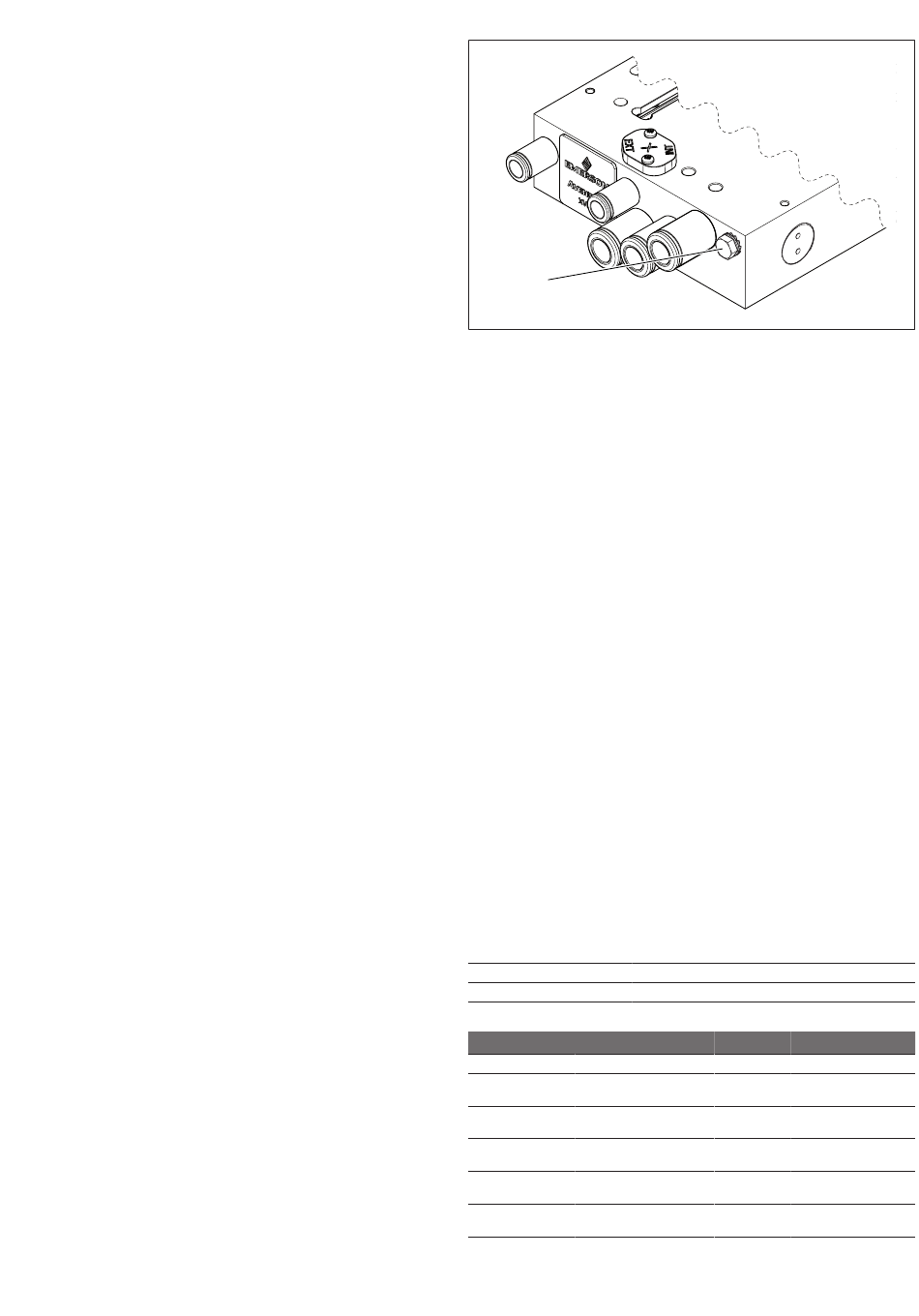

Fig. 3: Position of grounding screw
1 Grounding screw
1. Release the grounding screw.
2. Mount the grounding cable using the grounding screw. Screw in grounding
screw.
3. Connect the bus cable to the plug connector X7E1 or X7E2.
Tightening torque: 1.5 Nm + 0.5 Nm
4. Connect the voltage to the plug connector X1S.
Tightening torque: 1.5 Nm + 0.5 Nm
5. Close off all unused ports.
7 Commissioning
7.1 Preparation
General requirements
Implement safety measures. See
u
Make sure that all connections are in perfect condition.
u
Check LED. See g 11.2 Display.
u
7.1.1 Setting parameters
1. Load the GSDML file in the PLC configuration program.
2. If the PLC is not compatible with the GSDML file: Download and use an older
version of the GSDML file.
ð Available parameters are displayed via the configuration file in the PLC
configuration program.
3. Adjust the parameters of the individual modules in the PLC configuration pro-
gram.
ð Parameters and configuration data are sent from the PLC to the product when
the product is switched on.
Parameters for diagnostic messages
Deactivated (default)
Activated
Table 1: Diagnostic messages
Message type
Default Voltage too low
Default Voltage too high
data.
Manufacturer-spe- Valves are switched off
cific
Manufacturer-spe- Short circuit at valve coil
cific
Manufacturer-spe- Open load at valve coil
cific
Manufacturer-spe- Hardware error at the
cific valves
g 6.2.2 Implementing safety
Diagnosis is not reported to the PLC.
Diagnosis is reported to the PLC.
Error value Error description
2 Supply voltage UL < 18 V
3 Supply voltage UL
> 26.4 V
260 Valve supply voltage UA
< 21.6 V (UA ON)
261 Short circuit at valve coil
at channel 0 ... 47
262 Open load at valve coil
at channel 0 ... 47
263 Hardware error
measures.
16
