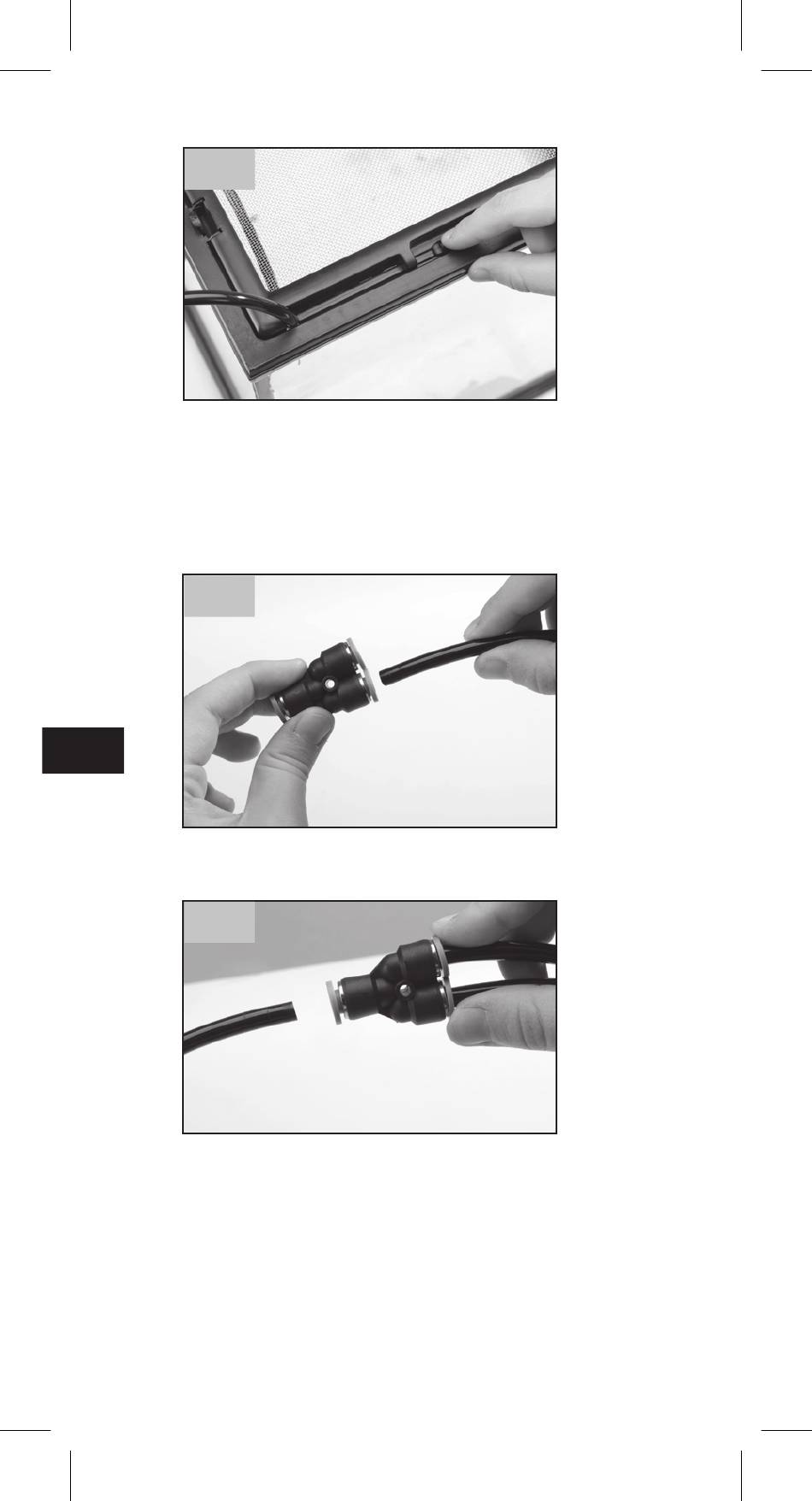

9. Remove any slack in the tubing inside the terrarium. Make sure
there are no kinks in the tubing which would impede water flow to
the nozzles. Verify that the suction cups are properly attached.
10. Connect the tubing from the nozzles to the Y-connector by pressing
the tubing firmly into one of the side-by-side holes as far as
possible. Connect both nozzles. (fig. D)
D
10
11. Connect the tubing to the remaining hole of the Y-connector by
pressing it firmly inside as far as possible. (fig. E)
E
12. Place the Monsoon MULTI unit on a solid, level surface.
13. Connect the tubing coming from the Y-connector to the top of the
unit by pressing the tubing firmly into the connector on top of the
control unit. (fig.F)
