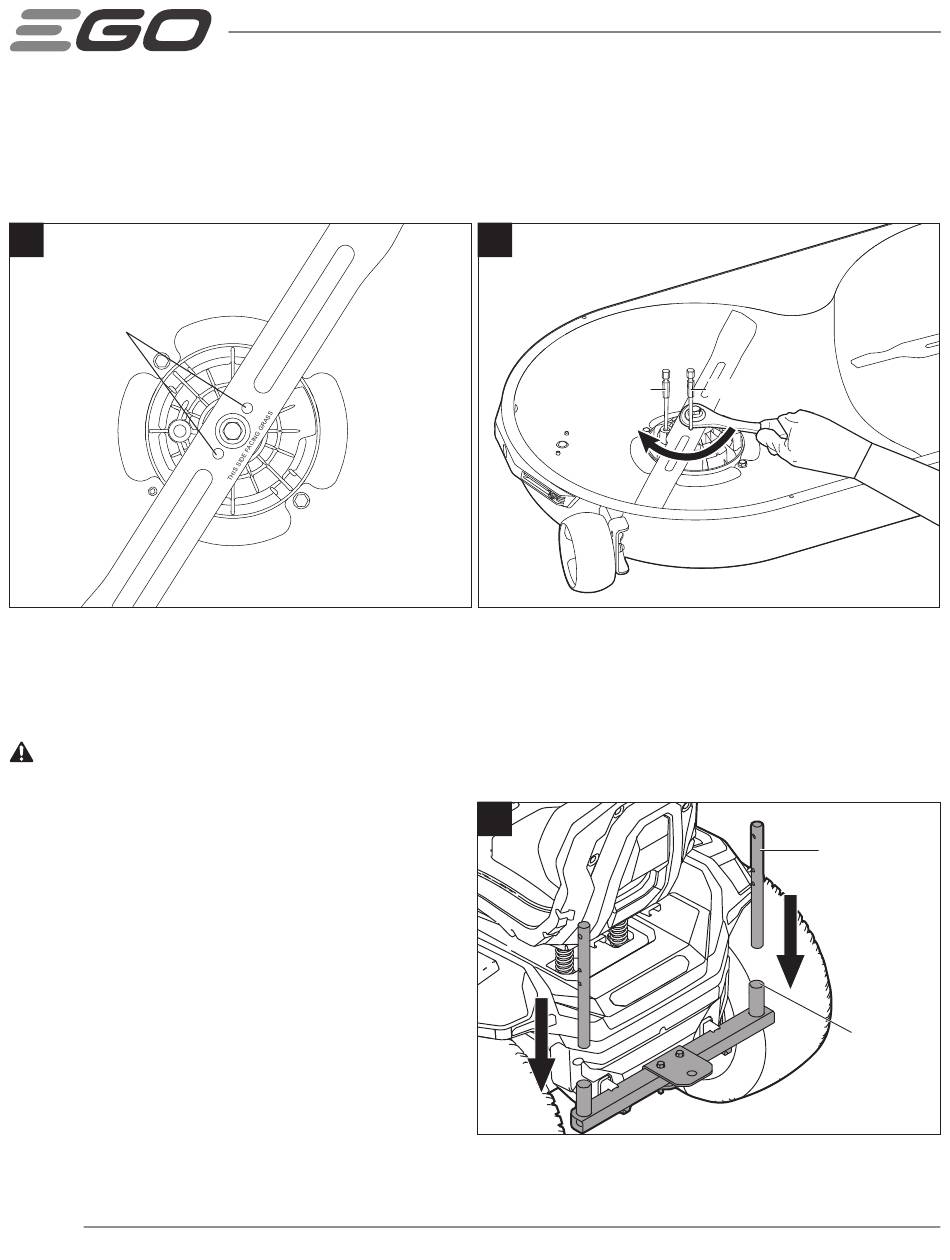

5. Move the blade by hand to align the two holes in the blade with the two holes in the flange (Fig. 7).
6. Place a screwdriver or metal rod 1/4 in (6.35 mm) or a little less in diameter (e.g., a bit) into the aligned hole in the
blade and the flange to act as a stabilizer. Place another screwdriver or metal rod 5/16 in (8 mm) or a little less in
diameter into the fixing hole in the motor to act as a stabilizer (Fig. 8).
7
Aligned Holes
7. Use a 14 mm torque wrench to tighten the bolt clockwise. The recommended torque for the blade bolt is
36-41 ft-lb (50-55 Nm).
8. Repeat the steps with the second blade.
9. Reassemble the deck onto the tractor in the reverse order.
WARNING: Ensure that the bagging blades are properly seated and the blade bolts are tightened to the torque
specifications above. Failure to properly attach the blades
could cause them to come loose and result in possible
serious personal injury.
ASSEMBLY AND INSTALLATION OF GRASS BAGGER
1. Make sure the attachment rack has been installed
onto the tractor. Follow the instructions in the
tractor manual for the installation.
8
GRASS BAGGER KIT — ABK4200T
8
Stabilizer 1#
9
Stabilizer 2#
Post
Mounting Hole
