Junction Box - Scrigno Antamatic Open 2.0 Manuel D'installation

Open
2.0

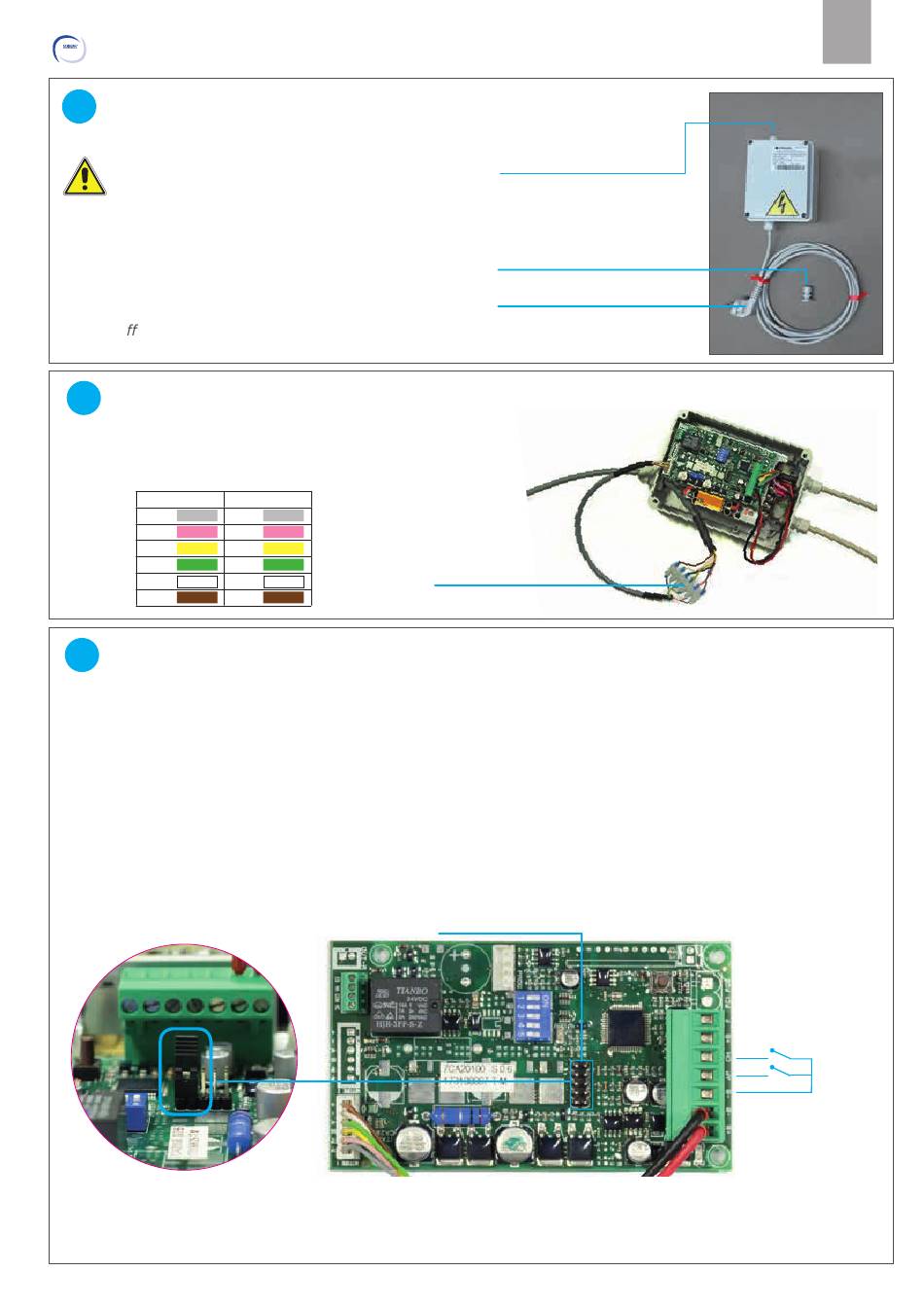

JUNCTION BOX

26
Caution: the electrical preparation operations
must only be performed by skilled personnel.
Note: The outlet position of the cables may
di er from the one shown alongside.
CCONNECTING THE
27
Connect the 6 wires of the motor cable to the terminal
board, following the diagram colours:
WIRING DIAGRAM
BOARD SIDE
Grey
Pink
Yellow
Green
White
Brown
CONNECTING THE
28
Choose the correct type of buttons:
SEQUENTIAL BUTTON (PULSE, NOT POWERED):
Connection between terminal (-B) and terminal (CH) (closing);
WO SEPARATE PUSHBUTTONS (IMPULSIVE, NOT POWERED):
CAUTION: REMOVE THE J3 CONNECTOR JUMPER
Connect the common wire of the button to terminal (-B), the opening contact to terminal (AP) eand the closing contact
to terminal(CH).
Jumper on connector J3
Drill the junction box using a suitable bit, fi t the PG cable gland supplied with the kit, and route the button cable
through it.
R1387 DCM2461/SCRIGNO | page 12
MOTOR CABLE
MOTOR SIDE
Grey
Pink
Yellow
Green
White
Brown
OPENING BUTTONS
MOTOR CABLE INLET
PG CONNECTOR for BUTTON
CABLE (not supplied)
230V POWER CABLE
TERMINAL BOARD
J3 connector
EN
Button inputs:
(dry contacts not
powered)
Close
Open
Common
