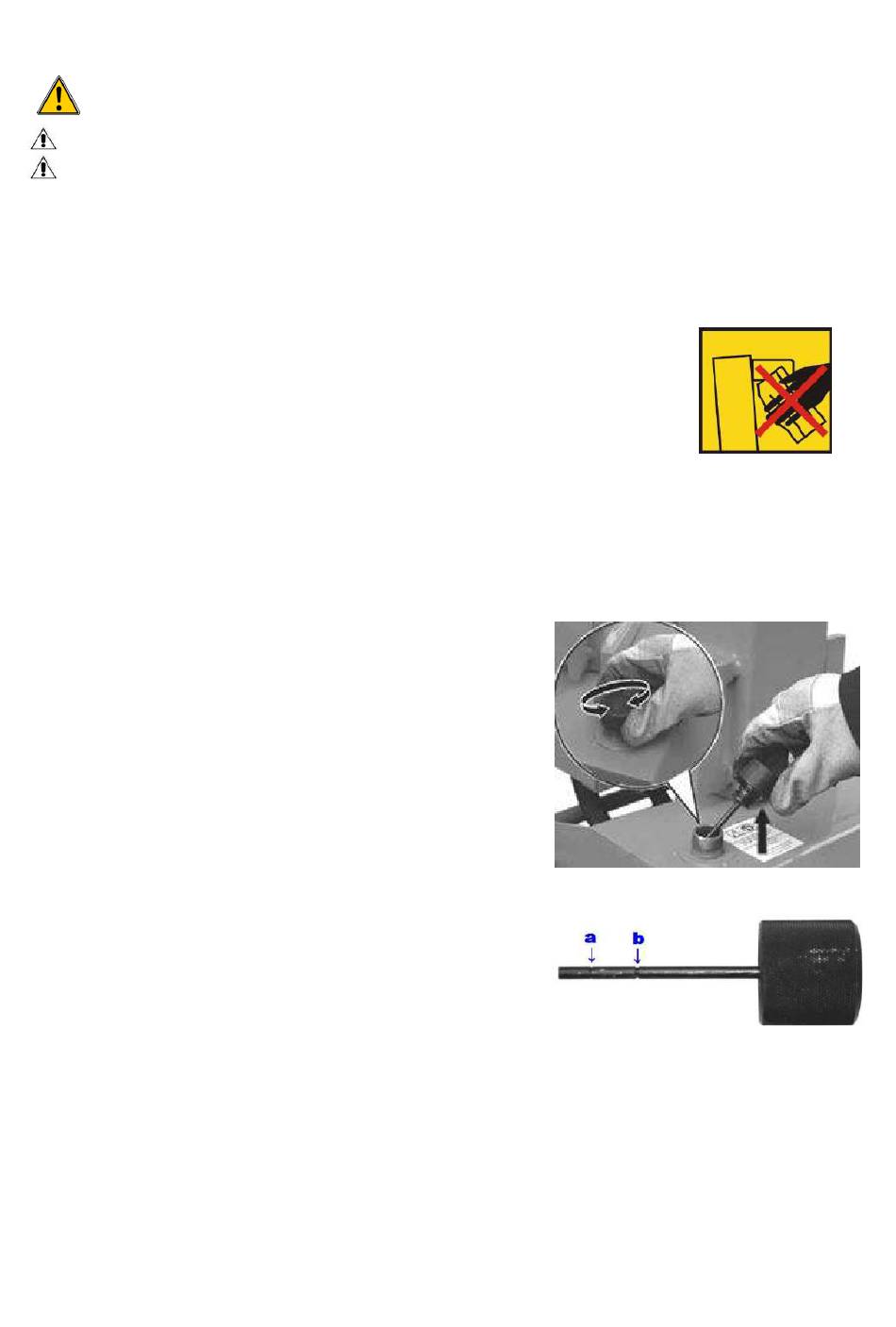

VI. MAINTENANCE
Before any intervention on product, ensure that product is disconnected form its
power source.
Wear protective gloves to avoid any injury hazard.
Carefully observe the following points so as not to interfere with the proper operation of log
splitter: - Clean the machine thoroughly after each use.
- Eliminate resin residues.
- Regularly lubricate the piston rod by means of oil spray.
- Check the oil level, and refill as deemed necessary.
6.1- Freeing a jammed log
It may occur that the log remains jammed during splitting.
1. Switch off the machine and remove the plug from the socket.
2. Do not remove the jammed log with your hands!
3. Try to move the jammed log carefully using a crowbar to loosen it.
Do not damage the ram and splitting wedge.
- Never attempt to free the jammed log using a hammer.
- Never attempt to release the jammed log using a saw.
- Do not ask for help to a second person. Only one person should be around the machine.
6.2- Replacing the hydraulic oil
a) Checking the oil level
1. The ram must be in its collapsed position.
2. Remove the dipstick gauge (Fig.14).
3. Clean the dipstick and the gasket.
4. Insert the dipstick into the opening.
5. Remove the dipstick.
- When the oil level is between the two marks (Fig.15), the
tank contains enough oil.
- When the oil level is below the mark "a" (Fig.15), then it is
necessary to add oil with a clean funnel.
6. Check the seal. Replace if damaged.
7. Insert the dipstick into the hole and screw the cap back
on.
b) When to change the oil?
Do the first oil change after 50 hours; then drain every 500 hours or once a year.
c) Oil change
1. The ram must be in the retracted position. Make sure all moving parts have stopped and that the log
splitter is unplugged.
2. Remove oil tank cap (A) (Fig. 16).
3. Place a container that can hold 6 liters of oil under the log splitter.
4. Unscrew the drain plug (B) (Fig. 16) located under the base of the splitter for the oil to flow.
5. When the oil has drained completely, Insert the seal and the drain plug in place (B).
Fig.14
Fig.15
Page 35 / 55
