AMR PULSE W-Mbus- Mode d'emploi / User guide version V1.2
1. Introduction to the Wireless M-Bus AMR range
Products from ADEUNIS RF's Wireless M-Bus AMR range (transmitters, repeaters, radio receivers) can be used to create an ecosystem that lets
you transmit, transport and collect data in Wireless M-Bus format.
ADEUNIS RF's AMR solution is 100% compatible with the Wireless M-Bus standard (EN13757-3 and EN13757-4), and fits in perfectly with this
open standard's philosophy where all the information required for decoding frames is present in the frame header.
2. AMR PULSE
IMPORTANT NOTE: the AMR PULSE can only be started or restarted using a magnet.
Description
•
ADEUNIS RF's AMR PULSE is a ready to use radio transmitter that can be used to transform any type of meter into a wireless meter (smart
meter).
•
Connection to meters (water, gas, electric, heat) is simple via a system that is compatible with pulse interfaces. Configuration is intuitive via
mechanical switches.
•
Two meters may be controlled by a single Adeunis RF AMR PULSE transmitter thus permitting a significant reduction in implementation and
deployment costs.
•
An embedded application is used to adjust the data transmission cycle, manage consumption history and to provide information concer-
ning leaks and alerts concerning fraud.
•
This document contains essential recommendations for the optimal implementation of ADEUNIS RF's AMR products. Following these
recommendations will enable you to obtain communication over the distances advertised by the manufacturer according to the model
chosen.
•
AMR PULSE transmitters use a Lithium battery guaranteeing a product life in excess of 12 years under normal conditions of use. These
products are 100% compatible with the European Wireless M-Bus protocol (EN13757-4 andEN13757-3), and use T1 mode at a frequency
of 868.950MHz.
IMPORTANT NOTE: by default, the AMR PULSE uses T1 mode (868.950MHz frequency)
Package composition
The product is supplied in a cardboard package containing the following elements:
•
Upper case, electronic board, case plate.
•
Compression gland with nut, 3 compression seals, 2 CBLZ 2.2 x 19mm screws, 2 Fischer SX4 plugs.
Case plate
Antenna
2 channels for
clamping collars
4 holes for fixing
screws
DIN-Rail unlocking
lever

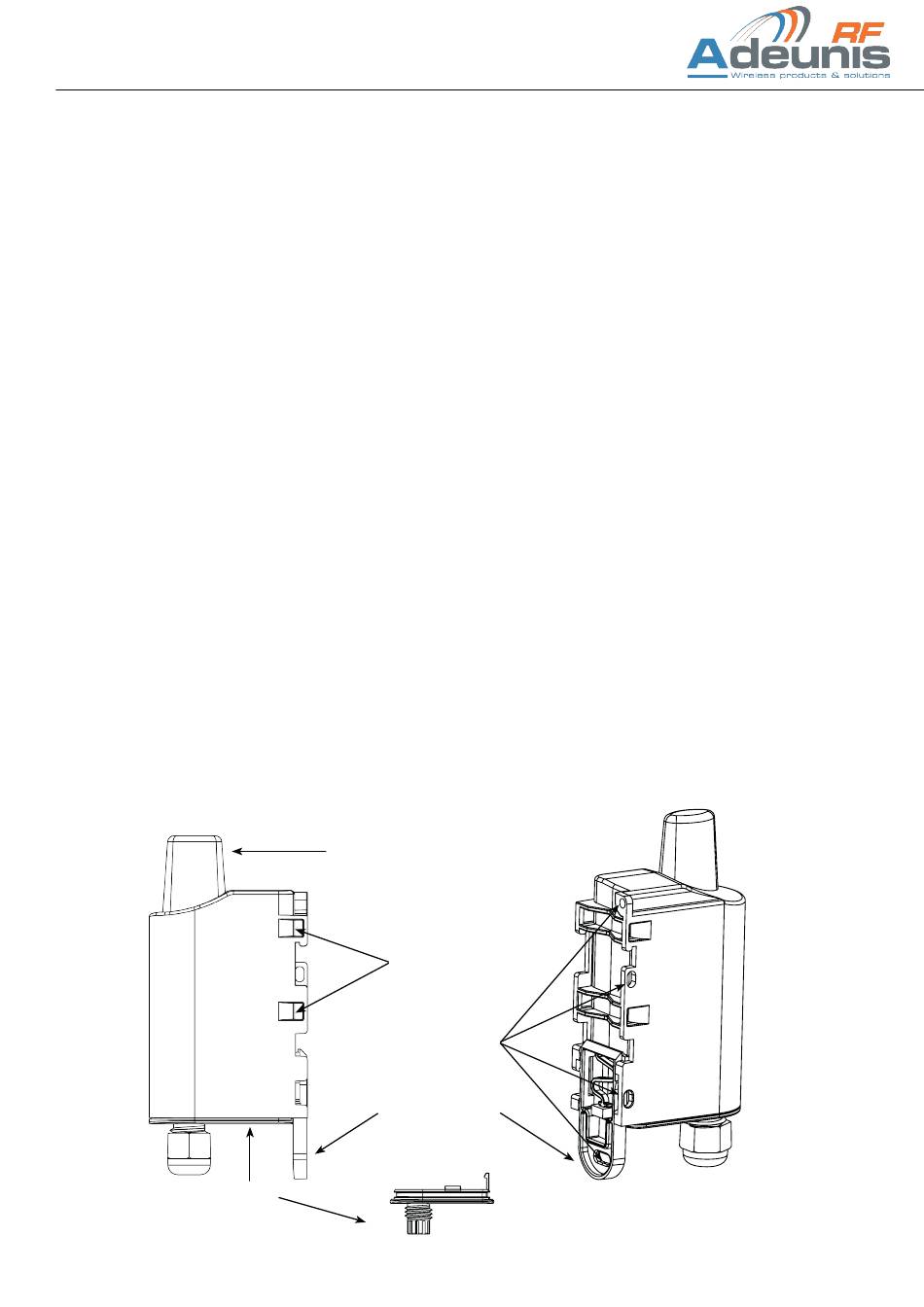

Case plate details
Cable outlet
compression
gland
Page
30
of 44
