INSTALLATION AND CONNECTIONS

Attach the rear part of the housing to the wall using the plugs and screws supplied. Pass the cables through the bottom of the
receiver. Connect the power cables to the terminals marked in the mother board, as indicated. Install the receiver, close to the
door and avoid metal surfaces between the receiver and the transmitter RADIOBAND. Pass the cables through the bottom of the
receiver. Program transmitters and transmitters RADIOBAND as programming section. Fix the front of the receiver to the back with
the screws supplied for the purpose.
1- Power supply 12/24V AC/DC: (+)
2- Power supply 12/24V AC/DC: (-)
3,4- R1: Connection to the safety band input of the control panel (resistive contact 8.2k) with jumper in position BS1. Or to the
control panel safety contact input (NC) with jumper in position CS1.
5,6- R2: Connection to a second safety band input of the control panel (resistive contact 8.2k) with jumper in position BS2. Or to the
control panel safety contact input (NC) with jumper in position CS2.
7- AUTOTEST: Common connection safety self-test (-). See Figure and table POLARIZED SELF-TEST.
8- AUTOTEST: Self-test connection for R1. See Figure and table POLARIZED AUTO-TEST.
9- AUTOTEST: Self-test connection for R2. See Figure and table POLARIZED AUTO-TEST.
10, 11- R1: Relay 1 output RADIO receiver
12, 13- R2: Relay 2 output RADIO receiver
RBMOTION

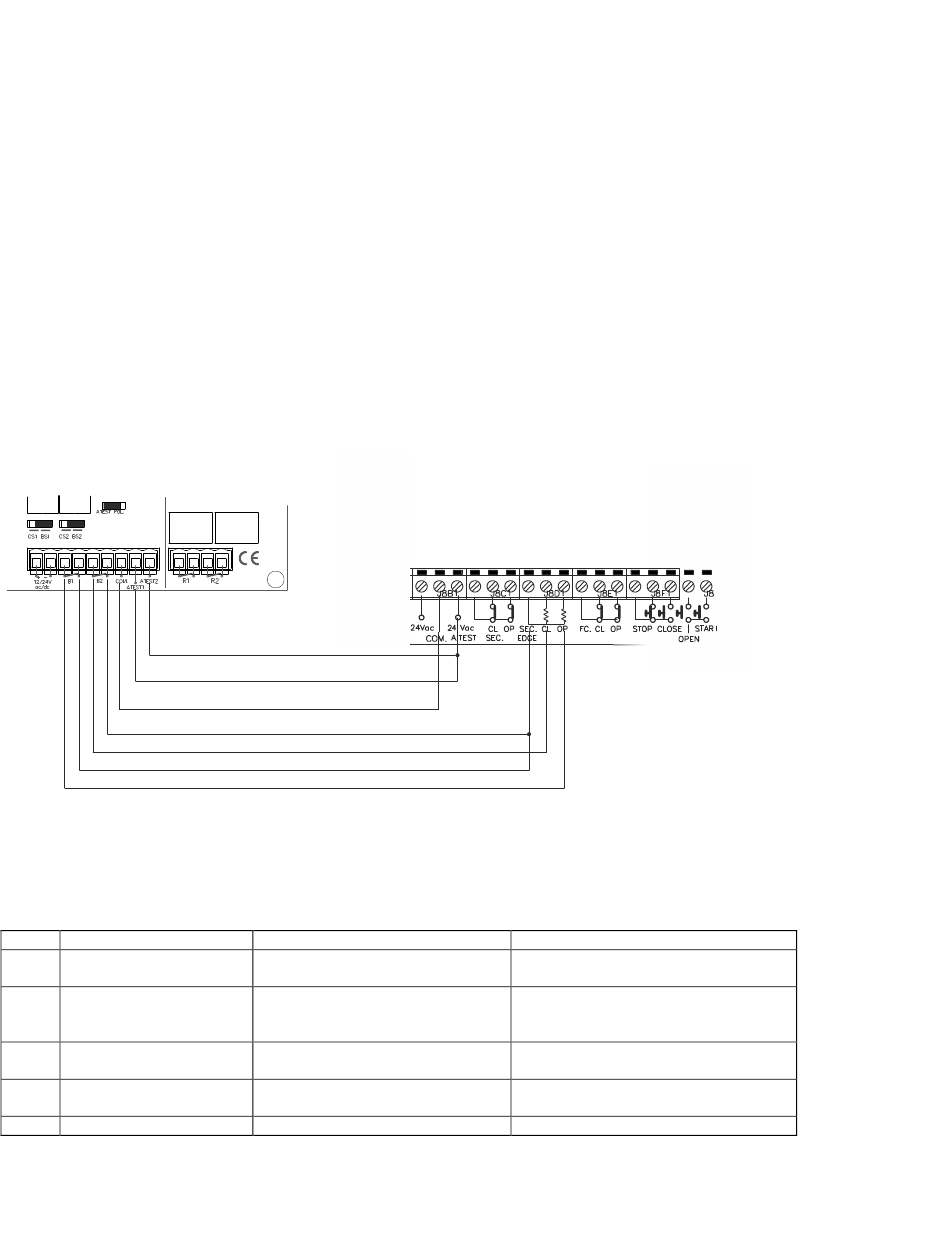

TWO SAFETY EDGES CONNECTION WITH
NEGATIVE POLARIZATION AUTOTEST

LIGHT INDICATORS

Led ON
R1 Relay R1 Activation
R2/LB Relay R2 Activation/
Indicates if the transmitter
has low battery
B1 Relay B1 Activation or
band not connected
B2 Relay B2 Activation or
band not connected
CHECK

OPERATING

The pilot lights are activated every 5 seconds to indicate the correct supply of power to the equipment.
RBMOT30 / RBMOT500
OFF
R1 desactivated, state by default
R2 desactivated, state by default/
Indicates if the transmitter„s battery is
working properly
B1 desactivated, correct safety edge
state
B2 desactivated, correct safety edge
state
CONTROL PANEL
Flashing
Every 5 seconds, correct supply of the
equipment
Every 5 seconds, correct supply of the
equipment
Coverage (See CHECK funcftion)
