GENERAL DESCRIPTION

This equipment consists of 30 or 500 codes MOTION receiver and receiver to RADIOBAND 1G system.

TECHNICAL CHARACTERISTICS

Frequency
Coding
Memory
Supply
Power supply range
Number of relays
Relay contacts
Standby/Op. consumption
Self-test input
Radiated power
Op. temperature
Watertightness
Size
Box dimensions
Range (guaranteed)

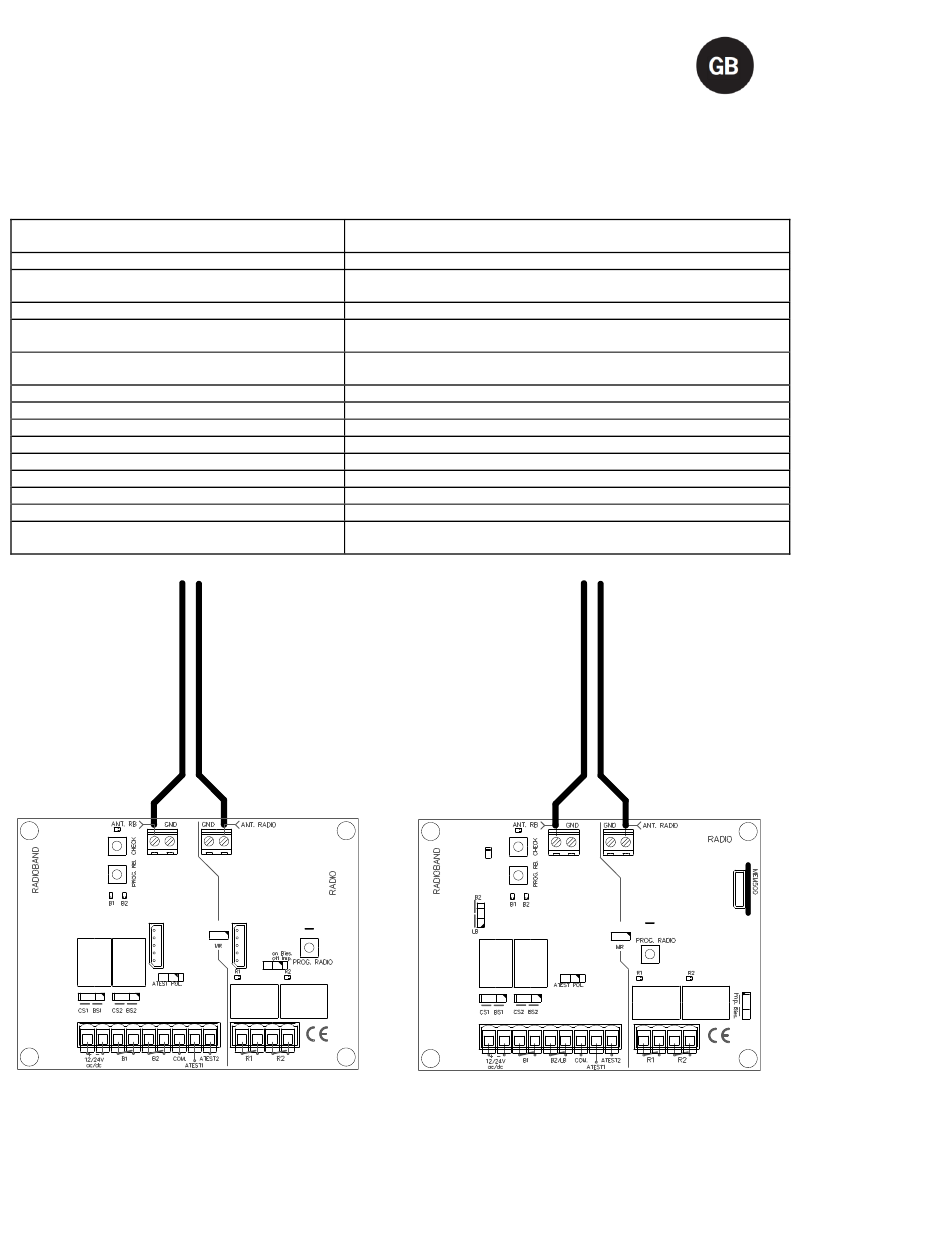

1 2 3 4 5 6 7 8 9
RBMOT30 / RBMOT500
MOTION: 868,35MHz
RADIOBAND1G: 868,90MHz
High security rolling code
RBMOT30: 30 codes / RBMOT500: 500 codes
RADIOBAND1G: Ex. 6 RADIOBAND/TBX (3 on relay 1, 3 on relay 2)
12/24V ac/dc
9-24 / 21-35V dc
8-16 / 15-28V ac
MOTION: 2 relays (R1 and R2)
RADIOBAND1G: 2 relays (B1 and B2)
1A
RBMOT30: 18mA / 115mA / RBMOT500: 22mA/244mA
2 0/12/24V AC/DC inputs with selectable polarity
< 25mW
-20ºC to +70ºC
IP54 (with glands IP65)
63x55x15mm
140x220x55mm
MOTION: 100m
RADIOBAND1G: 10m
