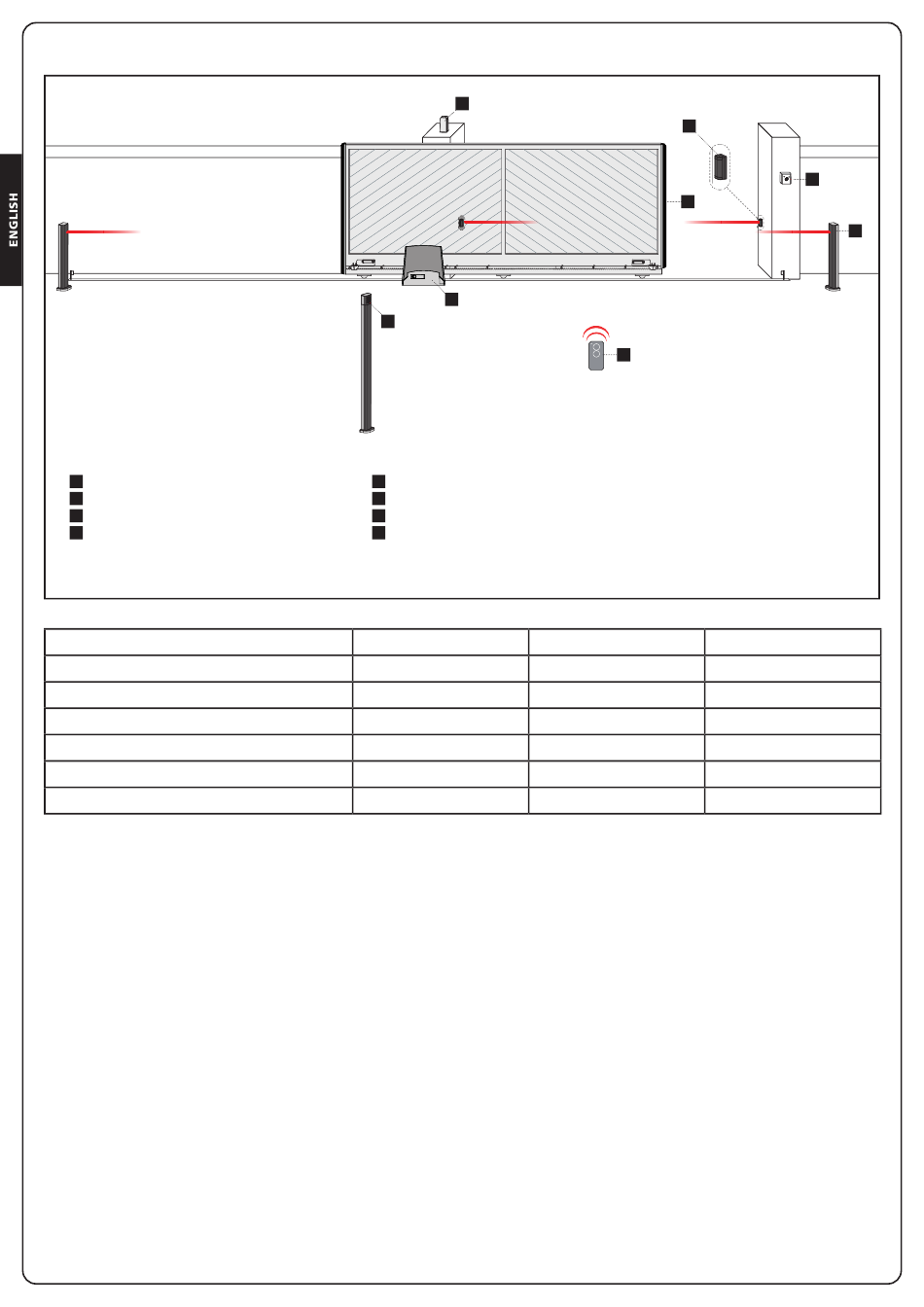

3.6 - INSTALLATION LAYOUT
COMPONENTS
1
Motor
Transmitter
2
Photocells
3
Flashing light
4
LENGTH OF THE CABLE
Power supply 230V/120V
Photocells (TX)
Photocells (RX)
Key switch
Flashing light
Antenna (integrated into the flashing light)
All manuals and user guides at all-guides.com
4
1
3
C
ADDITIONAL ACCESSORIES
A
Key switch
Pillar photocells
B
Pillar-mounted digital radio switch
C
Safety edges
D
< 10 metres
3G x 1,5 mm
2
2 x 0,5 mm
2
4 x 0,5 mm
2
2 x 0,5 mm
2
2 x 1,5 mm
2
RG174
- 30 -
E
2
from 10 to 20 metres
3G x 1,5 mm
2
2 x 0,5 mm
2
4 x 0,5 mm
2
2 x 0,5 mm
2
2 x 1,5 mm
2
RG174
3
A
D
B
from 20 to 30 metres
3G x 2,5 mm
2
2 x 0,5 mm
2
4 x 0,5 mm
2
2 x 0,5 mm
2
2 x 1,5 mm
2
RG174
