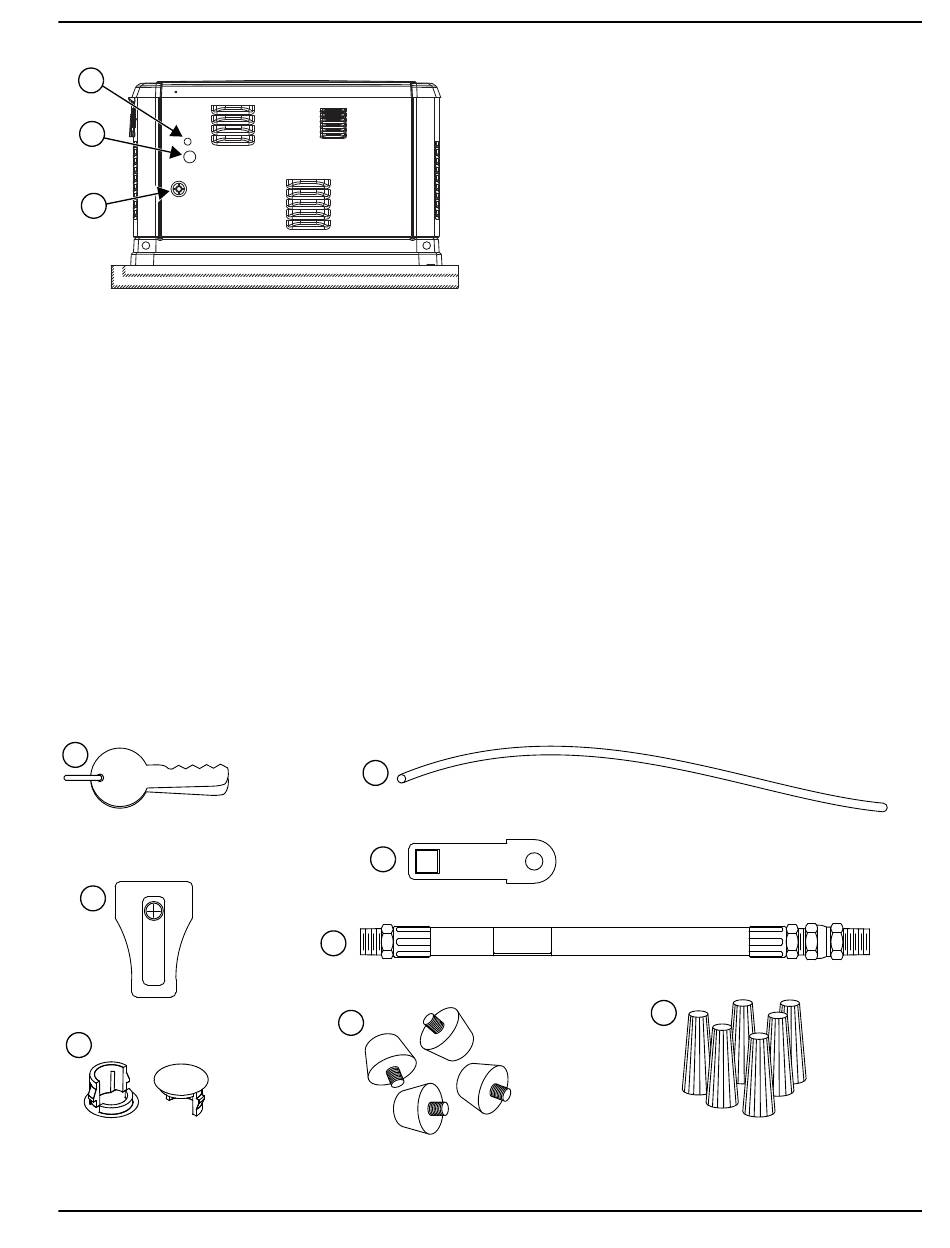

A. Main AC/Control Wiring hole for 3/4 inch conduit
B. Main AC/Control Wiring hole for 1-1/4 inch conduit
C. Fuel Connection Hole
Figure 2-6. Rear of Generator

Parts Shipped Loose

See Figure 2-5. Parts shipped loose are located in a
clear plastic bag inside the battery compartment. The
flexible fuel line (6) is tied to either the battery wires or
the alternator can.
1. Keys
2. Battery Terminal Cap
3. Main Line Circuit Breaker (MLCB) Terminal Caps
4. Wire Shielding to separate AC from DC control
wires
1
2
3
Owner's Manual for 60 Hz Synergy Generator™
001376
4
5
6
7
Figure 2-7. Parts Shipped Loose
5. Main Line Circuit Breaker (MLCB) Locking
Mechanism
6. Flexible Fuel Line
7. Rubber Mounts (only for units that include fascia)
8. Wire Nuts (for pre-wired switches only)
9. Installation and Owner's Manuals (not shown)
8
Unpacking and Inspection
000926
