Motor

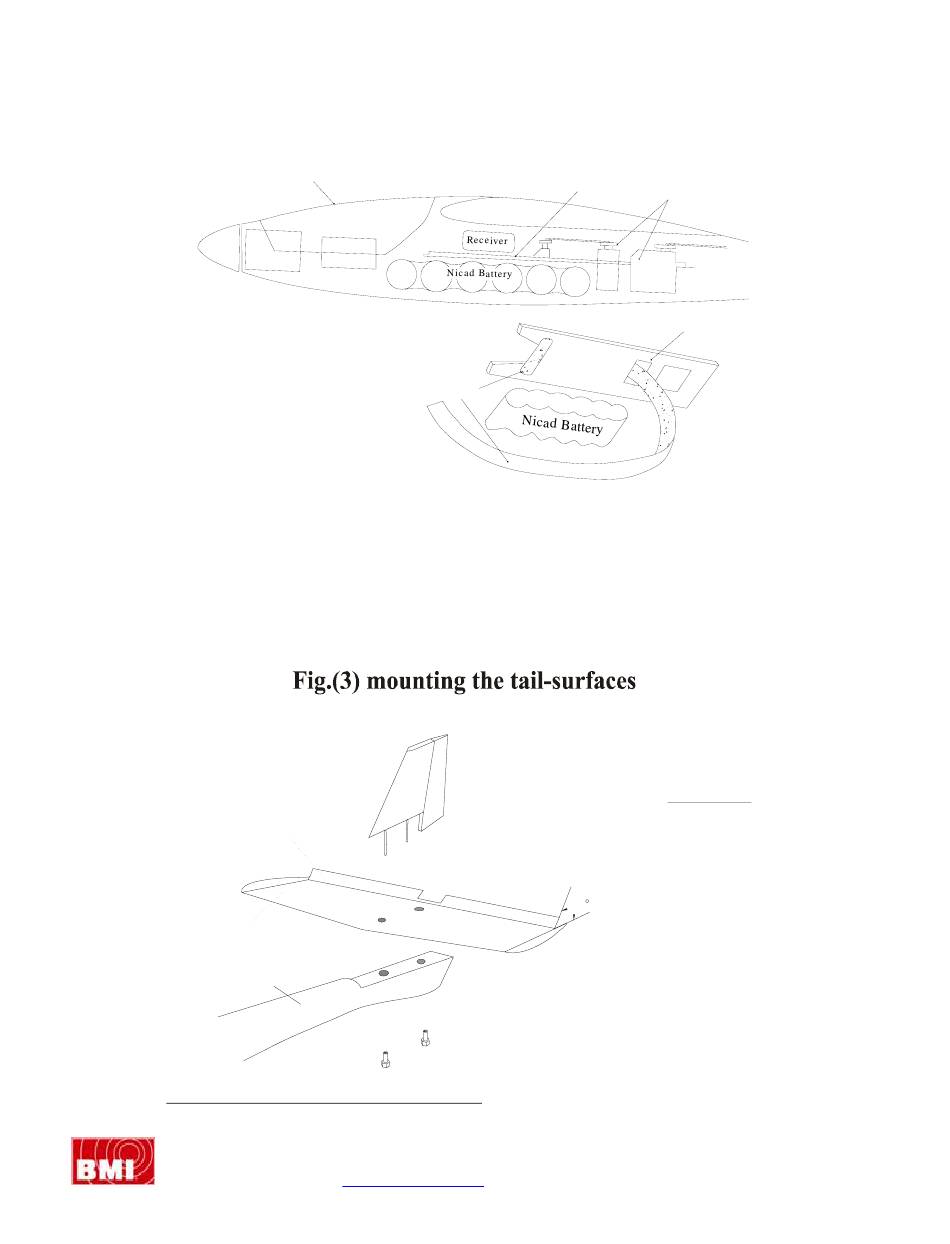

(2) Assembling and mounting the tail-surfaces
a. Fix the elevator horn and rudder horn in place. There are two small holes factory-made to locate the position
of the horns.)
b. To mount the tail surfaces onto the tail end of fuselage, you should first insert the two long bolts (built-in the
fin) through the two holes in the stabilizer. Nevertheless, it is impossible to do this unless YOU TURN
THE ELEVATOR 90 DEGREES UPWARD as shown. 3).
c.
Tighten the two long plastic nuts from beneath the tail end of the fuselage to fix the complete tail-surfaces
in place.
Elevator
Stabilizer
Fuselage
1. The elevator/rudder push-rod connections:
Connect the "Z-end" of the elevator/rudder push-rod to the servo horn and the clevis to the
All manuals and user guides at all-guides.com
Fig.(2) Radio installation
Romove canopy to get
Access to power-pack
Speed
con troller
Velcro straps
Fin
Elevator
Nylon nuts
www.bmi-models.com
Servo-tray
Seryos
tray
Important:
To insert the two long bolts
of the fin into the holes in
the stabilizer,you should
first turn the elevator90
degrees upward.
40
3
