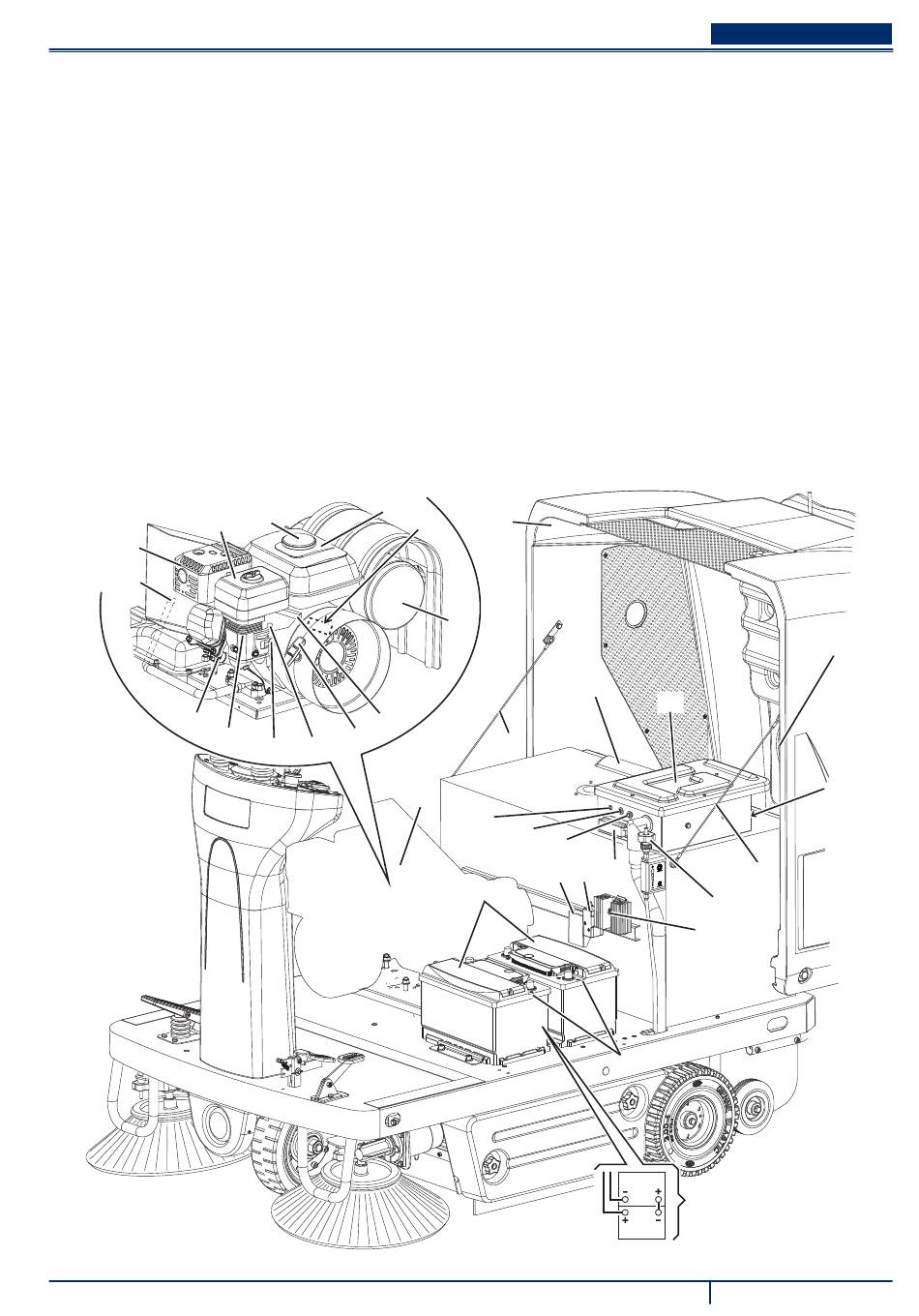

MACHINE NOMENCLATURE (Continues)
41. Hood (open)
42. Hood support tie rods
43. Batteries
44. Battery connection diagram
45. Battery caps
46. Lamellar fuse box
47. Main broom motor fuse
48. Side broom motor fuse
49. Drive system malfunction led
If the led is on, the drive system is operating, if the led
fl ashes, the drive system is malfunctioning.
50. Electrical component box
51. Drive system electronic board
52. Air baffl e plate
53. Silencer
54. Manual vacuum system (optional)
59
53
58
57
56
1464031000(1)2009-04 A
60
61
70
66
69
68 67
56
USER MANUAL
55. Main broom height adjusting knob
56. Petrol engine
57. Engine oil fi ller/level check plug
58. Engine oil drain plug
59. Engine air fi lter
60. Fuel tank
61. Fuel tank plug
62. Dynamotor (starter and dynamo)
63. Charging system fuse
64. Engine electromagnetic switch
65. Diode
66. Throttle lever (do not use it!)
67. Fuel tap (do not use it!)
68. Choke lever (do not use it!)
69. Engine manual starting cord (do not use it!)
70. Petrol engine model and serial number
