CONTROL PANEL

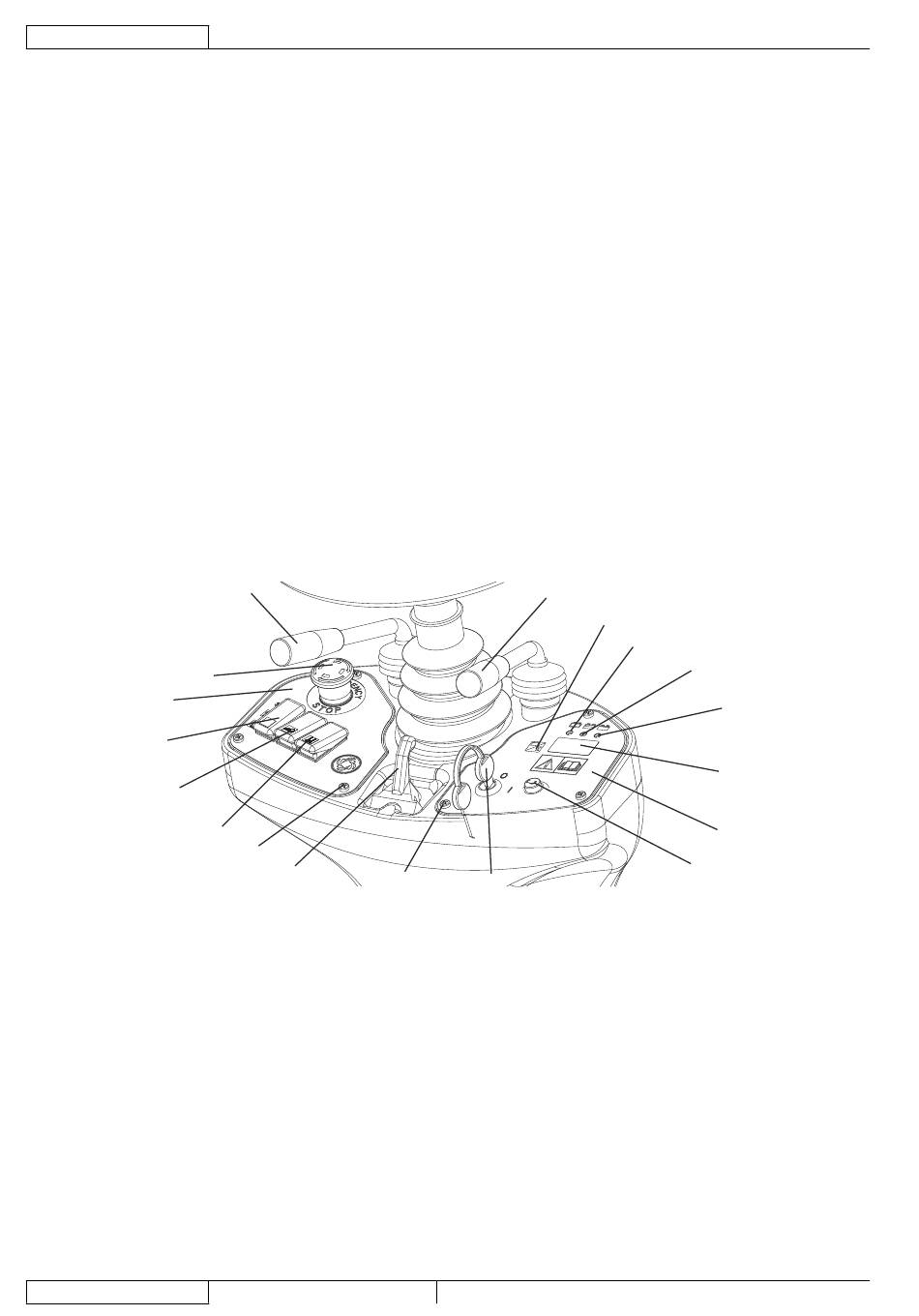

71. Left control panel
72. Ignition key (when turned to "0" it turns the machine off and disables all functions; when turned to "I" it enables all machine
functions; it also turns on the fl ashing light)
73. Discharged battery warning light (red). When it is on, the batteries are discharged. The autonomy is over, the batteries must be
recharged (see the procedure in the relevant paragraph).
74. Semi-discharged battery warning light (yellow). When it is on, the batteries are semi-discharged. Residual autonomy is few
minutes.
75. Charged battery warning light (green). When it is on, the batteries are charged. Residual autonomy depends on battery
capacity and working conditions.
76. Display. When pressed, it shows in sequence:
• Working hours
• Last digit of the hours - (dot) - minutes
• Battery voltage (V)
77. Display selection push-button: hour counter/hour and minute counter/battery voltage (V)
78. Horn switch
79. Vacuum fan/fi lter shaker switch
80. Manual vacuum system additional hole switch (optional)
81. Working light switch (optional)
82. Emergency push-button
Press it in case of emergency to stop all the machine functions. To deactivate the emergency push-button, turn it in the
direction shown by the arrow.
83. Panel fastening screws
84. Right control panel
85. Left and right side broom lifting/lowering lever
86. Main broom lifting/lowering lever
87. Steering wheel adjusting lever
82
71
79
81

ACCESSORIES/OPTIONS

In addition to the standard components, the machine can be equipped with the following accessories/options, according to the
machine specifi c use:
– GEL batteries
– Main and side brooms with harder or softer bristles
– Antistatic polyester or polyester BIA C dust fi lter
– Manual vacuum system
– Working light
– Flashing light
– Skirts of various materials
– Protective roof
For further information concerning the optional accessories, contact an authorised Retailer.
