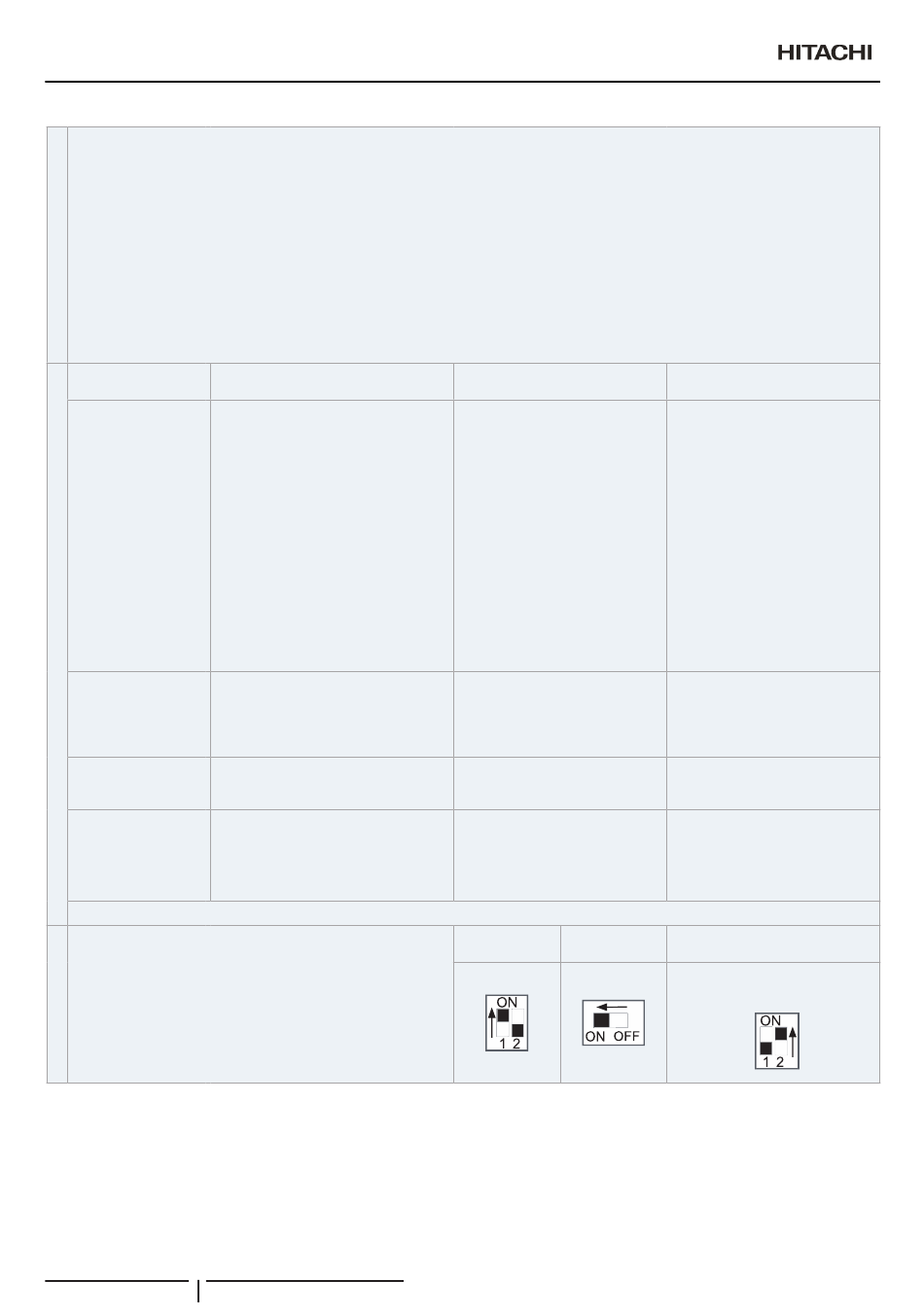

COMMISSIONING
Depress RUN/STOP switch.
a. The TEST RUN operation will be started. (The 2 hours OFF-TIMER will be set and the TEST RUN operation will be finished after 2
hours unit operation or by depressing the RUN/STOP switch again).
?
N O T E
•
TEST RUN operation ignores the temperature limitation and ambient temperature during heating operation to have a continuous
operation, but the protections are alive. Therefore, the protection may activate when the heating TEST RUN operation is performed
in high ambient temperature.
•
TEST RUN operation time can be modifyed / increased depressing the time switch in the Remote Control.
b. If the unit do not start or the operation lamp on the remote control switch is flickered, some abnormalities exist. →Go to
Remote Control
Switch Indication
The operation lamp
flickers (1 time/1 sec.)
The unit does not start.
and the unit Nº and
alarm Code "03" flicker
The operation lamp
The unit does not start.
flickers (1 time/2 sec.)
Indication of Flicker
The unit does not start, or start once and
except above
then stops
The operation lamp
Flickers (1 Time/1s)
The unit does not start.
Unit nº , Alarm
Code and Unit
Code 00 flicker
1
Back to after checking
Instructions fot the recovery when the fuse of the transmission
circuit is blown out:
1
Correct the wiring to the terminal board.
2
Set the 1st pin of DSW7 on the indoor unit PCB to ON
Set the DSW7 on the indoor unit PCB to ON
(Only RPK-1.0/1.5)
22
PMML0390B REV.0 - 11/2015 - P5416649
Unit Condition
The power source of Outdoor Unit
in not turned ON.
The connecting wires of operating
line are incorrect or loosened.
Remote control cable is broken.
Contact of connectors is not good.
The connection of remote control
cable is incorrect
The connection of thermistor or
other connectors are incorrect.
Tripping of protector exists, or else.
The connection of the remote
control cable between Indoor Units
is incorrect.
Wrong Portions
Except
Only
RPK 1.0/1.5
RPK-1.0/1.5
Inspection Points after Power
Source OFF
1
Connecting Order of each
Terminal Board.
2
Screw fastening of each
Terminal Boards.
?
N O T E
Recovering method of FUSE for
operating circuit. There is a fuse
(FUSE4 on Indoor Unit PCB1, EF1
on Outdoor Unit PCB1) to protect
operating circuit on the PCB, when
the power lines are connected to
operating lines. If fuse is melted,
operating circuit can be recovered
once by setting the dip switch on the
PCB as shown in
1
This is the same as item 1
and 2
Check by the abnormality mode
table in the Technical Catalogue
(Do it by service people).
Check by the abnormality mode
table in the Technical Catalog (Do it
by service people).
Outdoor PCB
DSW10
