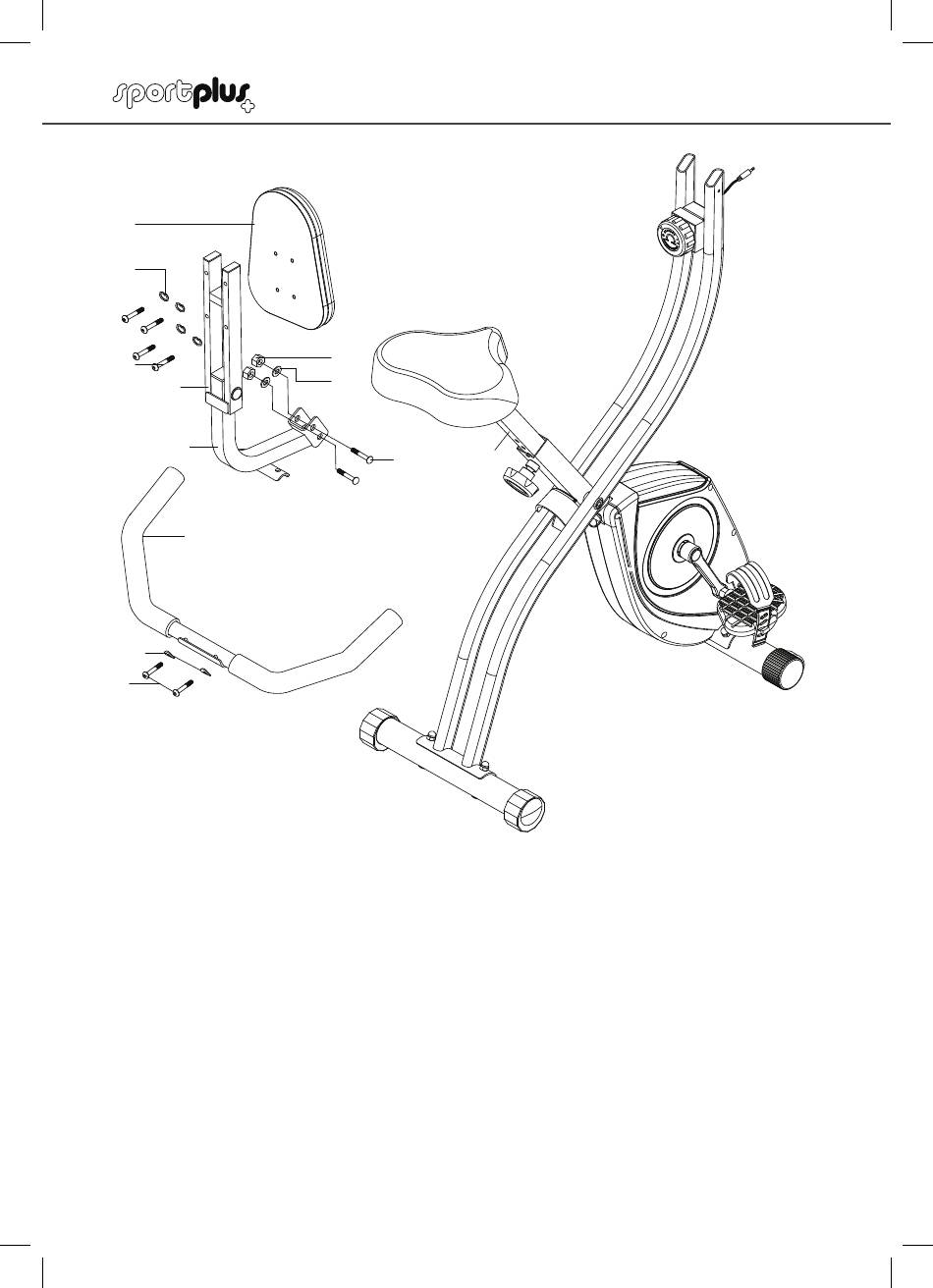

STEP 5:
• Slide the lower backrest mount (24) onto the seat pillar (3). Secure the connection
with 2 sets of carriage bolts (23), washers (25) and locking nuts (26). Attach the
backrest (30) to the backrest mount (27). Secure the connection with
screws (28) and spring washers (29).
• Attach the rear handle (22) to the lower backrest mount (24) and secure the
connection with
SP-HT-1003-IM-V03-INT.indb 32
26
25
23
2 sets of screws (20) and curved washers (21).
