1. To adjust the rotation, pull out the quick release pin (Detail ʺBʺ).
2. Move the trapeze to the desired position. There are three holes to choose from as shown in Detail ʺCʺ.
3. Let go of the quick release pin once the trapeze is in the desired position. You should hear an audible ʺclickʺ as the quick
release pin enters one of the three holes and locks into place.
Ensure that the quick release pin is securely locked in place BEFORE using the trapeze,
otherwise injury may occur.
DETAIL "C"
Three Options for
Trapeze Rotation
A-Frame without Mast
NOTE: Adjustment holes are not visible
when Trapeze is fully assembled.
Trapeze Placement
NOTE: For this procedure, refer to FIGURE 3.
1. Position the trapeze at the head of the bed so the boom
tube hangs over the bed.
NOTE: Trapeze base positioning is dependant upon width of the
bed.
WARNING
After positioning unit, ensure locking casters
on the bed assembly are in the locked position.
Failure to lock bed casters can result in bed
movement during trapeze use and result in
possible injury or property damage.
Part No 1106663
WARNING
DETAIL "B"
Quick
Release
Pin

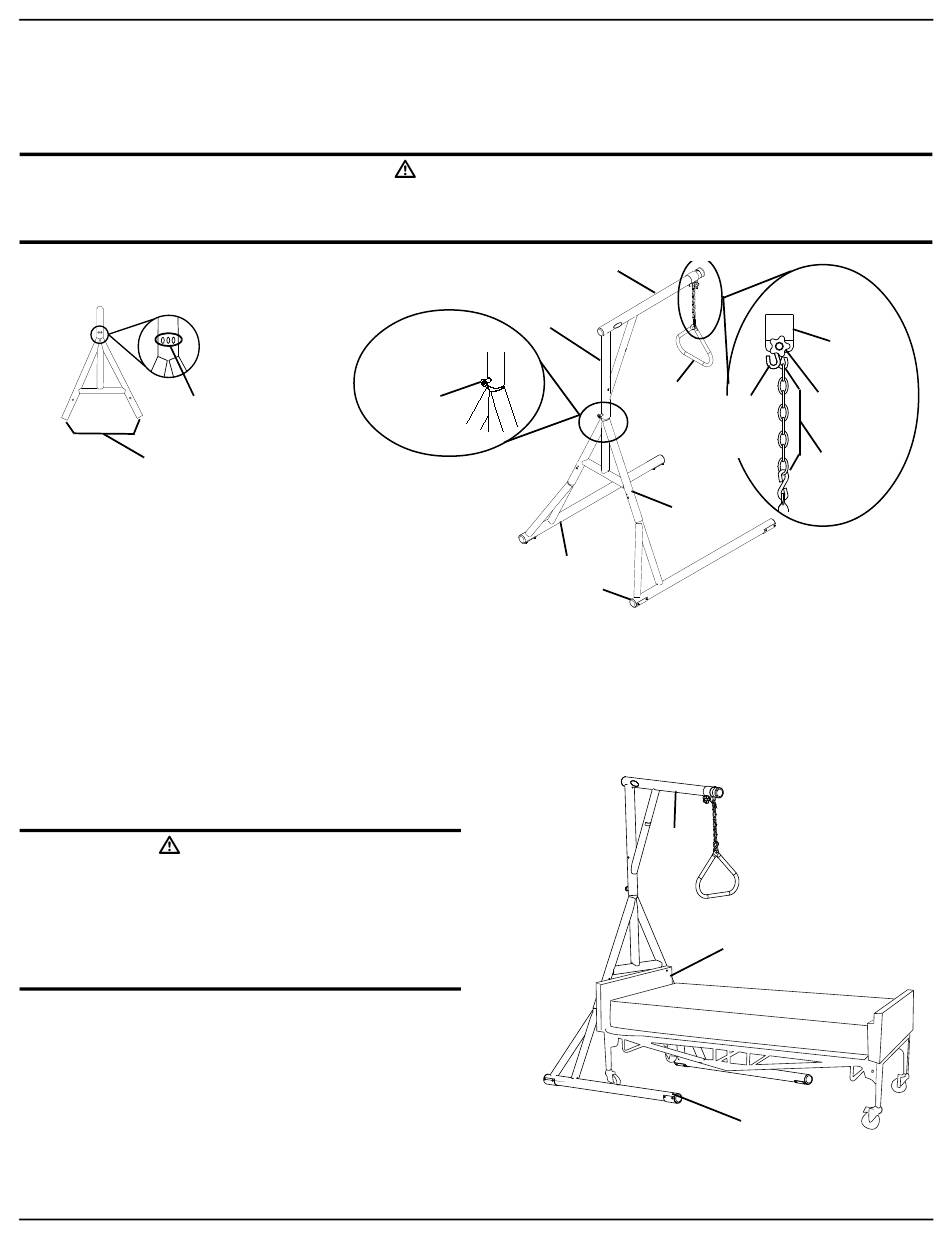

FIGURE 2 Adjusting the Trapeze
3
Boom Tube
Mast
Grab
Bar
A-Frame
Base
Assemblies
Boom
Tube
FIGURE 3 Trapeze Placement
DETAIL
"A"
Trapeze
Clamp
Trapeze
Free
Knob
"S"
Hook
Chain
Links
Head of Bed
Base
Assembly
Bariatric Trapeze
