PREPARE THE CEILING
OPENING
The hood should always be centered over the
cooktop. Make sure there is adequate space
in the ceiling structure to install the hood and
ductwork. The hood should be mounted 48"
to 84" above the cook top for best removal of
cooking impurities. Fig 6.

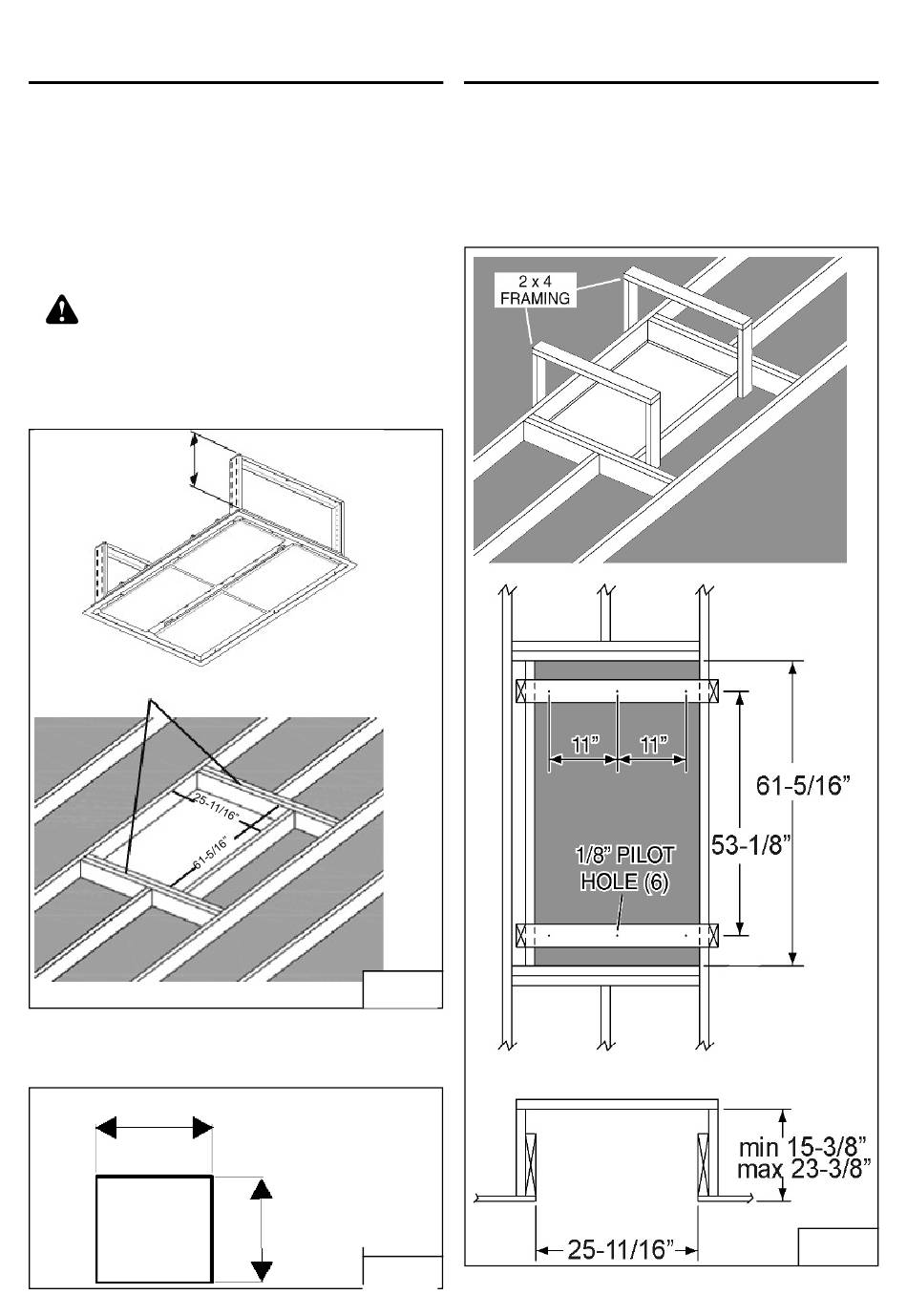

Use joist size lumber to frame in around the
range hood opening. Fig 9.
The ceiling structure must be able to
support the weight of the hood.
CC34IQ63SB Model: 105 pounds weight.
CC34IQT63SB Model: 121 pounds weight.
min. 15-3/8"
max. 23-3/8"
DOUBLE HEADERS
For Non-Ducted version:
Make a cut-out in the ceiling for the air return
vent. See Fig. 10 below and Fig. 24.
9-13/16"
FIG. 9
9-13/16"
FIG. 10
- 12 -
PREPARE THE HOOD
SUPPORT
1. Construct a wood framing system as shown
in Fig. 11.
2. The structure must be capable of support-
ing its own weight, plus the weight of the
hood.
FIG.11
