Location Of Controls; Back View; Main Unit - SOUNDMASTER SCD1700 Manuel D'instructions

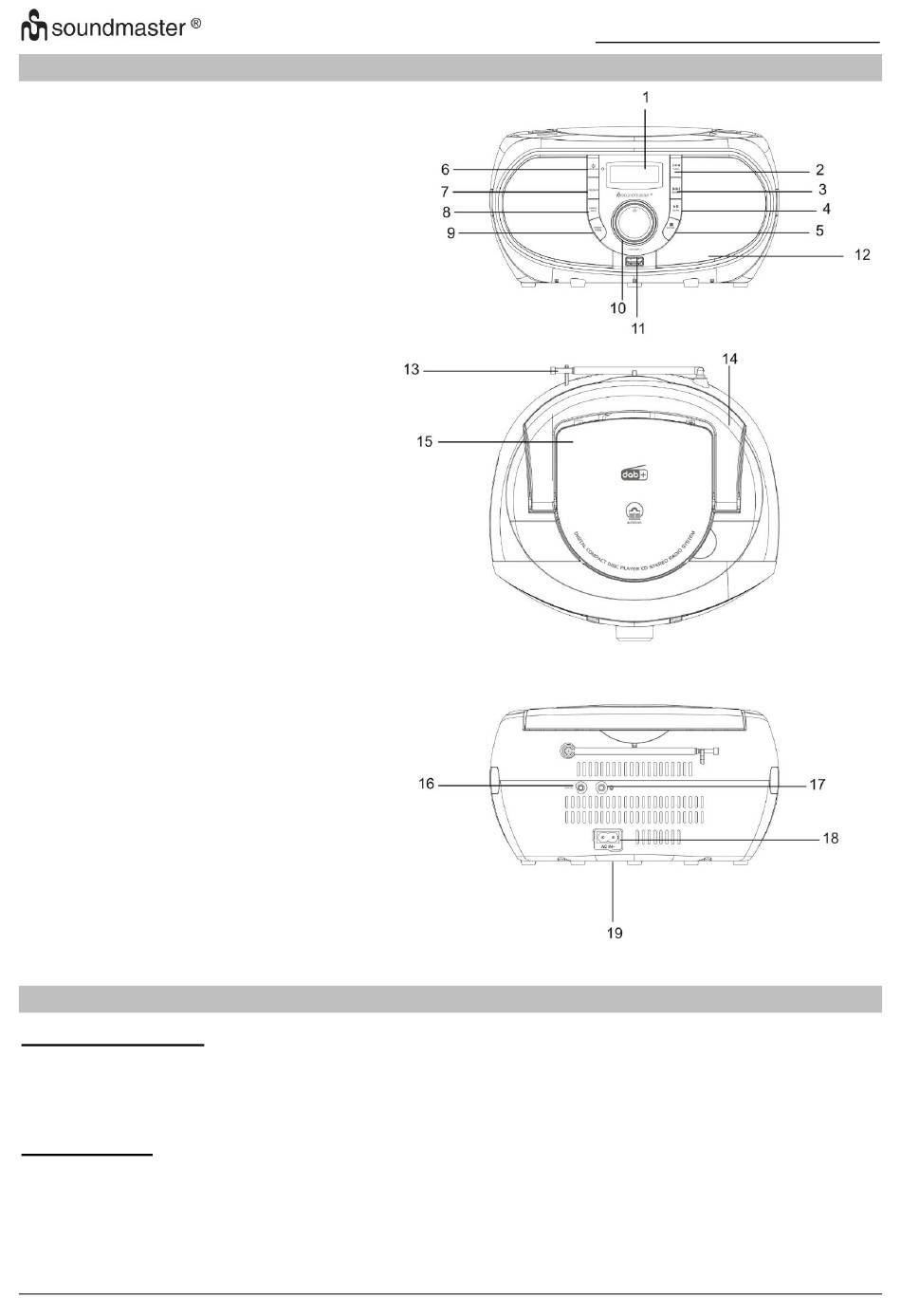

FRONT VIEW
1 LCD DISPLAY
2 SKIP- / TUNE-
3 SKIP+ / TUNE+
4 PLAY / PAUSE / SCAN
5 STOP / ENTER
6 STANDBY / SOURCE
7 FOLDER
8 MENU / INFO
9 MODE / PROGRAM
10 VOLUME - / +
11 USB PORT
12 SPEAKER
TOP VIEW
13 ANTENNA
14 HANDLE
15 CD DOOR

BACK VIEW

16 AUX IN
17 HEADPHONE JACK
18 AC SOCKET
19 BATTERY COMPARTMENT
Content of delivery

➢ Main unit

➢ AC power cable
Power supply
➢ Ensure that the voltage is the same as that indicated on the main unit identification plate.
➢ Connect the supplied AC power cable to a properly installed safety power socket and the
plug of the cable into the AC socket at the back side of the unit.
