Instructions for building In

For problem-free functioning of the built-in appliance, the
kitchen unit or the recess into which the appliance is built
must have suitable dimensions.
In accordance with the regulations in force, all parts which
ensure the shock protection of live and insulated parts
must be fastened in such a way that they cannot be undone
without tools.
These also include the fixing of any end walls at the
beginning or end of a line of built-in units.
The shock protection must in any case be ensured by the
building in of the appliance.
The appliance can be placed with its back or a side wall
against higher kitchen units, appliances or walls. However,
only other appliances or units of the same height as the
appliance can be placed against the other side wall.

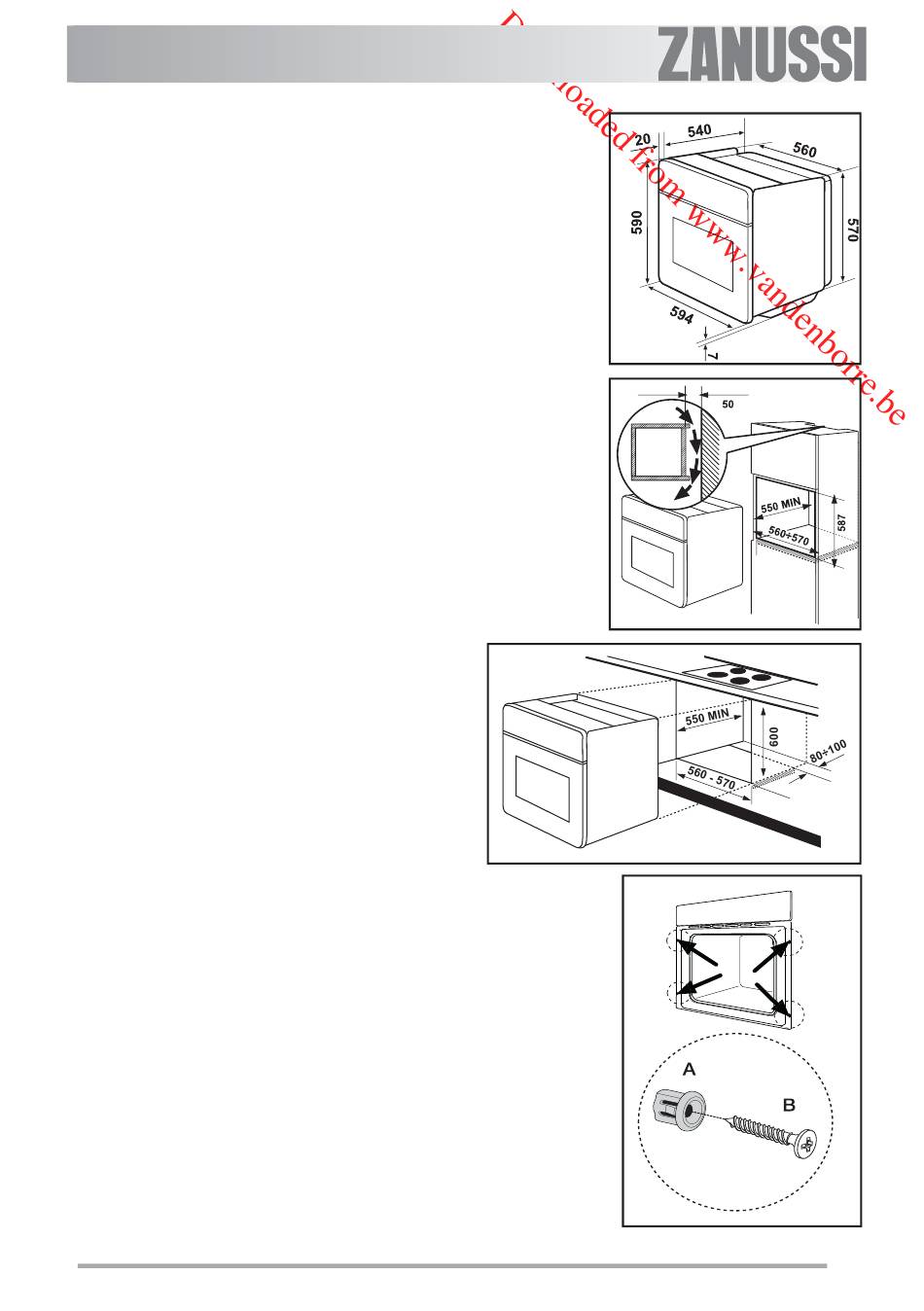

Oven dimensions (Fig. A)
Instructions for Building In
For problem-free functioning of the built-in appliance, the
kitchen unit or the recess into which the appliance is built
must have suitable dimensions (Fig. B-C).
Securing the Appliance to the Cabinet
1. Open the oven door.
2. Fasten the oven to the cabinet placing the four distance
holders provided with the appliance (Fig.D - A) which
fit exactly into the holes in the frame and then fit four
wood screws (Fig. D - B).
When installing a hob over the oven, the hob electrical
connection and the oven one have to be carried out
separately for security reasons and to let the oven be
taken off the cabinet easier, if necessary. Any
extensions must be made with cables suitable for the
required power.
