Altrad BELLE RTX RAMMERS Manuel De L'opérateur page 40

RTX 50 & 60
1
2
1
4
3

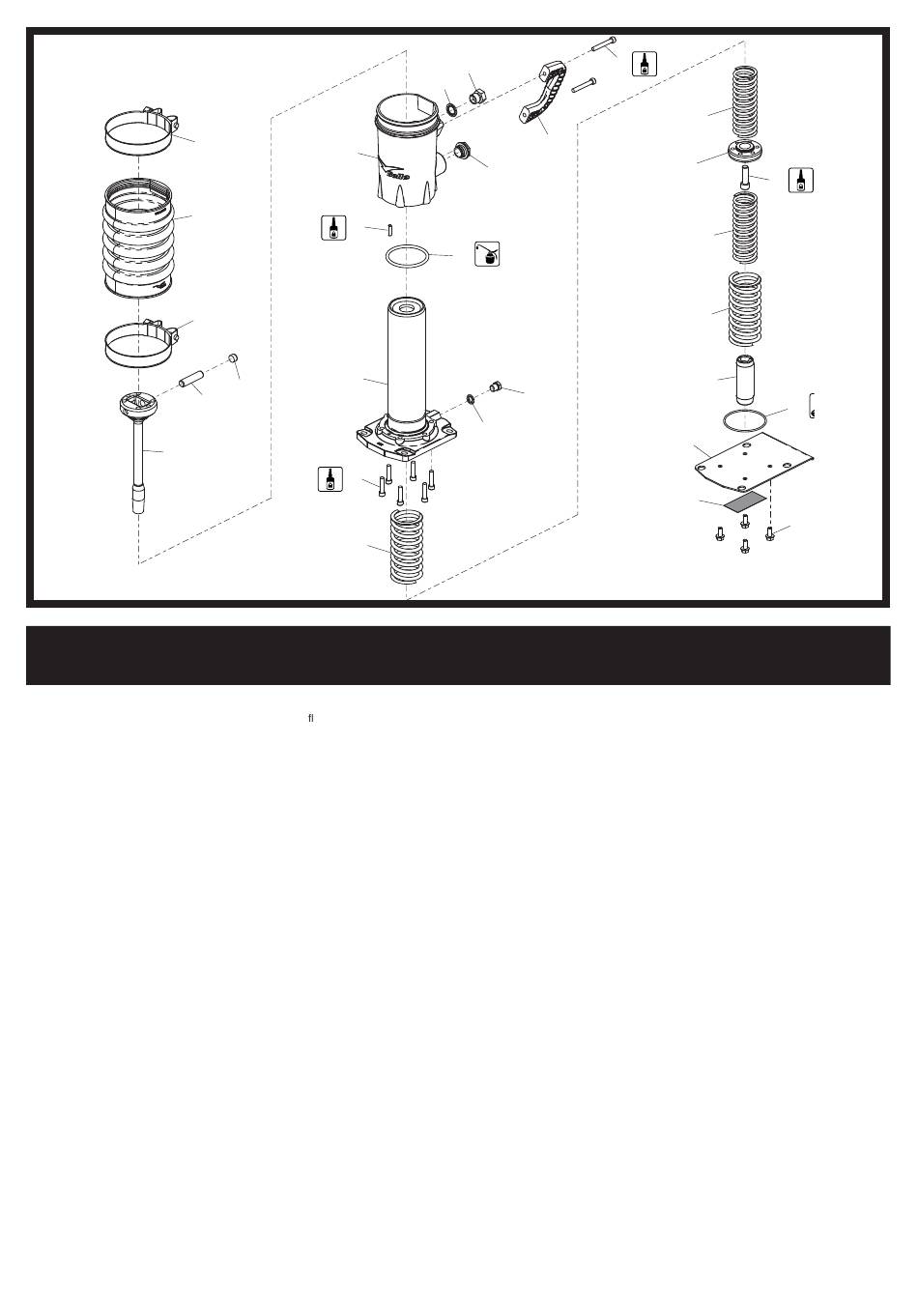

Leg Assembly, Ensemble de Jambes,
Conjunto de Piernas, Conjunto de Pernas
1 3/7051 ................. Clamp ............................Serrage ............................ Mordaza ...................................Grampo ......................................................................................2
2 980/99913 ........... Bellows ..........................Souf et ............................ Fuelles .....................................Fole ............................................................................................1
3 980/00302 ........... Piston Rod .....................Piston .............................. Pistón .......................................Pistão .........................................................................................1
4 980/00303 ........... Dowel .............................Goujon Prisonnier ............ Clavija ......................................Espigão ......................................................................................1
5 980/00204 ........... Cap ................................Capuchon ........................ Casquete..................................Tampa ........................................................................................1
6 980/99915 ........... Lower Support Casting ..Pièce Moulée Support Inférieur .......................................................................................................................................................1
7 5/0002 ................. Seal ................................Joint d'étanchéité ............ Obturador .................................Vedação ........................................ 1/2" ......................................1
8 10-601-0800 ........ Plug ................................Bougie ............................ Tapón .......................................Bujão ............................................. 1/2" ......................................1
9 7/8029 ................. Screw .............................Vis ................................... Tornillo .....................................Parafuse ........................................ M8 x 55 ...............................2
980/99902 ........... Handle ...........................Guidon ............................. Manillar ....................................Punho .........................................................................................1
10
11 40/00005 ............. Gauge ............................Jauge ............................... Calibrar ....................................Ajuizar ........................................................................................1
5/0076 ................. O-Ring ...........................Jeu Joint torique .............. Juego Junta tórica....................Jogo Anel Vedante ........................ 99.3 x 5.7 ............................1
12
13 3/8004 ................. Dowel .............................Goujon Prisonnier ............ Clavija ......................................Espigão ......................................... 6 x 25 ..................................1
980/00400 ........... Tube ...............................Tube ................................ Tubo .........................................Tubo ...........................................................................................1
14
15 MS12 ................... Bung ..............................Obturateur ...................... Tapón .......................................Tampão ......................................................................................1
16 5/0011 ................. Seal ................................Joint d'étanchéité ............ Obturador .................................Vedação ........................................ 1/4" ......................................1
17 7/8032 ................. Screw .............................Vis ................................... Tornillo .....................................Parafuse ........................................ M8 x 35 ...............................8
2/0067 ................. Spring ............................Ressort ............................ Resorte ....................................Mola ............................................................................................2
18
2/0066 ................. Spring ............................Ressort ............................ Resorte ....................................Mola ............................................................................................2
19
980/00301 ........... Boss ...............................Bossage .......................... Resalte .....................................Cubo ...........................................................................................1
20
21 7/12010 ............... Screw .............................Vis ................................... Tornillo .....................................Parafuse ........................................ M12 x 40 .............................1
22 980/99975 ........... Stop Moulding ...............................................................................................................................................................................................................1
5/0074 ................. O-Ring ...........................Jeu Joint torique .............. Juego Junta tórica....................Jogo Anel Vedante ........................ 84.5 x 3 ...............................1
23
980/99914 ........... Plate ...............................Plaque ............................. Placa ........................................Placa ..........................................................................................1
24
25 7/8037 ................. Screw .............................Vis ................................... Tornillo .....................................Parafuse ........................................ M8 x 20 ..............................4
26 800/99619 ........... Decal .............................Autocollant ...................... Rótulo ......................................Decalque ....................................... Caution - Springs ................1
6
13
14
5
17
18
8
7
10
11
12
15
16
318
9
19
20
21
19
18
22
23
24
26
25
4-01
