Machine Description; Environment; Intended Use - Altrad BELLE RTX RAMMERS Manuel De L'opérateur

Table des Matières

Publicité

Les langues disponibles

Les langues disponibles

1
14
6
10
RTX 50 / 66 / 74
1. Fuel Tank.
2. Throttle Lever.
3. Fuel ON / OFF Lever.
4. Engine.
5. Stop Button.
6. Crankcase.
Safe Disposal
Instructions for the protection of the environment.
The machine contains valuable materials. Take
the discarded apparatus and accessories to the
relevant recycling facilities.
This machine is intended for base preperation, driveways, foundations, kerbs, and footings. It can also be used for repair work on
streets, highways and/or sidewalks/pavements.

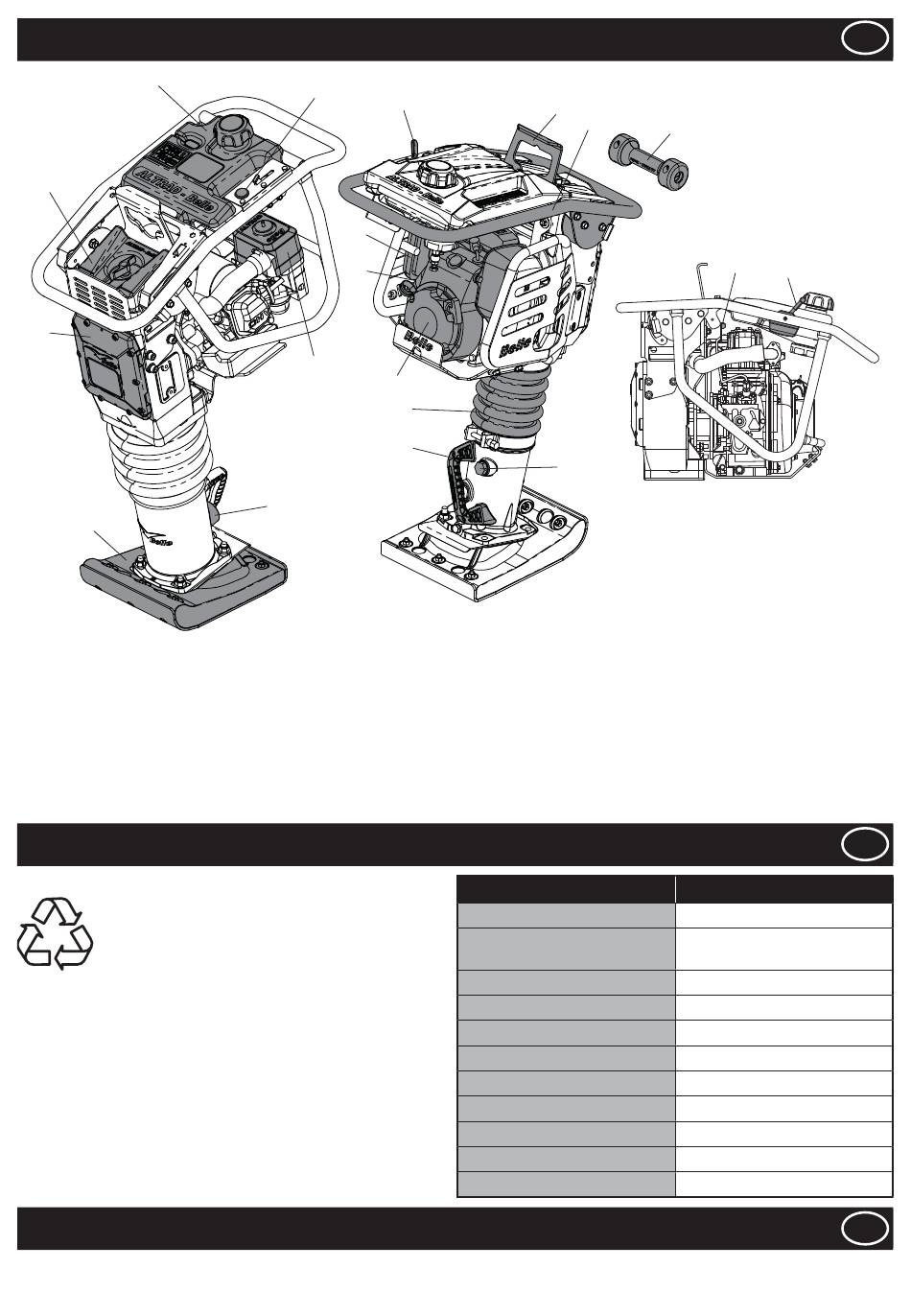

Machine Description

5
2
12
3
12
4
7
13
15
RTX 60 / 68 / 70
7. Bellows
8. Lifting Eye.
9. Leg Oil Plug.
10. Ramming Shoe.
11. Operating Handle.
12. Primary Air Cleaner

Environment

Intended Use

8
11
9
13. Lifting Handle
14. Secondary Air Cleaner (Dual)
15. Leg Oil Sight Glass
16. Transport Roller (Optional)
17. Decompression Lever
Component
Handle
Ramming Shoe
Rubber Isolators
Bellows
Crankcase
Crankcase Cover
Gears
Engine
Transport Roller
Miscellaneous Plastic Parts
Various Parts
7
16
17
2
RTX 80D
Material
Steel
Plywood and Steel or Nylon
and Steel
Rubber and Steel
Urethane
Aluminium
Aluminium
Steel
Steel and Aluminium
HDPE
Polypropylene
Steel and Aluminium
GB
GB
GB
