INSTALLATION &

OPERATION

MANUAL

–

INDOOR UNITS SYSTEM FREE

Wall mounted type

MODELS

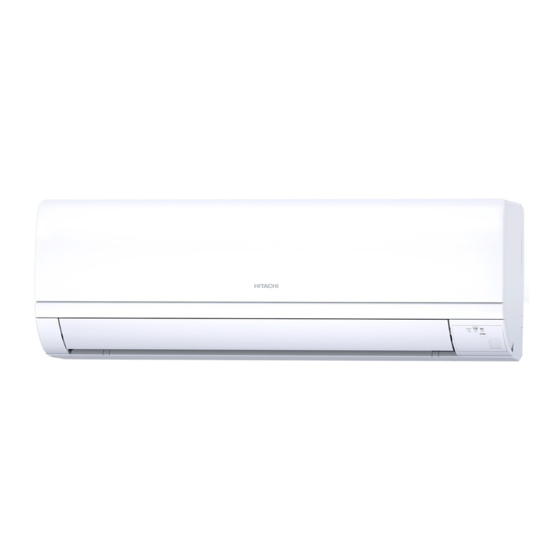

RPK-(0.4-4.0)FSR(H)M

INSTALLATION AND OPERATION MANUAL

MANUAL DE INSTALACIÓN Y FUNCIONAMIENTO

INSTALLATIONS- UND BETRIEBSHANDBUCH

MANUEL D'INSTALLATION ET DE FONCTIONNEMENT

MANUALE D'INSTALLAZIONE E D'USOI

MANUAL DE INSTALAÇÃO E DE FUNCIONAMENTO

INSTALLATIONS- OG BETJENINGSVEJLEDNING

INSTALLATIE- EN BEDIENINGSHANDLEIDING

INSTALLATION- OCH DRIFTHANDBOK

ΕΓΧΕΙΡΙΔΙΟ ΕΓΚΑΤΑΣΤΑΣΗΣ ΚΑΙ ΛΕΙΤΟΥΡΓΙΑΣ

PMML0552 rev.1 - 02/2021 - A10635790A

N &

REE

РЪКОВОДСТВО ЗА ИНСТАЛИРАНЕ И ЕКСПЛОАТАЦИЯ

NÁVOD K MONTÁŽI A OBSLUZE

PAIGALDUS- JA KASUTUSJUHEND

TELEPÍTÉSI ÉS ÜZEMELTETÉSI ÚTMUTATÓ

UZSTĀDĪŠANAS UN EKSPLUATĀCIJAS ROKASGRĀMATA

MONTAVIMO IR NAUDOJIMO VADOVĄ

INSTRUKCJA MONTAŻU I OBSŁUGI

MANUAL DE INSTALARE SI OPERARE

ИНСТРУКЦИЯ ПО МОНТАЖУ И ЭКСПЛУАТАЦИИ

Sommaire des Matières pour Hitachi RPK-0.4FSRM

Page 1 – INSTALLATION & N & OPERATION MANUAL – INDOOR UNITS SYSTEM FREE Wall mounted type MODELS RPK-(0.4-4.0)FSR(H)M INSTALLATION AND OPERATION MANUAL РЪКОВОДСТВО ЗА ИНСТАЛИРАНЕ И ЕКСПЛОАТАЦИЯ MANUAL DE INSTALACIÓN Y FUNCIONAMIENTO NÁVOD K MONTÁŽI A OBSLUZE INSTALLATIONS- UND BETRIEBSHANDBUCH PAIGALDUS- JA KASUTUSJUHEND MANUEL D’INSTALLATION ET DE FONCTIONNEMENT TELEPÍTÉSI ÉS ÜZEMELTETÉSI ÚTMUTATÓ...
Page 3 Specifikationerna i den här handboken kan ändras utan föregående meddelande för att Hitachi ska kunna leverera de senaste innovationerna till kunderna. Vi på Hitachi gör allt vi kan för att se till att alla specifikationer stämmer, men vi har ingen kontroll över tryckfel och kan därför inte hållas ansvariga för den typen av fel.
Page 4 τελευταίες καινοτομίες στους πελάτες της. Αν και έχει γίνει κάθε προσπάθεια προκειμένου να εξασφαλιστεί ότι οι προδιαγραφές είναι σωστές, η Hitachi δεν μπορεί να ελέγξει τα τυπογραφικά λάθη και, ως εκ τούτου, δεν φέρει καμία ευθύνη για αυτά τα λάθη.
Page 5 AT T E N T I O N This product shall not be mixed with general house waste at the end of its life and it shall be retired according to the appropria- ted local or national regulations in a environmentally correct way. Due to the refrigerant, oil and other components contained in Air Conditioner, its dismantling must be done by a professional installer according to the applicable regulations.
Page 6 Π Ρ Ο Σ Ο Χ Η Σημαίνει ότι το προϊόν δεν θα πρέπει να αναμιχθεί με τα διάφορα οικιακά απορρίμματα στο τέλος του κύκλου ζωής του και θα πρέπει να αποσυρθεί σύμφωνα με τους κατάλληλους τοπικούς ή εθνικούς κανονισμούς και με τρόπο φιλικό προς το...
Page 7 R 3 2 English VORSICHT WA R N I N G Dieses auf dem Gerät angezeigte Symbol zeigt an, dass dieses Gerät ein entzündbares Kältemittel verwendet. Bei einem Kältemit- BURST HAZARD telaustritt besteht die Gefahr der Entzündung, wenn das Kältemittel Do not allow air or any gas mixture containing oxygen into refriger- in Kontakt mit einer äußeren Zündquelle kommt.
Page 8 R 3 2 AVVERTENZA WAARSCHUWING Per ulteriori informazioni, consultare il Manuale d’installazione e Dit symbool op het apparaat geeft aan dat het apparaat is gevuld d’uso. met R32, een geurloos ontvlambaar koelmiddel met een lage brandsnelheid (klasse A2L volgens ISO 817). Als het koelmiddel lekt, kan het ontbranden wanneer het in contact komt met een ex- Português terne ontstekingsbron.
Page 9 R 3 2 Eesti ΠΡΟΣΟΧΗ H O I AT U S Αυτό το σύμβολο που εμφανίζεται στη μονάδα δείχνει ότι υπάρχουν σχετικές πληροφορίες στο εγχειρίδιο λειτουργίας και/ή στο εγχειρίδιο LÕHKEMISOHT εγκατάστασης. Ärge laske jahutussüsteemi (s.o torustikku) õhku või gaasisegu, mis sisaldab hapnikku. ΠΡΟΣΟΧΗ...
Page 10 R 3 2 Română UZMANĪBU AV E R T I S M E N T Šis uz ierīces redzamais simbols norāda, ka ar šo ierīci drīkst rīkoties tikai pilnvarots servisa personāls, atsaucoties uz uzstādīšanas PERICOL DE DEFLAGRAȚIE rokasgrāmatu. Nu permiteți pătrunderea aerului sau oricărui amestec de gaz care conține oxigen în ciclul agentului frigorific (adică...
Page 11 EXPLOSIONSGEFAHR bundled with the outdoor unit. In case that the CD- Der Kompressor muss abgeschaltet werden, bevor die Kälte- ROM is missing or it is not readable, please contact mittelleitungen entfernt werden. your HITACHI dealer or distributor. Alle Betriebsventile müssen nach dem Abpumpbetrieb voll- • PLEASE READ MANUALS AND THE FILES ON ständig geschlossen sein. THE CD-ROM CAREFULLY BEFORE STARTING • Stellen Sie sicher, dass die Anlageninstallation und WORK ON THE INSTALLATION OF THE AIR die Kältemittelleitungsinstallation die anwendbare...
Page 12 Manuale di installazione vous trouverez l’information supplémentaire à propos CD-ROM Manuale du produit acquis. Si vous n’avez pas ce CD-ROM Manuale di sicurezza aggiuntivo per d’installazione où il est illisible contactez avec votre fournisseur ou climatizzatore e pompa di calore con e d’uso distributeur HITACHI. refrigerante R32 in conformità con la norma IEC 60335-2-40:2018 • VEUILLEZ LIRE LE MANUEL ET LES FICHIERS DU CD-ROM ATTENTIVEMENT AVANT DE COMMEN- CER LES TRAVAUX D’INSTALLATION DU SYSTÈME Português DE CONDITIONNEMENT D’AIR. Le non-respect des RISCO DE EXPLOSÃO instructions d’installation, d’utilisation et de fonctionne-...
Page 13 • Försäkra att installation av enheten och kylrör uppfyller medføre driftsfejl, alvorlige defekter eller ødelæggelse tillämpbara bestämmelser för varje land. Inom Europa af klimaanlægget. så måste man även uppfylla EN378 som tillämpbar standard. • Kontroller, at alle de oplysninger, der er nødvendige for en korrekt montering af systemet, findes i manualerne • Ytterligare information om den förvärvade produkten til indendørs- og udendørsenhederne. Hvis dette ikke finns på en CD-ROM som medföljer utomhusenheten. er tilfældet, skal du kontakte din distributør. Om CD-ROM saknas eller är oläslig, vänligen kontakta er HITACHI-handlare eller återförsäljare. Indendørs enhed Udendørs enhed • LÄS IGENOM HANDBOKEN NOGGRANT Installationsmanual INNAN DU PÅBÖRJAR INSTALLATIONEN CD-ROM Installations- og AV LUFTKONDITIONDSYSTEMET. Om inte Ekstra sikkerhedsmanual til klimaanlæg betjeningsvejledning instruktionerna för installation, användning och drift og varmepumpe med R32-kølemiddel i som beskrivs i denna dokumentation följs kan det leda...
Page 14 όλες οι απαιτούμενες πληροφορίες για τη σωστή neboť jde o příslušnou normu. εγκατάσταση του συστήματος. Αν δεν περιλαμβάνονται, • Doplňkové informace o zakoupených produktech jsou επικοινωνήστε με το διανομέα σας. dodávány na disku CD-ROM, který lze nalézt přiložený k venkovní jednotce. Pokud CD-ROM chybí nebo Εσωτερική μονάδα Εξωτερική μονάδα není čitelný, obraťte se na prodejce nebo distributora Οδηγίες εγκατάστασης společnosti Hitachi. Εγχειριδιο CD-ROM • NEŽ ZAČNETE S INSTALACÍ KLIMATIZAČNÍHO Εγκαταστασης Και Επιπλέον οδηγίες ασφάλειας για ψυκτικό SYSTÉMU, PŘEČTĚTE SI, PROSÍM, DŮKLADNĚ Λειτουργιας κλιματιστικού R32 και αντλία θέρμανσης NÁVODY A SOUBORY NA CD-ROMU. Nedodržení σύμφωνα με το IEC 60335-2-40:2018 pokynů pro instalaci, použití a provoz popsaných v této dokumentaci může mít za následek selhání provozu...
Page 15 Papildu drošības rokasgrāmata R32 un lietošanas aukstumaģentam gaisa kondicionierim • A megvásárolt termékre vonatkozó további információt rokasgrāmata un siltumsūknim saskaņā ar a kültéri egységhez mellékelt CD-ROM tartalmazza. IEC 60335-2-40:2018 Hiányzó vagy nem olvasható CD-ROM esetén kérjük, forduljon a Hitachi kereskedőjéhez vagy forgalmazójához. Lietuviškai • KÉRJÜK, HASZNÁLAT ELŐTT OLVASSA EL AZ SPROGIMO RIZIKA ÚTMUTATÓKAT ÉS A CD-ROMON TALÁLHATÓ Prieš ištuštinant aušinimo medžiagos vamzdžius turi būti TUDNIVALÓKAT A LÉGKONDICIONÁLÓ sustabdytas kompresorius.
Page 16 • Dodatkowe informacje o nabytym produkcie znajdują informațiile necesare pentru instalarea corectă a się na płycie CD-ROM, która została dołączona do sistemului. În caz contrar, contactați distribuitorul. jednostki zewnętrznej. Jeżeli w komplecie brakuje tej Unitate płyty lub nie nie jest możliwe jej odczytanie, prosimy o Unitate exterioară interioară skontaktowanie się z przedstawicielem handlowym lub Manual de instalare dystrybutorem firmy Hitachi. CD-ROM Manual de • PRZED PRZYSTĄPIENIEM DO MONTAŻU Manual de siguranță suplimentar pentru instalare si INSTALACJI KLIMATYZACYJNEJ, NALEŻY aparatul de aer condiționat cu agent operare ZAPOZNAĆ SIĘ TREŚCIĄ NINIEJSZEJ INSTRUKCJI frigorific R32 și pompă de căldură conform ORAZ ZAWARTOŚCIĄ DOŁĄCZONEJ PŁYTY IEC 60335-2-40:2018 CD-ROM. Nieprzestrzeganie prezentowanych tutaj...
Page 17 R 3 2 English Deutsch R32 Kältemittelkreislauf R32 Refrigerant circuit Die Anlageninstallation und die Kältemittelleitungen The unit installation and refrigerant piping should comply müssen die entsprechenden lokalen und nationalen with the relevant local and national regulations for the Vorschriften für das konzipierte Kältemittel einhalten. designed refrigerant. Wegen des Kältemittels R32 und abhängig von Due to R32 refrigerant and depending on final refrigerant der endgültigen Kältemittelmenge, muss eine charge amount, a minimum floor area for installation must Mindestbodenfläche für die Installation berücksichtigt be considered. werden. • If total refrigerant charge amount <1.84kg, there are no • Wenn die Gesamtkältemittelmenge <1,84 kg beträgt, additional minimum floor area requirements. gibt es keine zusätzlichen Anforderungen an die • If total refrigerant charge amount ≥1.84kg, there are Mindestbodenfläche. additional minimum floor area requirements to be • Wenn die Gesamtkältemittelmenge ≥1,84 kg checked. beträgt, gibt es zusätzliche Anforderungen an die Minimum area requirements Mindestbodenfläche, die geprüft werden müssen.
Page 18 R 3 2 Italiano Dansk Circuito del refrigerante R32 R32 Kølemiddelkredsløb L’installazione dell’unità e quella della linea del refrigerante Installationen af enheden og af kølemiddelrørene skal devono essere conformi alle normative locali e nazionali overholde alle relevante lokale og nationale forskrifter for relative al refrigerante progettato. det pågældende kølemiddel. A causa del refrigerante R32 e in base alla quantità finale Som følge af R32 og afhængig af den endelige mængde di carica di refrigerante, deve essere considerata una af kølemiddel påfyldt, skal installationen have et mindste superficie minima di pavimento per l’installazione. gulvareal. • Se la quantità totale di carica di refrigerante è <1,84 kg, • Hvis samlet mængde af påfyldt kølemiddel er <1,84 kg, non ci sono ulteriori requisiti di superficie minima per il kræves der ikke noget ekstra gulvareal. pavimento. • Hvis samlet mængde af påfyldt kølemiddel er ≥1,84 kg, • Se la quantità totale di carica di refrigerante è ≥1,84 kg, skal krav til ekstra gulvareal tages i betragtning. devono essere verificati ulteriori requisiti di superficie Krav til mindsterareal minima per il pavimento.
Page 19 R 3 2 Svenska Български R32 Kylkrets Кръг на хладилния агент R32 Installationen av enhet och kylrör måste uppfylla alla Монтажът на изделието и тръбите за хладилния агент relevanta lokala och nationella bestämmelser för det следва да съответстват на съответните разпоредби в avsedda kylmedlet. страната, отнасящи се за предназначения за изделието хладилен агент. På grund av kylmedlet R32 och beroende på slutlig mängd kylmedel, så måste en minsta golvyta för installation Минималната площ за монтажа трябва да се съобрази beaktas. с хладилния агент R32 и с крайното количество хладилен заряд. • Om den totala mängden kylmedel understiger 1,84 kg så krävs ingen ytterligare minsta golvyta. • Ако общото количество хладилен заряд <1,84 kg, към минималната площ за монтажа няма • Om den totala mängden kylmedel uppnår eller допълнителни изисквания. överstiger 1,84 kg så den minsta golvytan kontrolleras. • Ако общото количество хладилен заряд ≥1,84 kg, Krav på minsta yta трябва да се провери какви допълнителни...
Page 20 R 3 2 Více informací o chladivové náplni naleznete v Návodu k instalaci A hűtőközeg mennyiségére vonatkozó további információkért lásd venkovní jednotky. a kültéri egység Telepítési útmutatóját. Eesti Latviešu R32 Jahutussüsteem R32 Aukstumaģenta kontūrs Seadme paigaldus ja jahutustorustik peab olema Ierīces uzstādīšanai un aukstumaģenta cauruļvadiem vastavuses ette nähtud jahutusvahendile kehtivate jāatbilst attiecīgajiem vietējiem un nacionālajiem asjakohaste kohalike ja üleriigiliste eeskirjadega. noteikumiem par projektēto aukstumaģentu. Jahutusvahendi R32 tõttu ja olenevalt lõplikust Sakarā ar R32 aukstumaģenta daudzumu un atkarībā no jahutusvahendi täitekogusest tuleb arvestada...
Page 21 R 3 2 Polski Русский Obieg czynnika chłodniczego R32 Контур хладагента R32 Montaż jednostki i przewodów rurowych czynnika Установка блока и трубопровода хладагента должны chłodniczego powinien spełniać obowiązujące w соответствовать местным и национальным нормам для odniesieniu do niego lokalne i krajowe przepisy. применяемого хладагента. Uwzględniając zastosowanie czynnika chłodniczego R32 i Принимая во внимание использование хладагента R32, łączną ilość zładu w instalacji, niezbędne jest zapewnienie и в зависимости от конечного количества хладагента minimalnej powierzchni podłogi. для зарядки системы, необходимо учитывать минимальную площадь пола для установки. • Jeżeli całkowita ilość czynnika chłodniczego <1,84 kg, przestrzeganie zaleceń dotyczących minimalnej • Если общее количество хладагента для зарядки powierzchni podłogi nie jest konieczne. системы <1,84 кг, то нет необходимости применять дополнительные требования к минимальной • Jeżeli całkowita ilość czynnika chłodniczego ≥1,84 kg, площади пола. istnieją dodatkowe wymagania w tym zakresie, które należy uwzględnić. • Если общее количество хладагента для зарядки системы ≥1,84 кг, то следует проверить...
Page 22 R 3 2 Refrigerant Amount Minimum Area Cantidad de refrigerante Área mínima Quantité de frigorigène Surface minimale Quantità di refrigerante Superficie minima Quantidade de refrigerante Área mínima Mængde af kølemiddel Mindsteareal Hoeveelheid koelmiddel Minimale oppervlakte Mängd kylmedel Minsta yta Ποσότητα ψυκτικού Ελάχιστη...
Page 23 R 3 2 από την κάτω πλευρά της εσωτερικής μονάδας έως το χαμηλότερο σημείο όπου μπορεί να πραγματοποιηθεί η διαρροή ψυκτικού στον εσωτερικό χώρο. • A : Minimum installation area of an Indoor unit for a given refrigerant charge m (kg) • m : Συνολική πλήρωση με ψυκτικό μέσο του συστήματος που μπορεί ελευθερωθεί and considering the installation height h στον εσωτερικό χώρο σε περίπτωση που δεν ανιχνευτεί η διαρροή ψυκτικού μέσου. • h : Installation height of the bottom side of the indoor unit + distance from the indoor • LFL: Χαμηλότερο όριο ευφλεκτότητας για R32, 0,307 kg/m σύμφωνα με το EN 378- unit bottom side to the lowest part for which a refrigerant leak may release to the 1:2016 και ISO 817 indoor area • m : total system refrigerant charge that could be released to the indoor area in case of • A : Минимална площ за монтаж на вътрешно тяло с известно количество хладилен undetected refrigerant leak. заряд m (kg) и съобразно височината на монтажа h • LFL: Lower Flammability Limit for R32, 0,307 kg/m as established by EN 378-1:2016 • h : Височината на монтажа на дъното на вътрешното тяло + разстоянието от дъното and ISO 817 на вътрешното тяло до най-ниската част, от която може да се получи теч на хладилен агент в помещението.
Page 25 R 4 1 0 A English D A N G E R • Check to ensure that the number of below is within 0.44kg/m3. Otherwise it may cause danger situation if the refrigerant in the outdoor unit leaks into the room where this indoor unit is installed. (Total refrigerant quantity per one outdoor unit) ≤0.44kg/m (Volume of the room where this indoor unit is installed) For detail, refer to the Installation Manual for outdoor unit. • Make sure that the refrigerant leakage test should be performed. The refrigerant (Fluorocarbon R410A) for this unit is incombustible, non- toxic and odorless. However if the refrigerant is leaked and is contacted with fire, toxic gas will generate. Also because the fluorocarbon is heavier than air, the floor surface will be filled with it, which could cause suffocation. • Use the specified non-flammable refrigerant (R410A) to the outdoor unit in the refrigerant cycle. Do not charge material other than R410A into the unit such as hydrocarbon refrigerants (propane or etc.), oxygen, flammable gases (acetylene, etc.) or poisonous gases when in- stalling, maintaining and moving. These flammables are extremely dangerous and may cause an explosion, a fire, and injury. Español P E L I G R O • Asegúrese de que la siguiente cifra está en un margen de 0,44kg/m . De lo contrario, podría darse una situación de peligro si se produce una fuga del refrigerante de la unidad exterior en la habitación en la que está instalada la unidad interior. (Cantidad total de refrigerante por unidad exterior) ≤0,44kg/m (Volumen de la estancia en la que está instalada la unidad interior) Para obtener más detalles al respecto, consulte el manual de instalación de la unidad exterior.
Page 26 R 4 1 0 A Italiano P E R I C O L O • Accertarsi che il valore risultante dall’operazione sotto riportata sia inferiore o uguale a 0,44 kg/m . in caso contrario potrebbero verificarsi situazioni di pericolo se il refrigerante contenuto nell’unità esterna fuoriuscisse nel locale in cui è installata l’unità interna. (Quantità totale di refrigerante per un’unità esterna) ≤0,44kg/m (Dimensioni del locale in cui questa unità interna è installata) Per informazioni dettagliate, consultare il Manuale di installazione dell’unità esterna. • Accertarsi che sia stata svolta la prova di tenuta idraulica del refrigerante. Il refrigerante (fluorocarburo R410A) contenuto in questa unità non è infiammabile, non è tossico ed è inodore. Tuttavia, se sono presenti perdite di refrigerante e questo entra in contatto con fuoco, si genererà gas tossico. Anche perché il fluorocarburo è più pesante dell’aria, la superficie del pavimento si riempirebbe di esso, e ciò potrebbe provocare soffocamento. • Usare il refrigerante non infiammabile specificato (R410A) per l’unità esterna nel ciclo di refrigerazione. Non immettere materiali di- versi dall’R410A nell’unità come refrigeranti idrocarburi (propano, ecc.), ossigeno, gas infiammabili (acetilene, ecc.) o nocivi durante l’installazione, la manutenzione e la movimentazione. Questi prodotti infiammabili sono estremamente pericolosi e potrebbero causare esplosioni, incendi e lesioni.
Page 27 R 4 1 0 A Svenska FA R A • Kontrollera och se till att numret på följande ligger inom 0,44 kg/m3. Om utomhusenhetens kylmedel läcker in i rummet där inomhusen- heten är installerad kan en farlig situation uppstå. (Total mängd kylmedel per utomhusenhet) ≤0,44kg/m (Volym på rummet där den här inomhusenheten är installerad) Se utomhusenhetens installationshandbok för detaljerade anvisningar. • Försäkra att ett läckagetest av kylmedium utförs. Enhetens kylmedel (flourkolgas R410A) är obrännbart, ogiftigt och luktfritt. Om kyl- medium läcker ut och kommer i kontakt med eld så kan emellertid giftig gas att bildas. Eftersom flourkolgas är tyngre än luft, fyller den golvytan, vilket även kan leda till kvävning. • Använd det specificerade icke brännbara kylmedlet (R410A) för utomhusenhetens kylmediecykel. Fyll inte enheten med något annat medel än R410A som exempelvis kylmedel som innehåller kolväte ( propan etc.), syra, brandfarliga gaser (acetylen, etc.) eller giftiga gaser under installation, underhåll eller flyttning. Dessa gastyper är mycket farliga och kan orsaka explosion, brand eller skada.
Page 28 R 4 1 0 A • Použijte specifikované nehořlavé chladivo (R410A) na venkovní jednotku v chladicím cyklu. Nevkládejte do zařízení jiný ma- teriál než R410A, jako jsou například chladicí kapaliny (propan nebo jiné), kyslík, hořlavé plyny (acetylen atd.) Nebo jedovaté plyny při instalaci, údržbě a pohybu. Tyto hořlaviny jsou extrémně nebezpečné a mohou způsobit výbuch, požár a zranění. Eesti O H T • Kontrollige, et all olev arv on kuni 0,44kg/m3. Vastasel korral võib tekkida ohuolukord, kui väliseadmest lekib jahutusvede- likku ruumi, kuhu see siseseade on paigaldatud. (Kogu jahutusvedelikukogus ühe väliseadme kohta) ≤0,44kg/m (Siseseadme paigaldusruumi maht) Vaadake täpsemalt järele väliseadme paigaldusjuhendist. • Veenduge, et jahutusvedelikulekke test on kindlasti tehtud. Selle seadme jahutusvedelik (fluorosüsivesinik R410A) on tule- kindel, mittetoksiline ja lõhnatu. Kui jahutusvedelikku lekib ja see puutub kokku tulega, võib siiski tekkida toksiline gaas. Ka seetõttu, et fluorosüsivesinik on raskem kui õhk, laotub see üle kogu põrandapinna ja võib põhjustada lämbumist. • Kasutage jahutussüsteemis väliseadmete spetsiaalset mittesüttivat jahutusvedelikku (R410A). Ärge laske paigaldam- ise, hooldustööde ja liigutamise ajal seadmesse muud materjali kui R410A, näiteks süsivesinime baasil jahutusvedelikke (propaani vms), hapnikku, tuleohtlikke gaase (atsetüleen vms) või mürgiseid gaase. Need tuleohtlikud ained on äärmiselt ohtlikud ja võivad põhjustada plahvatust, tulekahju ja vigastusi. Magyar V E S Z É LY •...
Page 29 R 4 1 0 A • Įsitikinkite, kad atliktas aušinimo medžiagos nuotėkio patikrinimas. Šio elemento aušinimo medžiaga (Anglies fluoridas R410A) yra nedegi, netoksiška ir bekvapė. Tačiau aušinimo medžiagai pratekėjus ir susijungus su ugnimi, susidaro nuodin- gos dujos. Be to, anglies fluoridas yra sunkesnis už orą, todėl jam užpildžius grindų paviršių, gali sukelti uždusimą. • Išorinio elemento aušinimo ciklui naudokite nurodytą nedegią aušinimo medžiagą (R410A). Nepripilkite kitos nei R410A medžiagos, pvz., angliavandenilių aušinimo medžiagų (propano ar pan.), deguonies, degių dujų (acetileno ar pan.) ar nuodingų dujų montuodami, prižiūrėdami ir perkeldami. Šie degieji skysčiai yra labai pavojingi ir gali sukelti sprogimą, gaisrą ir sužeidimus.
Page 31 English Original Version English Original Version Español Versión traducida Български Преведена версия Deutsch Übersetzte Version Čeština Přeložená verze Français Version traduite Eesti Tõlgitud versioon Italiano Versione tradotta Magyar Lefordított változat Português Versão traduzidal Latviešu Tulkotā versija Dansk Oversat version Lietuvių Versta versija Nederlands Vertaalde versie...
Page 32 INDEX INDICE 1 GENERAL INFORMATION 1 INFORMAZIONI GENERALI 2 SAFETY 2 SICUREZZA 3 IMPORTANT NOTICE 3 NOTA IMPORTANTE 4 INDOOR UNIT TYPE LIST 4 DESCRIZIONE DEL SISTEMA 5 AVAILABLE REMOTE CONTROL SWITCH 5 DISPOSITIVO DI CONTROLLO REMOTO DISPONIBILE 6 EFFICIENT USE 6 UTILIZZO EFFICIENTE 7 MAIN PARTS 7 COMPONENTI PRINCIPALI...
Page 33 INNEHÅLLSFÖRTECKNING INDEKS 1 ALLMÄN INFORMATION 1 ÜLDTEAVE 2 SÄKERHET 2 OHUTUS 3 VIKTIG ANMÄRKNING 3 TÄHTIS TEADE 4 SYSTEMÖVERSIKT 4 SÜSTEEMI KIRJELDUS 5 TILLGÄNGLIG FJÄRRKONTROLL 5 SAADAVAL OLEV KAUGJUHTIMISPLOKK 6 EFFEKTIV ANVÄNDNING 6 EFEKTIIVNE KASUTAMINE 7 HUVUDDELAR 7 PEAMISED OSAD 8 LUFTFLÖDETS RIKTNING 8 ÕHUVOO SUUND 9 NÖDDRIFT...
Page 34 SPIS TREŚCI ОГЛАВЛЕНИЕ 1 INFORMACJE OGÓLNE 1 ОБЩАЯ ИНФОРМАЦИЯ 2 BEZPIECZEŃSTWO 2 БЕЗОПАСНОСТЬ 3 WAŻNE INFORMACJE 3 ВАЖНОЕ ЗАМЕЧАНИЕ 4 OPIS INSTALACJI KLIMATYZACYJNEJ 4 ОПИСАНИЕ СИСТЕМЫ 5 DOSTĘPNE ZDALNE STEROWNIKI 5 ДОСТУПНЫЙ ПУЛЬТ ДИСТАНЦИОННОГО УПРАВЛЕНИЯ 6 EFEKTYWNE UŻYTKOWANIE 6 ЭФФЕКТИВНОЕ ИСПОЛЬЗОВАНИЕ 7 GŁÓWNE CZĘŚCI SKŁADOWE 7 ОСНОВНЫЕ...
Page 35 (viii) (iii) (iv) (ix) (vi) (xi) (vii) Indoor unit number 01-02 Alarm Code: Chek MODEL : F .08 AlarmRST I.U. : RCI-3.0FSN3 : ****** Address : ****** O.U. : RAS-3HVRNM2 Sel. OP MODE Entr XXXIII PMML0552 rev.1 - 02/2021 - A10635790A...
Page 36 (xii) (xiii) Exterior contour for indoor unit Right rear side hole for Left rear side hole for pipings and wirings pipings and wirings XXXIV PMML0552 rev.1 - 02/2021 - A10635790A...
Page 37 (xiv) Exterior contour for indoor unit Left rear side hole for Right rear side hole for pipings and wirings pipings and wirings (xv) Min. Min. Right rear side hole Left rear side hole for Exterior contour for indoor unit for pipings and pipings and wirings wirings (xvi)
Page 39 1.1 GENERAL NOTES No part of this publication may be reproduced, copied, filed Hitachi makes every effort to offer correct, up-to-date or transmitted in any shape or form without the permission of documentation. Despite this, printing errors cannot be controlled Johnson Controls-Hitachi Air Conditioning Spain, S.A.U.
Page 40 Do not install the unit in the following places, as this may lead to conditioning for human beings. For use in other applications, a fire, deformities, rusting or faults: please contact your Hitachi dealer or service contractor. • Places where oil is present (including oil for machinery).
Page 41 Indoor Unit Type Lis 4 INDOOR UNIT TYPE LIST Nominal capacity (HP) Indoor unit type : Available Wall Mounted : Available (Only for Europe Area) Wall Mounted (without expansion valve) LIMITATIONS 0.4HP must be in simultaneous operation with another indoor unit (of 0.4HP or higher capacity). This restrictions does not apply for 0.6HP or higher capacity indoor units.
Page 42 Efficient Use 6 EFFICIENT USE 6.1 EFFICIENT USE OF INDOOR UNIT • Do not leave a window or a door open. The cooling efficiency will be decreased. It may cause dew condensation and dropping dew. The operating efficiency will be decreased. •...
Page 43 MAIN PARTS 7 MAIN PARTS 7.1 RPK-(0.4-4.0)FSR(H)M Indoor unit Air inlet Electrical hazard Louver (It is attached on electrical box cover.) Front panel Flat panel (The air filter is attached inside.) WARNING label Receiver and indication RPK-(0.4-1.5)FSR(H)M) Air outlet Indicator Receiver Indication place for indoor unit model •...
Page 44 AIR FLOW DIRECTION 8 AIR FLOW DIRECTION 8.1 RECOMMENDED AIR FLOW DIRECTION SETTING LCD Indication 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 Step Auto Swing Model COOL, FAN and DRY HEAT RPK-(0.4-1.0)FSR(H)M Step 3 Step 7 RPK-(1.5-4.0)FSR(H)M Step 3...
Page 45 OTHER INDICATIONS 10 OTHER INDICATIONS 10.1 IN NORMAL CONDITION 1 Defrost However, the operation continues with turning ON the “ ” indicator (yellow), and the unit is stopped after the • Defrost operation: the “ ” indicator (yellow) is turned ON defrost operation is finished.
Page 46 NAME OF PARTS 11 NAME OF PARTS RPK-(0.4-1.0)FSRM RPK-(2.0-4.0)FSRM (viii) Part name Remark Part name Remark Fan motor Fan motor Heat exchanger Heat exchanger Distributor Distributor Strainer Strainer Expansion valve controlled by Expansion valve controlled by microcontroller microcontroller Electrical control box Electrical control box Refrigerant gas pipe connection...
Page 47 BEFORE INSTALLATION 12 BEFORE INSTALLATION 12.1 COMBINATION OF OUTDOOR UNIT AND INDOOR UNIT The combination capacity of indoor unit against the outdoor unit outdoor unit to be satisfied the combination unit number and the is selected by the outdoor unit capacity. Refer to the installation combination unit capacity.
Page 48 Indoor Unit Insallation Horizontal air flow 13.2 INITIAL CHECK • Install the indoor unit with a proper clearance around it for operation, maintenance working space and safety. Unit: mm Min. Vertical air flow Obstacle Floor 0.4-1.5 1000 2300 2.0-4.0 1000 2300 •...
Page 49 Indoor Unit Insallation 13.3 INSTALLATION Suspension bracket The dimensions of the suspension bracket (factory-supplied accessory) and the unit installation are indicated in following figures. RPK-(0.4-1.0)FSR(H)M (xiii) RPK-1.5FSR(H)M (xiv) RPK-(2.0-4.0)FSRM (xv) N O T E Hole for pipings and wirings (*): For RPK-(0.4-1.5)FSRHM It is recommended to connect the piping at the right rear side of the body to avoid the sound from the refrigerant Drain piping...
Page 50 Indoor Unit Insallation 13.3.3 Mounting indoor unit on concrete wall or C A U T I O N concrete block wall Check to ensure that the unit is completely hooked onto the suspension bracket. If not, it may cause vibration of indoor unit. Additionally, the indoor •...
Page 51 Indoor Unit Insallation 13.3.6 Position of piping connection RPK-(2.0-4.0)FSRM 1 Removing flat panel Piping direction for the indoor unit. Four directions of piping connection to the indoor unit can be performed; to the rear a. Hold both sides of flat panel and open it fully. (xvi) side, the bottom side, the right side and the left side of the unit.
Page 52 Indoor Unit Insallation 13.3.6.2 Piping installation For the rear side, the right side or the bottom side installation For the pipe installation embedded in the wall In case that the pipe is connected to the rear side, or toward 0.4 to 1.5 HP right side or bottom side, rebend the refrigerant piping as shown in the following figures.
Page 53 Refrigerant Piping Work For bottom side piping For installing securing plate (only 2.0 to 4.0 HP) Bend the pipe, place it in the bottom space on the rear side of the unit and secure the pipe to the securing plate with band (field-supplied).
Page 54 Refrigerant Piping Work 14.1 PIPING MATERIALS 1 The tolerance of refrigerant piping length differs depending 3 Prepare field-supplied copper pipes. on the combination with the outdoor unit. The details shall be 4 Select clean copper pipes. Make sure there is no dust and referred to “Installation and Operation Manual ”...
Page 55 Drain piping connection and fix it by tape as shown in the figure below: Required tightening torque (JIS B8607) Thermal insulation pipe Pipe size Tightening torque (Accessory) Ø6.35 (1/4) 14 - 18 (N-m) Ø9.52 (3/8) 34 - 42 (N-m) Ø12.7 (1/2) 49 - 61 (N-m) Ø15.88 (5/8) 68 - 82 (N-m)
Page 56 ELECTRICAL WIRING 2 When the left side drain piping connection is performed, Create down-slope remove the cap of left side drain pipe, and then attach this Wrap the vinyl tape cap to the right side drain pipe in order to change drain piping connection from right side to left side.
Page 57 ELECTRICAL WIRING C A U T I O N • The control cable between the indoor unit and the outdoor unit does not have any polarity. Do not apply an excessively high voltage to the • Wrap the accessory packing around the wires, and plug the wiring cable (Rated Voltage 5V).
Page 58 It must be a shielded twisted pair cable (≥0.75mm2) Model 61000- 3-2 Ssc "xx" with a total H-Link length <1000m. RPK-0.4FSRM 7 Control cable: connect the both ends of shielded twisted pair RPK-0.4FSRHM cable to the earth as shown.
Page 59 ELECTRICAL WIRING C A U T I O N • Separate the power supply wiring from the terminal block for controller Screw and communication cables (TB2). • Do not connect the main power source cables to the control line (Terminals A, B, 1 and 2 of TB2). If connected, the printed circuit board (PCB) will be broken.
Page 60 ELECTRICAL WIRING Example of wiring connection combinations for individual operation 400V / 50Hz 230V / 50 Hz *1, *2 Remote control Remote control Remote control Remote control ELB + CB ELB + CB switch (Option) switch (Option) switch (Option) switch (Option) Main switch Main Indoor unit number 1...
Page 61 ELECTRICAL WIRING Example of wiring connection Example of wiring connection Heat pump system Heat recovery system Outdoor Outdoor unit unit Outdoor unit Outdoor unit power source power source Main Main CH unit switch switch Indoor Indoor Indoor unit unit unit Indoor unit Indoor Indoor...
Page 62 ELECTRICAL WIRING 3 Securely fix the extension cable (accessory of the optional expansion valve kit) along the refrigerant pipe with tape. At this time, the refrigerant pipe should be positioned between Cables for expansion valve Kit, remote control switch and the power source cable and cables for expansion valve kit, transmission remote control switch and transmission in order to prevent...
Page 63 Tes Run 5 RSW1 & DSW5 (Refrigerant cycle number setting). Setting is required. Setting positions before shipment are all OFF. Refrigerant cycle number setting DSW5 (Tens digit) RSW1 (Units digit) Ex.) Set at number 5 cycle DSW5 Setting Set by inserting position slotted screwdriver into the groove.
Page 64 MAINTENANCE 17.1 BEFORE TEST RUN Recheck that there is not any problems to the installation, and label on the rear side of the service cover. Then, perform do not perform the test run until all the following checking points the reconnection work correctly with turning OFF the power have been cleared.
Page 65 MAINTENANCE 2 Attaching flat panel • Press “ ” (menu). Insert completely the left and right arm shafts of flat panel Select “Reset filter sign time” from the menu and press “OK”. into the holes along the guide at the front panel. After the flat The confirmation screen will be displayed.
Page 66 TROUBLESHOOTING 18.2 MAINTENANCE BEGINNING AND ENDING OF USE Beginning of use Ending of use • Remove obstacles for the air inlet grilles of indoor unit and Clean the air filter, the air inlet grille and the flat panel. outdoor unit and the air outlet. •...
Page 67 TROUBLESHOOTING Trouble Checking point Action Check that the operation mode is If the fan mode is selected, switch the operation mode to cooling appropriate. (heating). Check that the set temperature is If not, change the set temperature by pressing “▲” or “▼” by the appropriate.
Page 68 TROUBLESHOOTING 19.2 MAIN ALARM CODES Code Category Content of abnormality Indoor unit Activation of protection device (float switch) Outdoor unit Activation of protection device (high pressure cut) Abnormality between indoor and outdoor Transmission Abnormality between Inverter PCB and outdoor PCB Supply phase Abnormality power source phases Voltage...
