Inner Module Installation

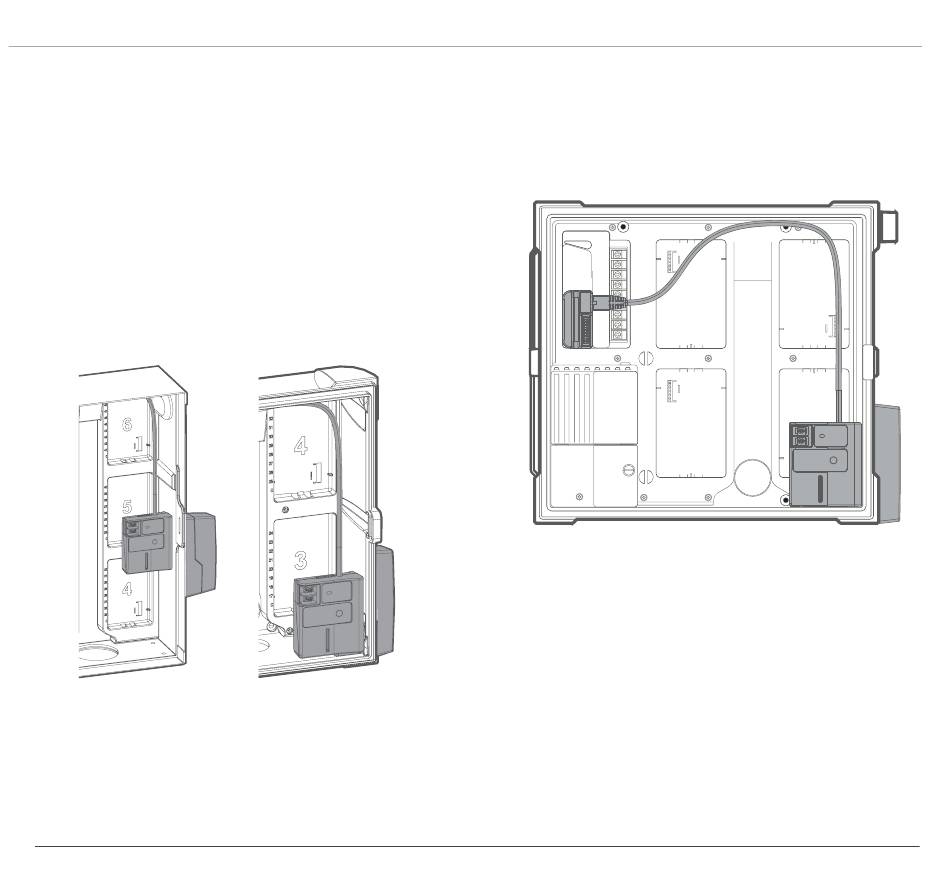

1. With the Antenna Housing and Mounting Bracket
installed, connect the Inner Module.
2. Thread the coaxial cable from the Antenna onto the
SMA connector on the back of the Inner Module.
3. The Inner Module snaps into place on the Mounting
Brackets via magnets.
4. Connect the network cable Cat 5/6 plug
coming from the top of the Inner Module to
the SyncPort Adapter.
Metal Cabinet
6
63.85
Plastic Cabinet
5. Restore power to the controller to initialize the
Cellular Communication Module.
