Antenna Installation

1. For plastic ICC2 Controller installations, remove
the conduit knockout on the lower right side of
the controller cabinet (e.g., Fig.1). For metal
ICC2 Controller installations, remove the rubber
plug on the right side of the enclosure.
2. The Antenna Housing mounts to the exterior
of the controller enclosure. Route the coaxial
cable through the knockout opening and into the
controller enclosure (e.g., Fig.1).
3. To secure the Antenna to the cabinet, install
the Inner Module Mounting Bracket (for plastic
ICC2 Controller installations) over the Antenna
Housing thread body and cable, and hand tighten
the shank nut to hold both parts in place.

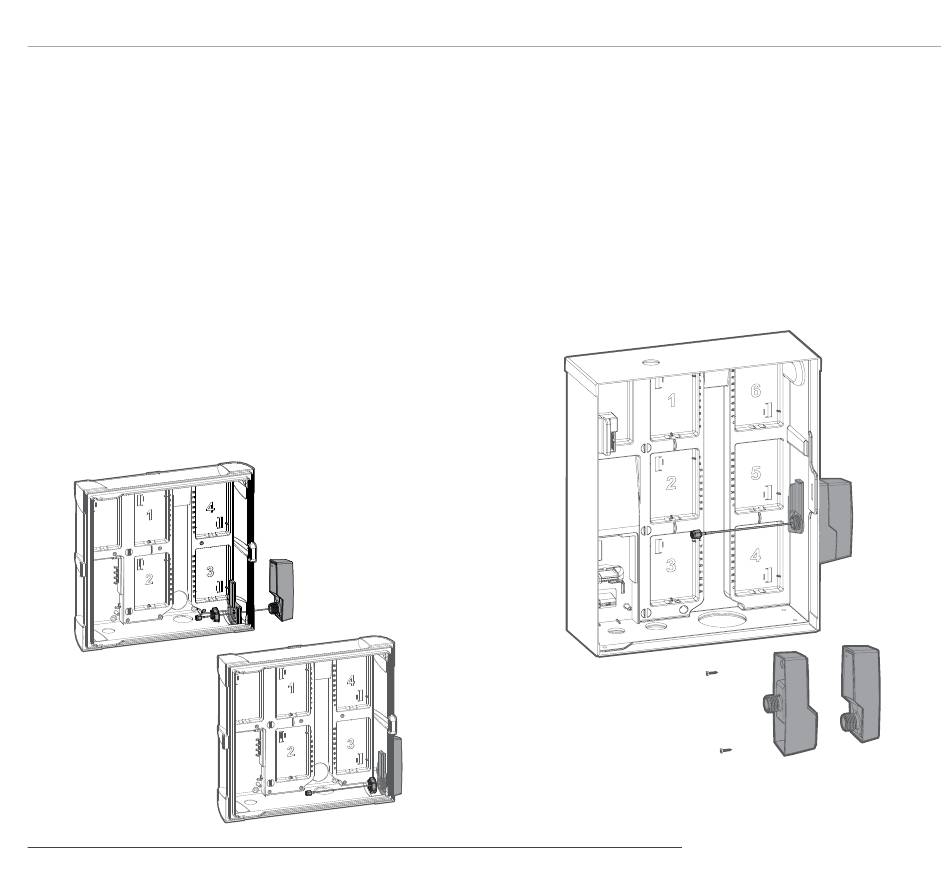

Fig. 1
4. For metal ICC2 Controller installations, combine
the Antenna Housing with the External Antenna
Adapter (component #7). Feed the coaxial cable
through the adapter and screw the housings
together (see Fig. 2).
5. Secure the Antenna Housing to the controller
using the shank nut and Mounting Bracket for
Metal Cabinets.
Fig. 2
