Inner Module

The Inner Module is the main component of the
Cellular Communication Module Kit. It is powered
by the host ICC2 Controller and is installed securely
inside the controller enclosure. The magnetic
mounting bracket allows for quick installation and
removal. The Inner Module connects to an exterior-
mounted cellular antenna via SMA connection.
It also houses the SIM card required for data
activation and provides two screw terminals for a
flow sensor input.
SyncPort Adapter Installation
1. Turn off AC power to the controller.
2. Disconnect the facepack ribbon cable from
the Power Module in the upper left corner
of the controller.
3. Install the SyncPort Adapter onto the Power
Module plug.
4. Plug the facepack ribbon cable into the
SyncPort Adapter.
The Bluetooth word mark and logos are registered trademarks
®
owned by Bluetooth SIG Inc. and any use of such marks by
Hunter Industries is under license.
4

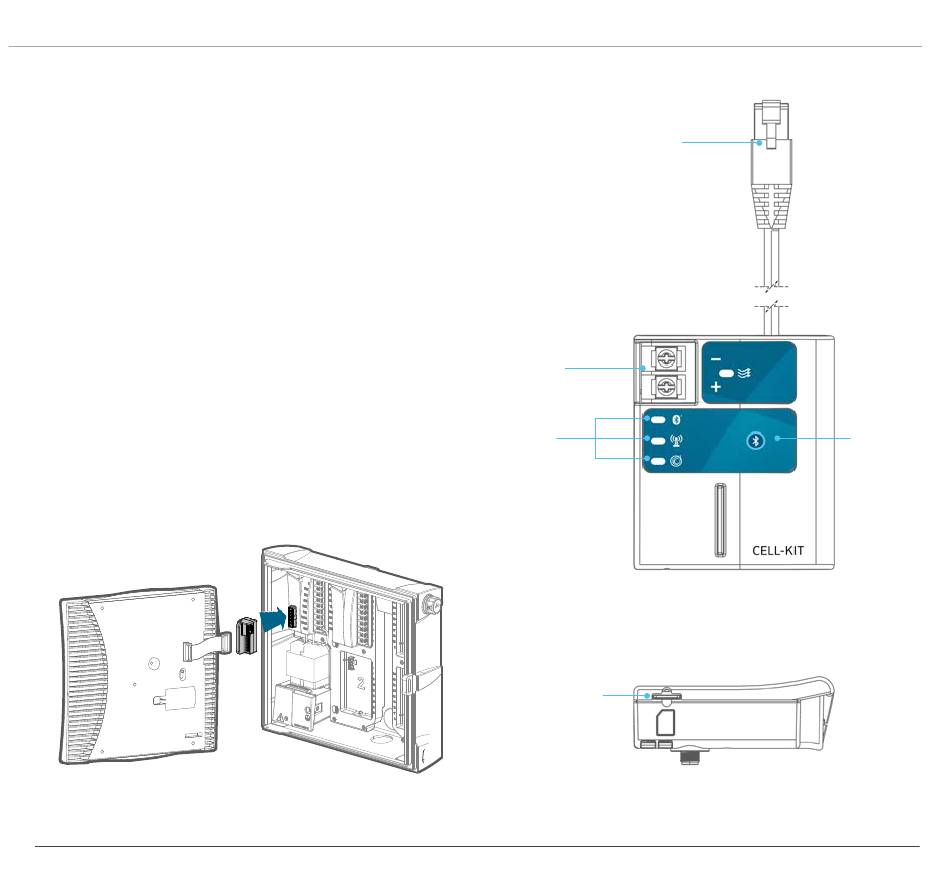

➊
Network Cable
②
Flow Sensor
Input
➌
Status LEDs
(Bluetooth ,
®
Cellular, Cloud)
⑤
SIM Card
Receptacle
➍
Bluetooth
Pairing
Button
