Components; Kit Contents - Hunter CELL-KIT Guide D'installation

Kit Contents

The Cellular Communication Module includes all
necessary hardware for plastic, metal, and pedestal
ICC2 Controller installations.

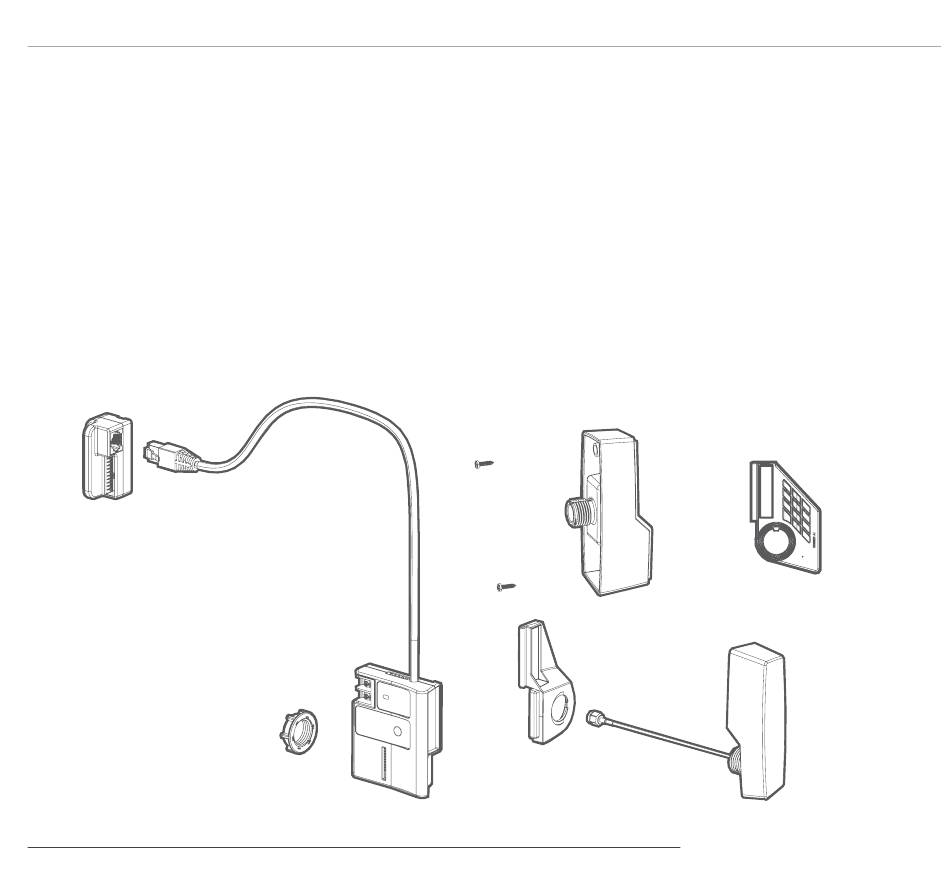

1. SyncPort Adapter
2. Inner Module (SIM card included for activation in
North America)
3. Inner Module Mounting Bracket for Plastic
ICC2 Cabinets
4. Shank Nut
5. Inner Module Mounting Bracket for Metal
ICC2 Cabinets
6. Screws (M2.6 x 12 mm; qty. 2)
7. External Antenna Adapter for Metal ICC2 Cabinets
8. Antenna Housing
