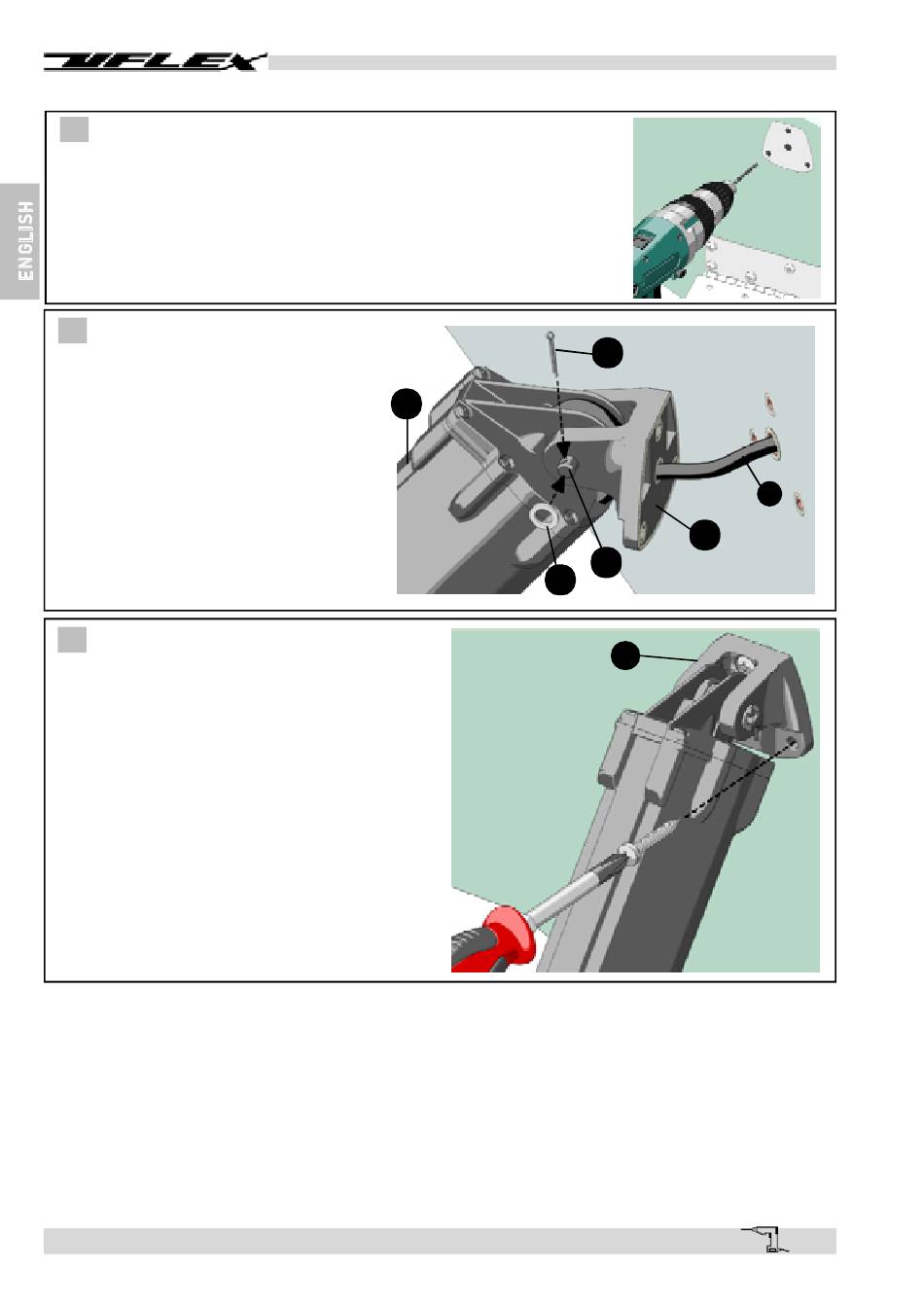

9 Make three Ø 5.5 mm (0.22") holes deep at least 25 mm (0.98") to fix
bracket (G1) and Ø 10mm (0.39") (through) central hole to allow the
passage of the power cable.
10 Insert the upper bracket (G1) on the
actuator (A1) by using the pin (G2), the
washer (G4) and the split pin (G3)
supplied, by paying attention to pass
the power cable (1) through the central
bracket.
Insert the power cable (1) into the
transom hole. Place the bracket as close
as possible to the transom and seal the
cable passage hole, the rear part of the
bracket and the preholes of the fixing
screws using sealant 3M 5200 as
explained in the product instructions.
11 Fix the upper bracket (3) by means of the
supplied screws.
Wait for the sealant 3M 5200 to dry as explained in
the product instructions (generally 24-48 hours).
page 14
of 83 -
ELECTROMECHANICAL TRIM TABS
Installation and maintenance manual
A 1
G 4
G 3
1
G 1
G 2
G 1
