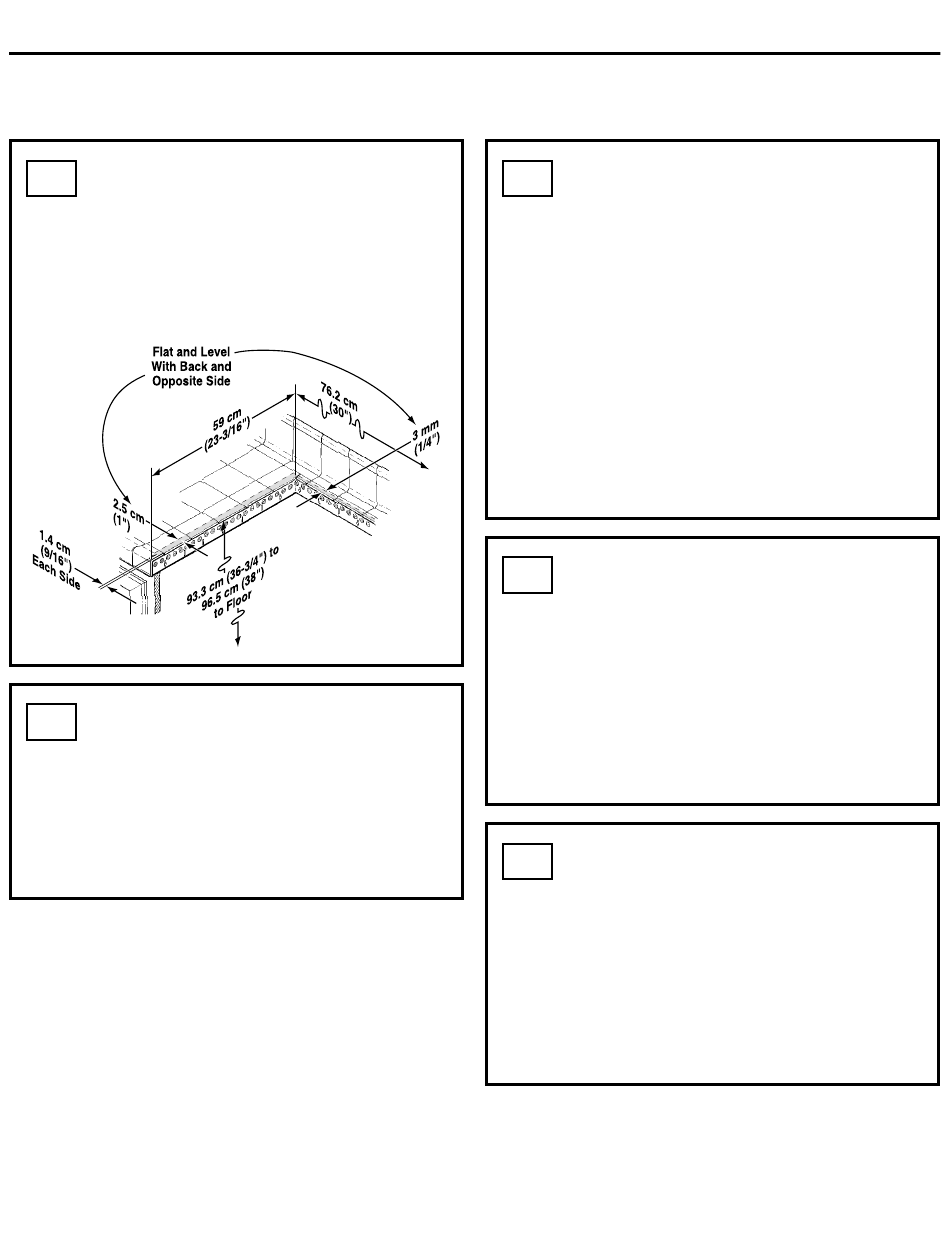

Installation Instructions
Alternate Construction
Countertops Higher Than
AB
92.7 cm (36-1/2")
If countertop height is between 92.7 cm
(36-1/2") and 96.5 cm (38"), a lower trim kit
(JXS56XX) is recommended. Refer to the kit
instructions for installation details.
For Non-Built-In Installation
AC
(End of Cabinet Location)
When installing the range at the end of
a cabinet section which will expose the
unfinished side of the range, use Body Side
Kit (JXS76XX). Refer to the kit instructions
for installation details.
cont.
Island Installation
AD
Attach the Anti-Tip bracket per instructions
in section C, making sure that the rear of
the bracket is 63.5 cm (25") from the front
of the countertop.
Be aware that the screws provided are long
and may penetrate through the back of the
island cabinets. In this event, use shorter
screws (not provided) or the screws provided
should be used in the floor (see Section C
for Wood/Concrete Floor Installation).
Do not use Backguard Kit JXS36XX or
JXS39SS.
For Cabinet Openings
AE
Approximately 77.2 cm
(30-3/8")
If range is installed in cabinet opening
approximately 77.2 cm (30-3/8"), the Vertical
Side Trim Kit (JXS86XX) should be used to
cover gaps between range sides and cabinet.
Refer to the kit instructions for installation
details.
Cabinets Over The Range
AF
Less Than 76.2 cm (30")
If a 76.2 cm (30") clearance between cooking
surface and overhead combustible material or
metal cabinets cannot be maintained, protect
the underside of the cabinets above the
cooktop with not less than 6.3 mm (1/4")
insulating millboard covered with sheet metal
not less than 0.3 mm (0.0122") thick.
