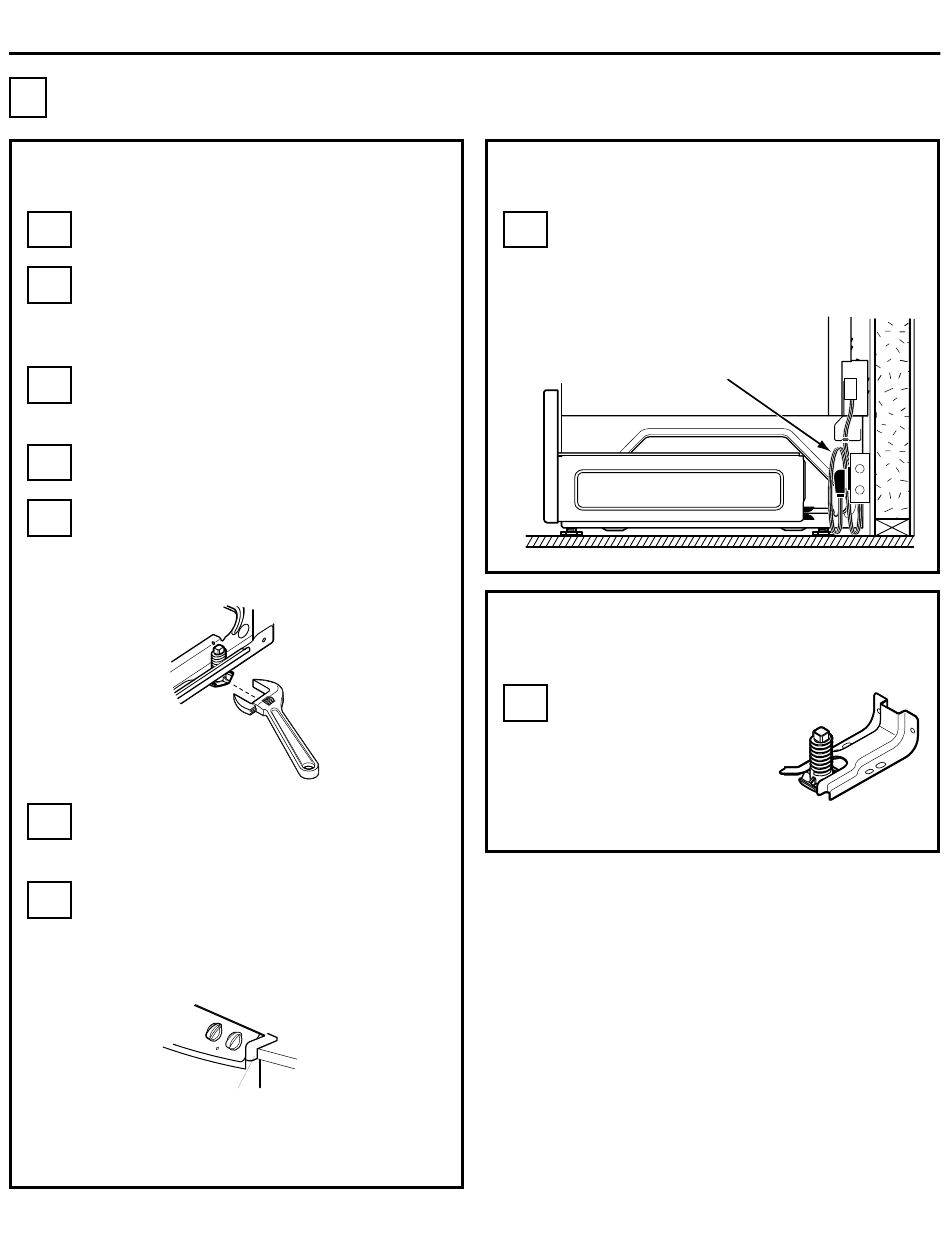

Installation Instructions
Installing The Range
D
Slide Range Into Opening
Position the range in front of the
D1
cabinet opening.
Make sure that the glass which
D2
overhangs the countertop clears the
countertop. If necessary, raise the unit
by lowering the leveling legs.
Push while lifting the range into the
D3
opening, until the range is within 5 cm
(2") of engaging the anti-tip bracket.
Remove the protective trim from the
D4
side of glass (if provided).
Using the adjustable pliers or wrench,
D5
carefully screw in the back leveling leg
until the glass overhang comes to rest
on the countertop.
Adjustable wrench
or pliers
Then carefully screw in the front two
D6
leveling legs (similar to D5) until the
glass overhang touches the countertop.
Carefully push the range into the
D7
opening until the countertop fully
engages the control panel. The back
glass overhang should cover the
cutout opening.
Make sure the edge
of the countertop
fits flush against
the end of the
Front Control Panel
Countertop
Slide Range Into Opening
Plug the range cord into the receptacle.
D8
Locate the cord in the back of the range
in a manner that it will not touch or be
moved by the drawer.
Position range cord so that
there is no interference
with storage drawer
STORAGE DRAWER
Final Check of the Anti-Tip
Bracket
When installation is
D9
complete and the range
is in place, check to
be sure that the rear
leveling leg is fully
inserted into the slot
of the Anti-Tip Bracket.
8
(cont.)
(Continued on following page)
