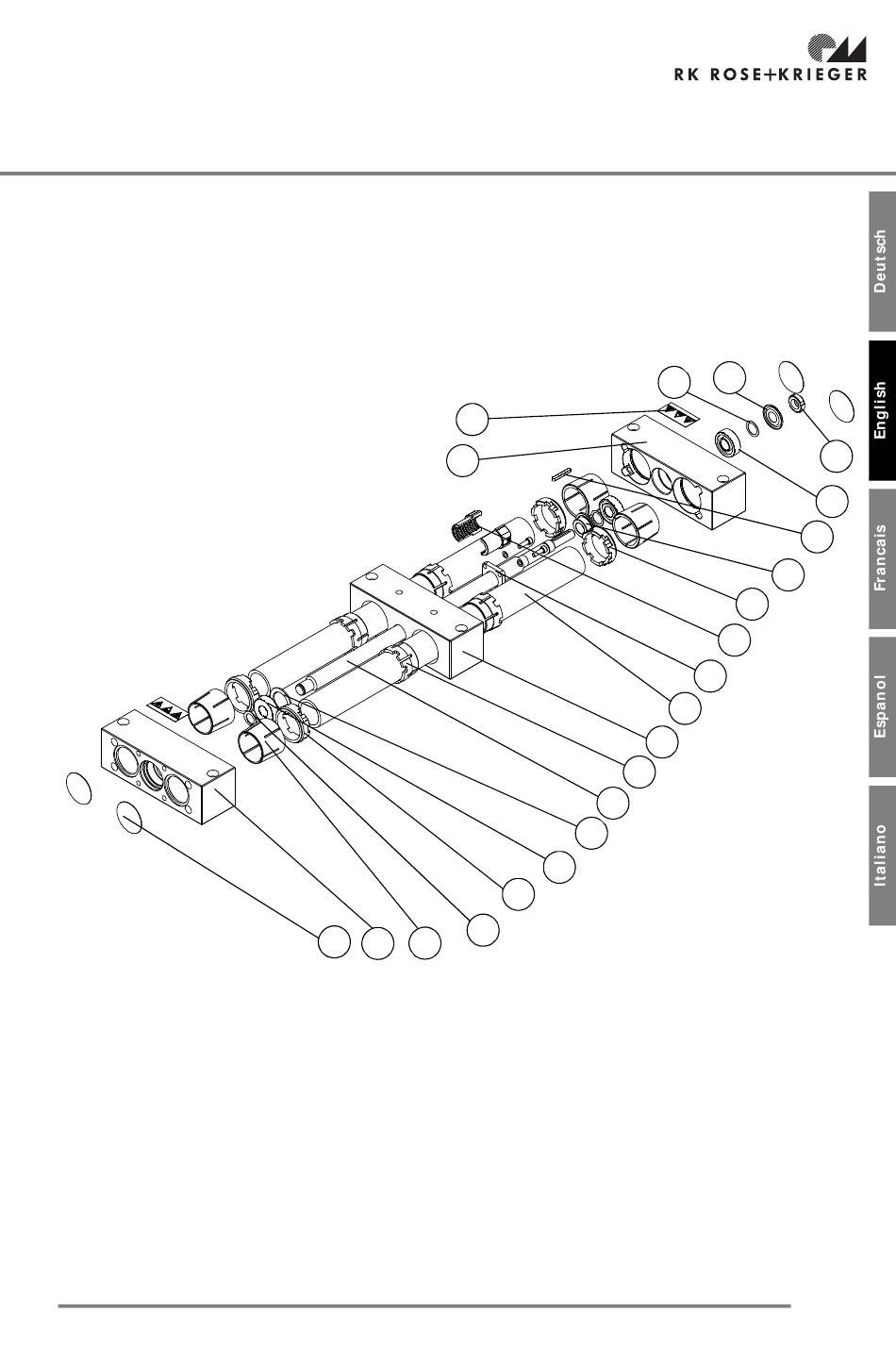

8.2 Exploded view

Take the parts lists, RK's standard component naming and their installation position in the linear
shaft.
Technical variations are possible and depend on the size and version of the linear shaft.

8.2.1 EP-II/EPX-II linear units

1 Cover
2 Floating bearing end element
3 Clamping sleeve
4 Locking ring
5 Compression nut
6 Deep groove ball bearing
7 Locking ring
8 Spindle
9 Sliding bush
10 Guide slides
11 Guide tube
8. Spare parts lists/accessories
18
17
4
1
2 3
12
13
14
15
16
17
18
19
20
21
22
19
11
10
9
8
7
6
5
Cover for the guide nut
Guide nut
Compression nut
Shrink adjustment ring
Feather key
Fixed bearing end element
Warning stickers
Shim
Nilos ring
Angular contact ball bearing
Slotted round nut
20
22
21
16
15
14
13
12
Diagram shows EP-II
