3.0 Handling
Delivery:
Your new pulling device is delivered fully assembled in a
cardboard box. In order to avoid any damage
during transportation, loose parts or parts to be fitted, are
packed separately in the cardboard box.

Unpacking:

• Check the shipping cardboard box for external damage
which may have been caused during transportation.
• Remove all packaging material.
• Take the pulling device carefully out of the box and
check that it is complete.
• Check all parts for surface damage, scratches, cracks,
dents, distortions and other defects.
• The scope of delivery consist usually of the pulling
device: Connecting frame with complete docking
system, display, front light, lithium-ion battery and
charger.

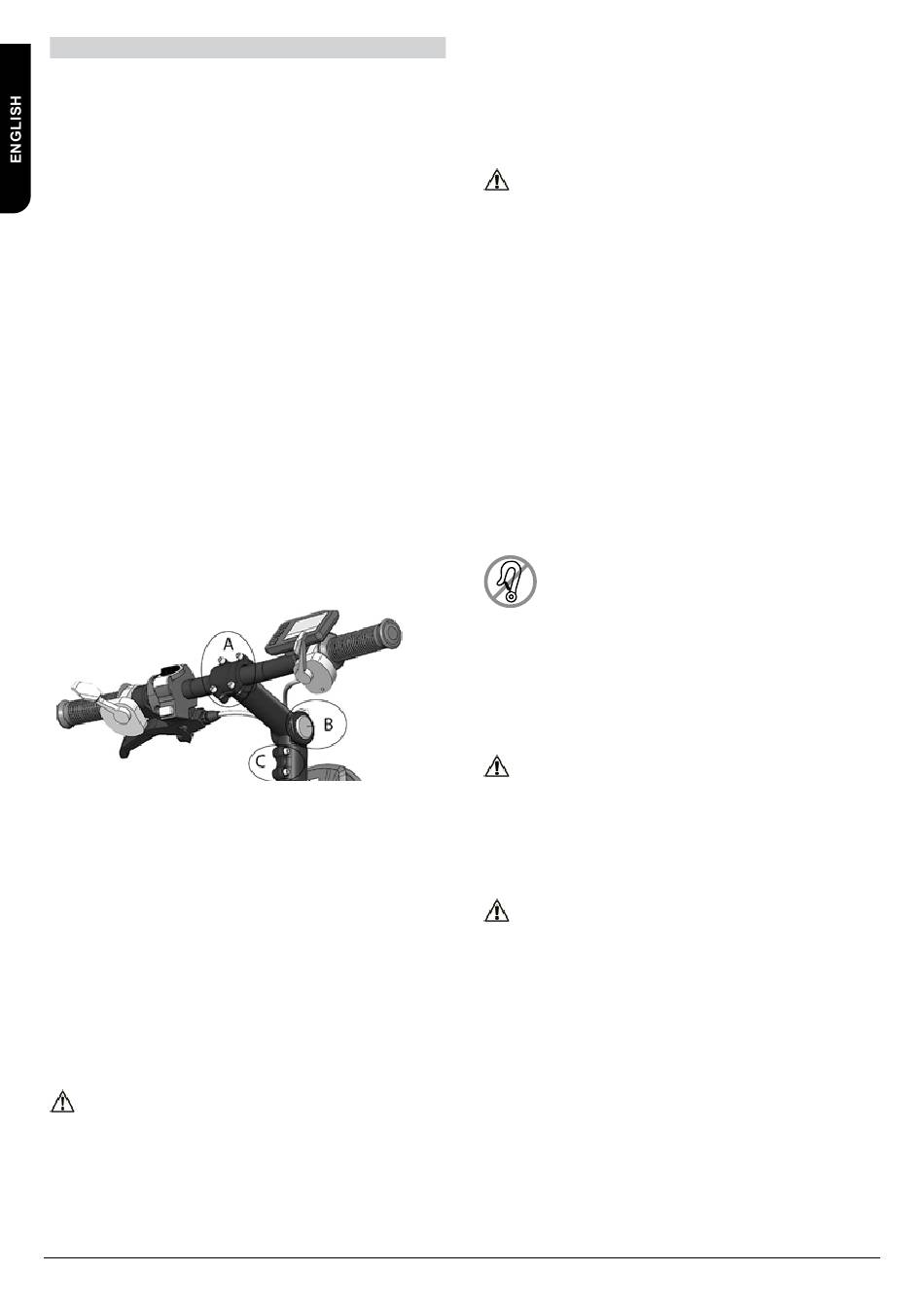

Adjusting the handlebar:

The StreetJet is delivered with the handlebar assembly
loosened to allow adjustment to suit an individual. Ensure
the two bolts on the StreetJet stem clamp (C) are tightened
to 10Nm with a 4mm allen key. Adjust the angle of the
handle bar to your preferred position, then use a 5mm
allen key to tighten the angle adjustment bolt (B) to 15Nm.
The clamp that attaches to the handlebar will need the 4x
bolts (A) tightening with a 4mm allen key to 6Nm each.
This will secure the handle bar assembly ready for use.

Fitting the display:

The display has been specifically programmed for your
pulling device and is delivered with the pulling device.
Fit the display as follows:
• Undo the gripper clamp of the display and position it
between the throttle and stem round the handlebar.
Tighten the clamp screw in order to fix the display.
• Connect the plug of the display to the free plug
connection on the pulling device. The plug is protected
against polarity reversal and can only be plugged in
one way. Make sure that you do not damage the pins in
the plug during installation.
NOTE: Should you find any damage, or if any parts are
missing please let us know immediately.
CAUTION!
• The pulling device may only be used with the delivered
docking system and the appropriate frame clamps for
your wheelchair. The pulling device must be handed
over ready to use from Sunrise Medical or an
authorised Sunrise Medical dealer.
• Before using for the first time, the battery should be
fully charged.
38
NOTE:
• Wherever torque settings are specified, it is strongly
recommended that a torque meter (not included), is
used to verify correct torque specification is achieved.
If no other information is given, the generic torque for
M6 screws is 7 Nm.
CAUTION:
• Some of the screws that are used in manufacture have a
thread lock (blue dot on the threads) and can be used up
to three times, then they must be replaced by new screws
with thread lock. Alternatively, you can put Loctite™ 243.
Apply threadlock to the screws and re-fit them.

Storage:

The pulling device should always be stored in an
environment with low humidity, on an easy to clean
surface at ambient room temperature (+15°C to + 25°C
Transport:
It is not allowed to transport the user in the wheelchair
with the StreetJet docked in a car. When transporting a
combined unit made up of a pulling device and
wheelchair vehicle, the user must transfer onto the
vehicle seat and must not sit on the combined unit. The
combined unit itself (without user) must be tied down
during transportation and secured against slipping.
This label on the product indicates that the
pulling-device is not tested and approved
according to ISO 7176-19. It is therefore not
allowed to transport the user in the wheelchair
with the StreetJet docked in a car.
When transporting a combined unit made up of a pulling
device and wheelchair vehicle, the user must transfer
onto the vehicle seat and must not sit on the combined
unit. The combined unit itself (without user) must be tied
down during transportation and secured.
WARNING!
• Always use a properly secured vehicle seat.
• The product and all its components must be secured
during transport so that they are not damaged (e.g. by
falling over) and do not become any risk to other
people.
CAUTION!
• When loading make sure that the cables are not
caught up, become kinked or otherwise damaged.
• The pulling device may not be used with damaged
cables.

Safety:

• To protect your pulling device against theft and also
against unauthorized use, please use a suitable lock,
such as those designed for bicycles.
• For extra security on the pulling device, please switch
off and remove the battery.
Empulse StreetJet Rev.A
