Quick Guide - Uponor Smatrix Move Guide De Référence Rapide

Quick Guide

N O T E !
This is a quick start guide to serve as a
reminder for experienced installers. We
strongly recommend reading the full
installation and operation manual before
installing the control system.

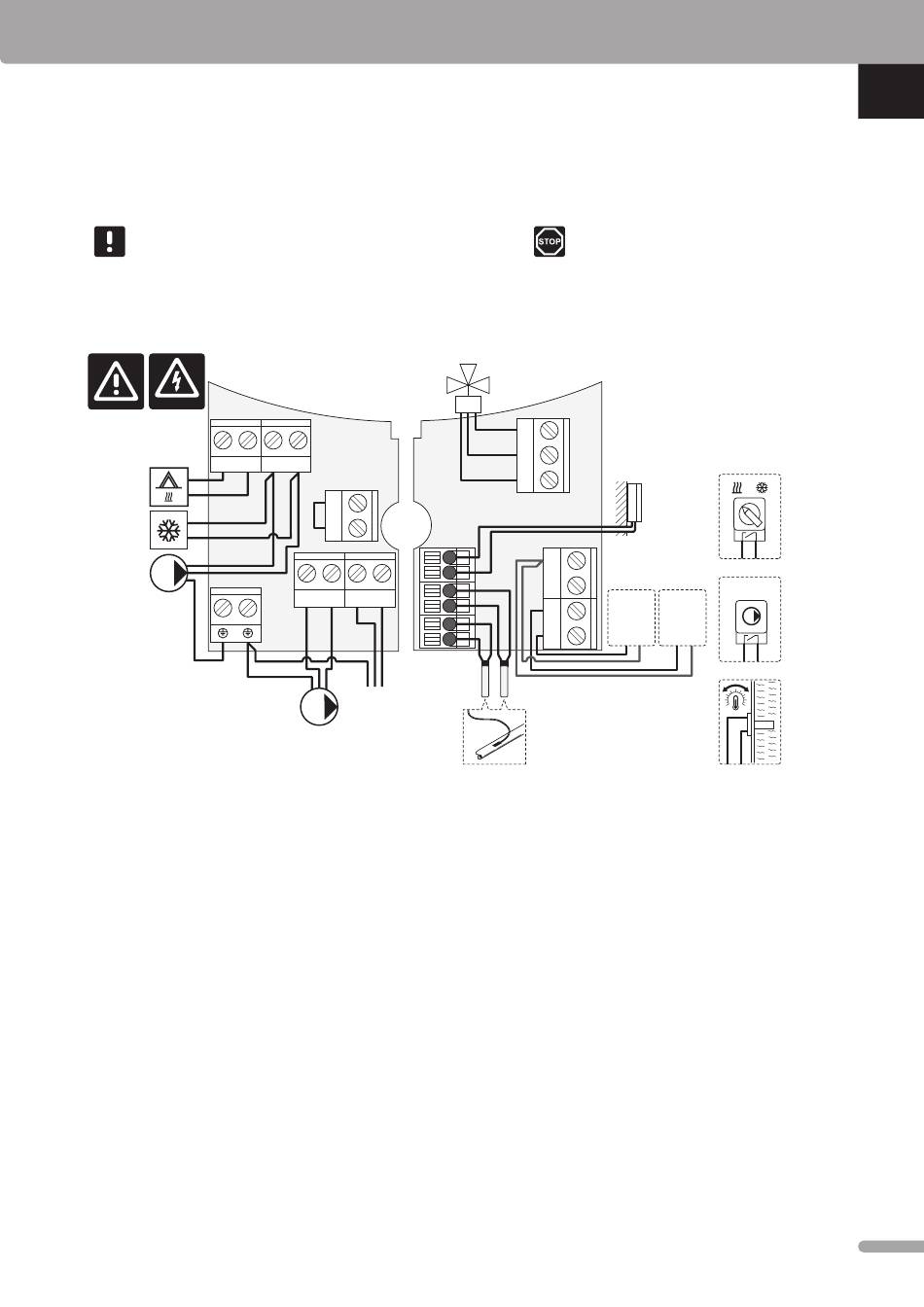

230 V 50 Hz
L N
HEAT
COLD **
PUMP P2 **
*) The outdoor temperature sensor can be connected to either the controller or to a thermostat (requires antenna A-155).
**) Connect either COLD or PUMP P2 (secondary heating/cooling circuit) to the connection terminal.
***) Select one of the inputs (heating/cooling switch, pump control signal, or immersion thermostat) and set parameter 11 – Wired Input 1 selection, or parameter 12 – Wired
Input 2 Selection, accordingly. The heating/cooling option can only be used in systems without a registered wireless thermostat.
****) Optional temperature limiter connection, fitted with a cable bridgre from the factory. Remove the bridge if a temperature limiter is to be used together with PUMP P1.
*****) Optional return sensor. Can only be used, for boost function, in systems without a registered wireless thermostat.
U P O N O R S M AT R I X M O V E · Q U I C K G U I D E
Q U I C K G U I D E
ACTUATOR 230 V
L N
CONTACT
Ther ****
N L N L
WATER IN
POWER
230 V AC
50 Hz
PUMP P1
W !
arning
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
Close
Common
Open
OUTSIDE *
SENSOR
2
4
In2
In1
In1
WATER RETURN *****
In1/In2 ***
In1/In2 ***
In2
In1/In2 **
5
