Installing the Wireless Control Card (cont.)
• Using the supplied double sided tape, attach the control card

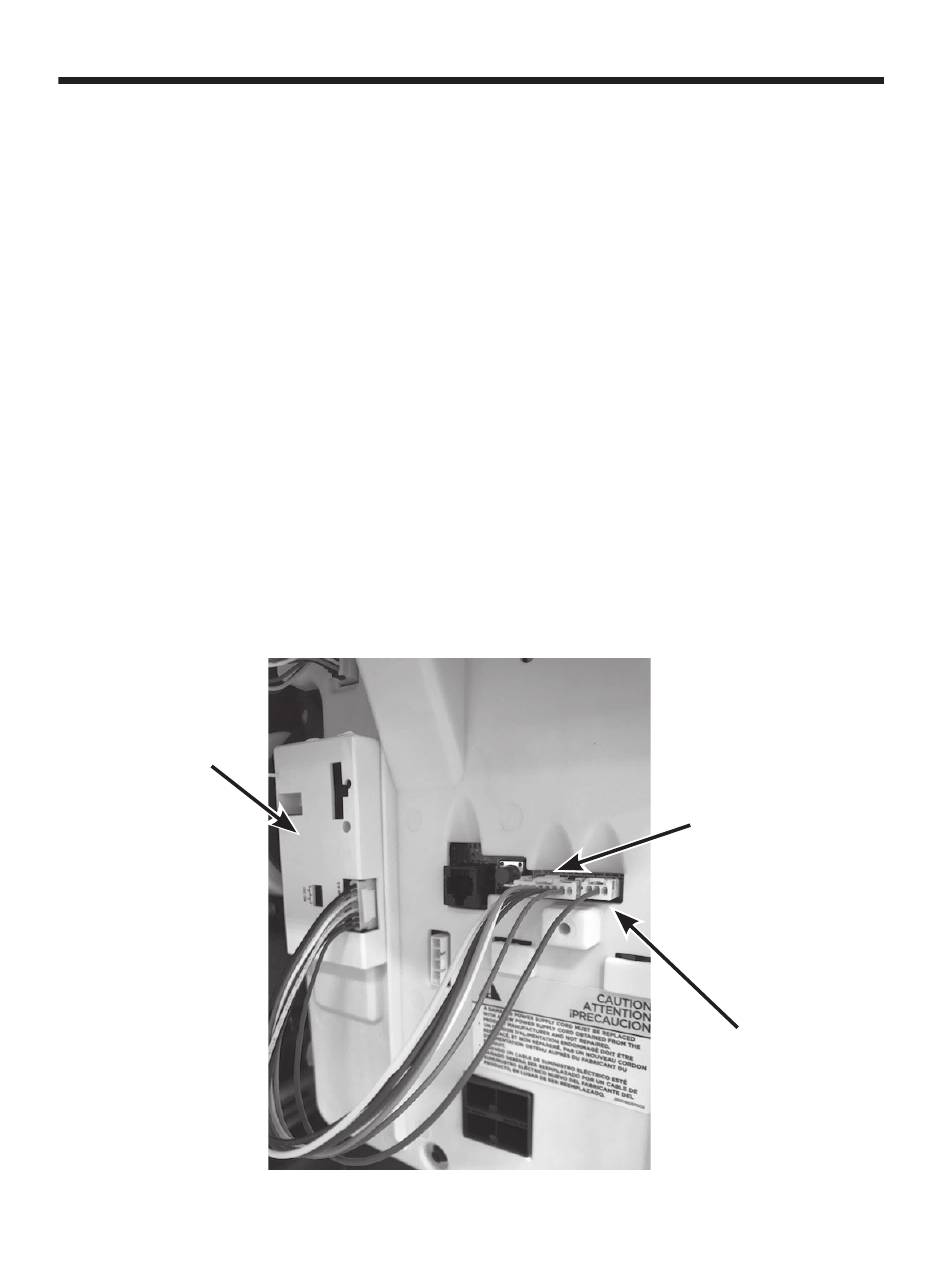

to the Zoneline control box cover. (See Drawing 2)Mount the
control card inside of the hvac unit.
The wireless control card antenna must not be touching any metal
components of the hvac unit.
The wireless control card antenna must face the thermostat on the
wall and be oriented so that any metal parts of the Zoneline do not
obstruct the wireless communication to the thermostat and, in case of
a network installation, to other wireless control cards and the server.
The wireless control card must not be placed in the Zoneline
condensation pan and must be mounted so it cannot fall into the
condensation pan.
• For wired applications, join the common and 24VAC wires with
any code-approved low voltage field supplied connection method.
Control
Card
8
Thermostat Installation
Drawing 2
Remote
Thermostat
Connection
CDC/
Occupancy
