Panel Type Setting; Lock Activation Time Adjustment With Capacitance Discharge; Default Settings; Speaker Volume Adjustment - Urmet note 2 Manuel D'installation

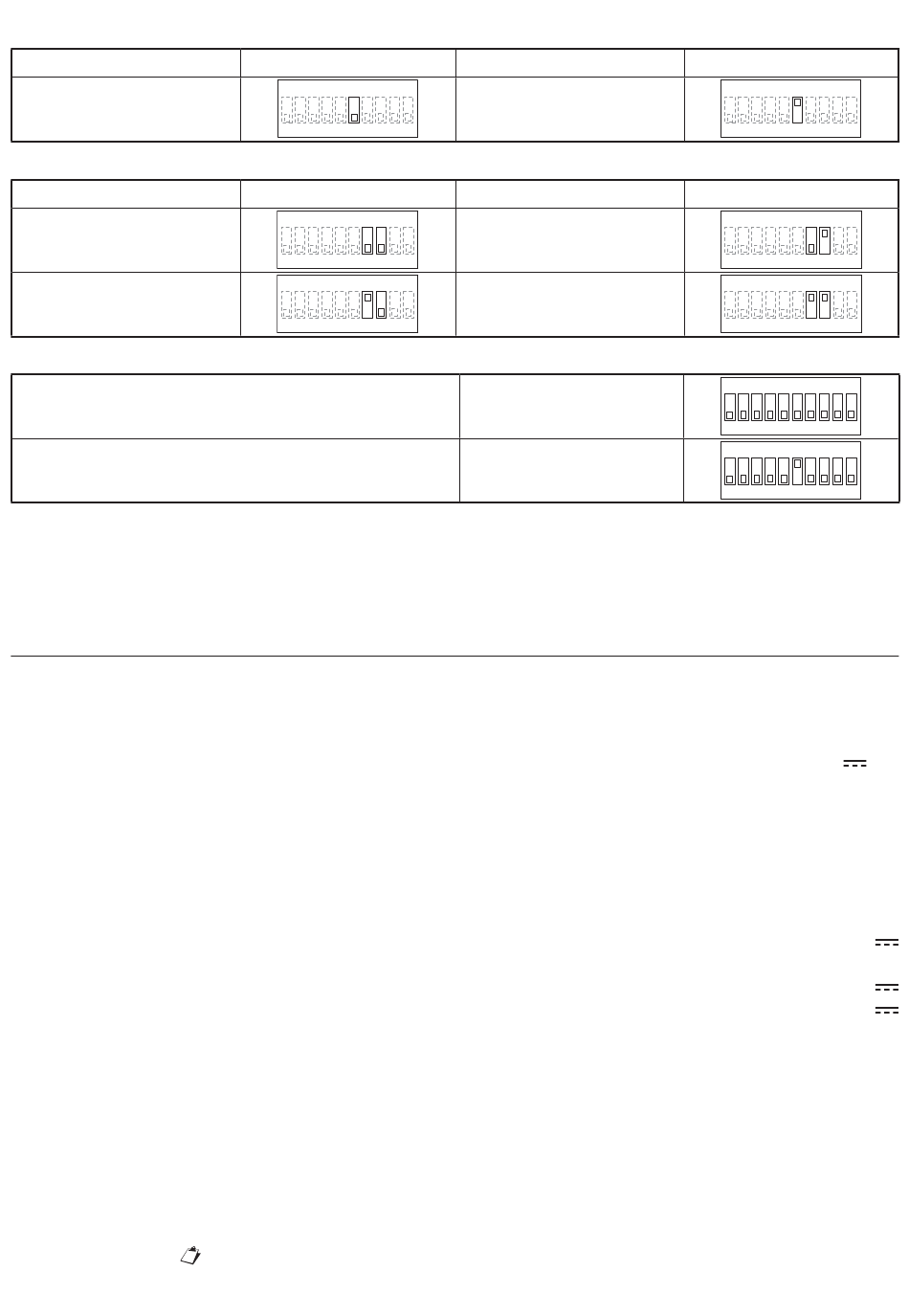

9.4.6 Panel type setting

One-household panel

9.4.7 Lock activation time adjustment with capacitance discharge

0 seconds (300ms pulse)
6 seconds

9.4.8 Default settings

One-household kit ref. 1723/95:
Two-household kit ref. 1723/96:
9.5

SPEAKER VOLUME ADJUSTMENT

Volumes are calibrated by default so not to require adjustments in most cases.
Use a screwdriver to adjust the speaker volume, if required (see item 14 in paragraph 9.1 - DESCRIPTION OF
COMPONENTS).

10 TECHNICAL SPECIFICATIONS

System power supply unit
Power supply in CAT III 4000 V
Power supply: ....................................................................................................................... 110-230 V~ 50-60 Hz
Power: ..................................................................................................................................................... 75 W max
Secondary output: ................................................................................................................................ 50 V
Working power after 1 hour of work: .......................................................................................... Max 5 Wh (18 kJ)
Dimensions (WxHxD): ......................................................................................108 (6 DIN modules) x 90 x 61 mm
Audio video inductor
Dimensions (WxHxD): ........................................................................................36 (2 DIN modules) x 95 x 57 mm
Video door phone
Power voltage: ......................................................................................................................from BUS 37-48 V
Consumption: maximum .......................................................................................................... 280 mA @ 48 V
stand-by (basic confi guration) ............................................................................ 25 mA @ 48 V
Working power: ...................................................................................................................................... max. 16 W
LCD: ................................................................................................................................................... 7" IPS backlit
Resolution: ............................................................................................................................... 1024H x 600V pixel
Viewing angle ...................................................................................................................................................>±80°
Switch-on delay: ......................................................................................................................................... 2 s Max
Transmitting capsule: ............................................................................................................ electret microphone
Receiving capsule: ............................................................................................................................ 45 Ω speaker
External memory medium: ...................................................................standard microSD (recommended 2 GB)
Radio range: • in a 100m² home with perpendicular crossing of main wall or ceiling
• 250m in open range.
of walls or partitions
40
Dip-switch 6 position
ON
1 2 3 4 5 6 7 8
Dip-switch 7-8 position
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
In both cases the range may be reduced by the presence of metallic elements, crossing
Two-household panel
9 10
3 seconds
9 10
9 seconds
9 10
Panel 1
Panel 2
Dip-switch 6 position
ON
1 2 3
Dip-switch 7-8 position
ON
1 2 3
ON
1 2 3
ON
1 2 3
ON
1 2 3
From local transformer 24V~ (+-10%)
4 5 6 7 8 9 10
4 5 6 7 8 9 10
4 5 6 7 8 9 10
4 5 6 7 8 9 10
4 5 6 7 8 9 10
1 A
DS1723-050B
