Owner's Manual
V. Attaching the foot pedals
Foot Pedal
Attach the right and left Foot Pedal (#55R & 55L) onto respective pedal tubing (#4R & 4L). Note that
the foot and pedal tubings are marked with R&L stickers signifying Right and Left. There are bolts (#34)
lock nuts (#36) and washers (#33) on each pedal tubing that the foot pedals will slip into. Don't unscrew
those bolts completely, just loosen them so you can slide the foot pedals into position between pedal
tubing and washers. Tighten the bolts securely using flat wrench and socket.
Note: The foot pedals are positioned properly when the rounded ridge is to the front and in along the
side closest to the main body of the OrbiTrek Pro. If you have installed them opposite of what they
should be, you will not be able to attach the pedal tubings to the crankshaft (#38).
Pedal Tubings
Now it's time to attach the front of the right and left pedal tubing (#4R & 4L) to coupler bars (#5R &
5L). Locate the two sets of bolts: M8 x 50 bolt (#30) and M8 lock nut (#29). Be sure the bolt-head is on
the outside of the machine and the threads of the bolt face inward. Thread the bolt through the holes
in the coupler bars and pedal tubing. Tighten both sides down firmly with the lock nuts, using the
tools provided.
Note: Bushings may fall out in moving Pedal Tubings. Be sure to replace them before attaching to
coupler bar.
55L
33
4L
29
30
31
36
33
36
5L
38
33
7

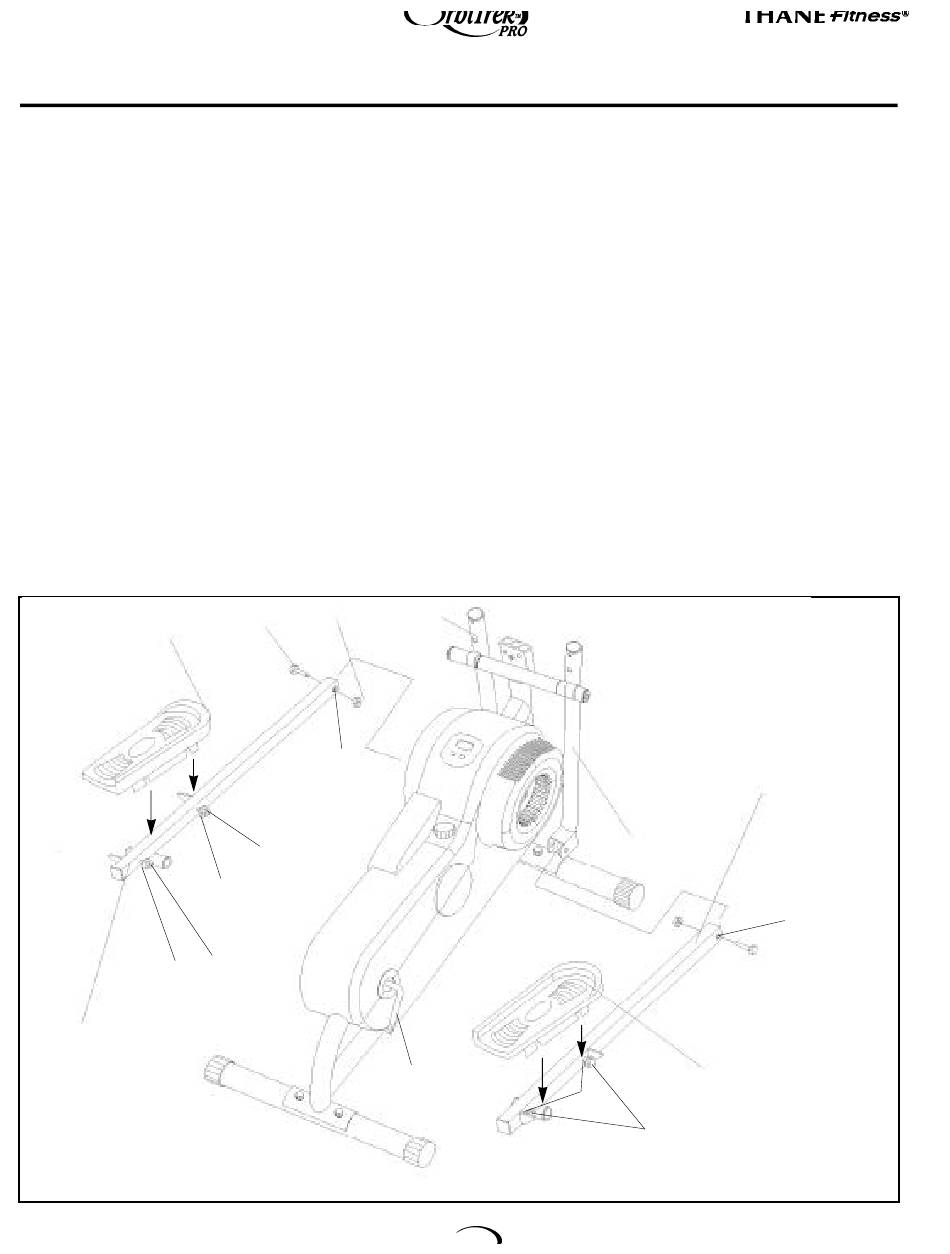

Fig. 4
4R
5R
31
55R
34
