Owner's Manual
III. Attaching the turbo fan
Turbo Fan
Place Turbo Fan (#13) onto the Turbo Axle (#20) with the blade's flat side toward the center of the
machine. The Turbo Fan should "lock into position". You will feel each blade fit snugly when they have
seated properly. Place the m10 washers (#64) and m10 lock nuts (#65) into place on each Turbo Axle
and hand tighten. Using both 17mm sockets provided, tighten both lock nuts down firmly.
Note: The blades can become damaged if, while you are exerting pressure on the lock nuts, your hand
slips off and hits them. Tighten until firm only.
Turbo Fan Covers
Each Turbo Fan Cover (#62) has a small lip on the top and a larger lip on the bottom. Hold the cover
vertically and align the lip with the key on the upper and bottom chain covers and insert into track.
Turn the cover counter clockwise into position with the OrbiTrek Pro logo and vents on the top.
If you have any trouble getting the Turbo Fan Cover to fit into the key, try tilting the cover slightly
so that the upper key and lip fit first and then do the bottom.
10

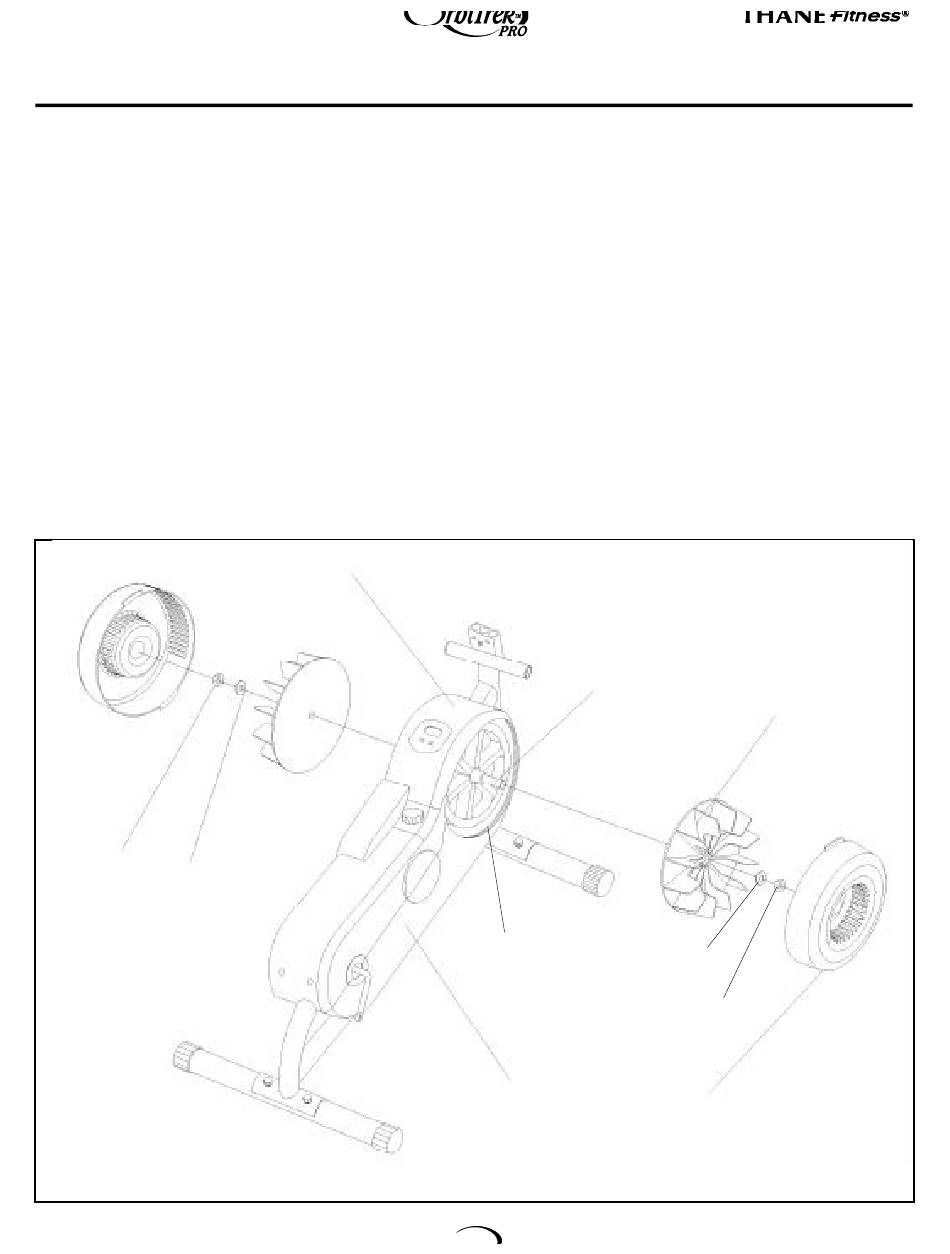

Fig. 2
20
13
65
64
Chain Cover
64
65
51
62
5
