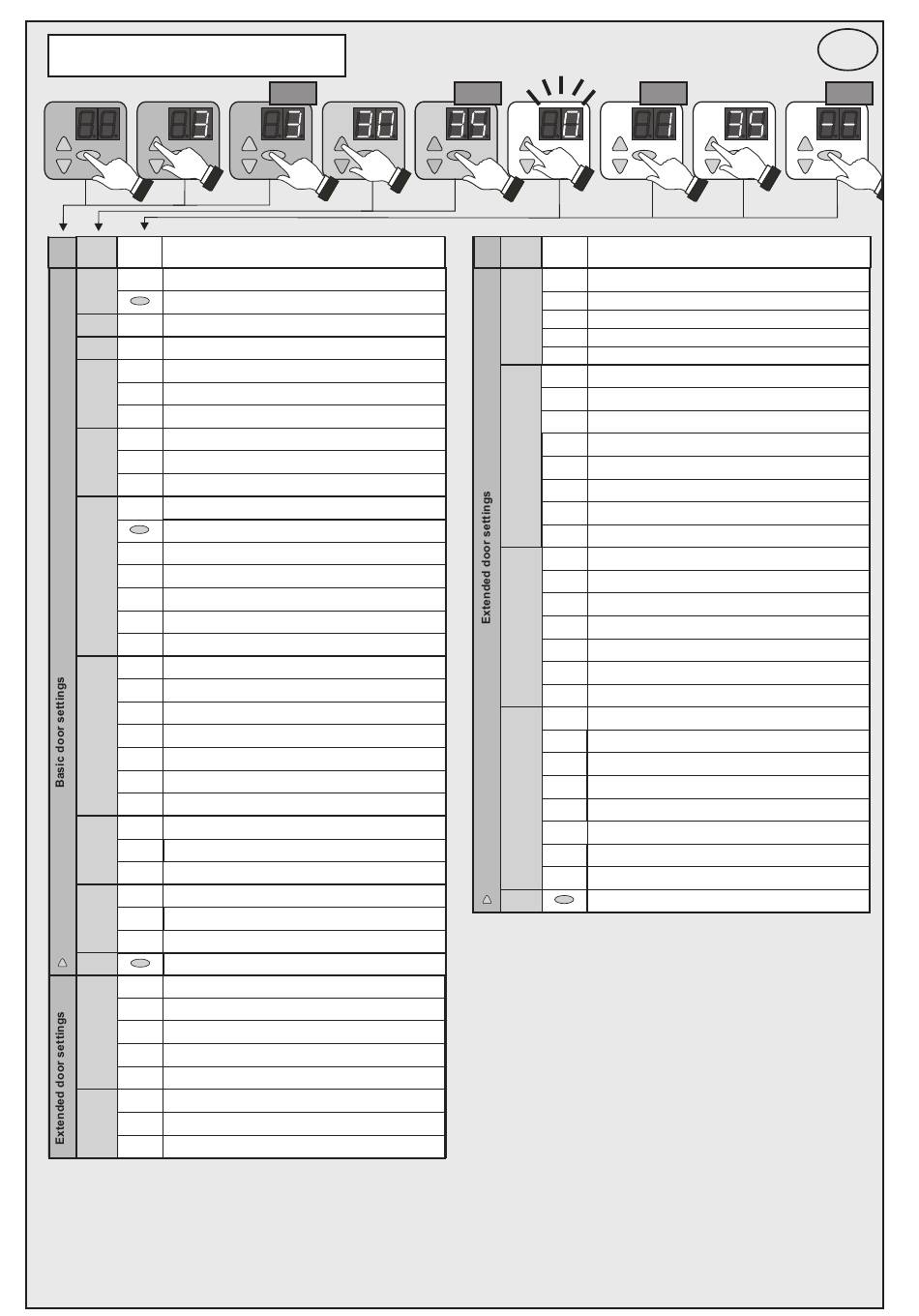

Programming Overview
3-9
Menu-
No.
Entry
Selection
point
3
Setting the door's top end-of-travel position
30
Change of direction (press for 5 sec.)
31
Setting the door's bottom end-of-travel position
32
Setting the door's half-open position
Fine adjustment of top end-of-travel position
50*
33
50 - 0
0... 80mm deeper
50 - 99
0... 80mm higher
50*
Fine adjustment of bottom end-of-travel position
34
50 - 0
0... 80mm deeper
50 - 99
0... 80mm higher
Selecting the closing edge
Measuring value display (press 5 sec.)
0
Optical closing edge OSE
1*
35
Electrical safety edge 8K2
2
Pressure wave edge DW with testing
3
Electric safety edge 8K2 with slack rope switch
Wireless closing edge, RadioBand
4
Selecting the photocell
0*
without photocell
1
2-wire photocell
36
2
4-wire photocell LS5, Reflection photocell
3
Photocell LS2, frame fitted reflection photocell
4
Photocell Ls5, frame fitted reflection photocell
5
Light array with testing
Adjustment pre-limit switch safety edge
25*
37
25 - 0
0... 50mm deeper
25 - 99
0... 100mm higher
Light barrier response
38
0*
Without shortening the hold-open time
Shortening the hold-open time during AR service
1
- -
Exit menu
4
Membrane key function
0
Dead man OPEN / Dead man CLOSE
1
Impulse OPEN / Dead man CLOSE
40
2*
Impulse OPEN / Impulse CLOSE
3
AR - automatic closing
Response of safety edge
41
0*
Full reversing
1
Partial reversing
Menu
30-
37
LS2
Item
1x
Menu-
No.
Entry
Selection
point
Hold-open phase in seconds
4
0*
0 Sek.
1 - 30
1 sec. ... 30 secs. (in 1 sec. increments)
44
31 - 60
35 secs. ... 180 secs. (in 5 secs. increments)
61 - 99
210 secs. ... 22,5 min. (in 30 secs. increments)
Status relay X5
0*
Door closed signal
1
Door open signal
45
2
Door state for A800 traffic lights control
3
2 minutes garage light
4
5 minutes garage light
5
Hand transmitter on / off (menu 62)
6
Wipe impulse ELTACO
Status relay X6
Door closed signal
0
1*
Door open signal
46
2
Door state for A800 traffic lights control
3
Interlock circuit
4 - 14
Warning lamp on close move (0-10 secs. advance warning)
15 - 25
Warning lamp on open and close move (0 - 10 secs.)
Motor starting time
0*
No limit
1
25 min / 35%
2
25 min / 30%
49
3
25 min / 60%
4
25 min / 20%
5
10 min / 35%
6
25 min / 60%
- -
Exit menu
Enter
* Factory defaults
